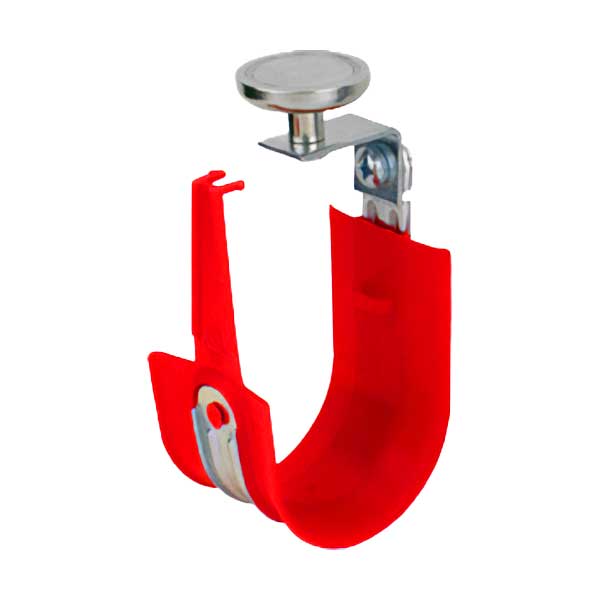

Platinum Tools HPH J-Hook Assembled 90 Degree Angle with MAG420 Pot Magnet | 1" | Red | 1-Piece | HPH16MV-10R-1

The Platinum Tools HPH16MV-10R-1 is a 1-inch red J-hook engineered for secure, drill-free cable management in overhead environments. Its factory-assembled MAG420 rare-earth pot magnet delivers up to 90 lbs of breakaway strength, mounting instantly to steel beams and framing without fasteners. The 90-degree angled bracket features a continuous wide bend radius to protect cables from crimping and signal loss, while an integrated snap-lock closure keeps bundles seated safely without zip ties. Built from heavy-gauge galvanized steel with a high-performance polypropylene saddle, this reusable support is ideal for fire alarm networks, life-safety circuits, and low-voltage data runs. Code-compliant, plenum-rated, and cULus listed.

Features
Heavy-Duty 90° Magnetic Attachment: Factory-assembled with a powerful MAG420 neodymium pot magnet providing up to 90 lbs of magnetic breakaway pull force for drill-free, overhead mounting to steel beams and ceiling structures.
Continuous Bend Radius Protection: Features a smooth, 2-inch wide composite base that eliminates pinch points and protects high-performance structured data cables against kink-related signal loss.
Integrated Snap-Lock Closure: Built-in locking latch secures cabling inside the pathway and opens smoothly for future adds, moves, and changes without scissors or replacement zip ties.
Dedicated Red Identification: Bold red finish supports immediate visual identification for fire alarm systems, life-safety pathways, access control lines, and emergency circuits.
Fast, Damage-Free Installation: Mounts instantly to any ferrous metal surface; easily unmounts and repositions across temporary or permanent installations without surface damage.
Hybrid Steel & Polymer Construction: Combines the structural strength of a stamped steel core with a slick, low-friction composite bed for effortless, burr-free cable pulls.
Code-Compliant Pathway Support: Designed and manufactured to meet plenum space guidelines and stringent commercial structured cabling installation codes.

Specifications
Hook Size / Loop Diameter: 1.0 inch (Size 16)
Base Width: 2.0 inches
Mounting Configuration: 90° top/vertical mount angled bracket with MAG420 pot magnet assembly
Magnet Pull Strength: Up to 90 lbs breakaway holding force (magnetic attachment force depends on steel thickness and surface finish)
Cable Capacity:
Cat 5e: Up to 20 cables
Cat 6: Up to 20 cables
Cat 6A: Up to 10 cables
Primary Materials: Heavy-gauge galvanized steel frame with high-performance polypropylene saddle
Color: Red
Reusability: 100% Removable and Reusable
Environmental & Safety Standards: Plenum Rated, cULus Listed, RoHS Compliant, REACH Compliant, California Proposition 65 Compliant, ANSI/TIA-568 & ANSI/TIA-569 Compliant
Dimensions (L x W x H): 2.25 x 2.00 x 4.25 inches
Shipping Dimensions (L x W x H): 4.50 x 3.50 x 2.50 inches
Weight: 0.26 lbs
Shipping Weight: 0.39 lbs
