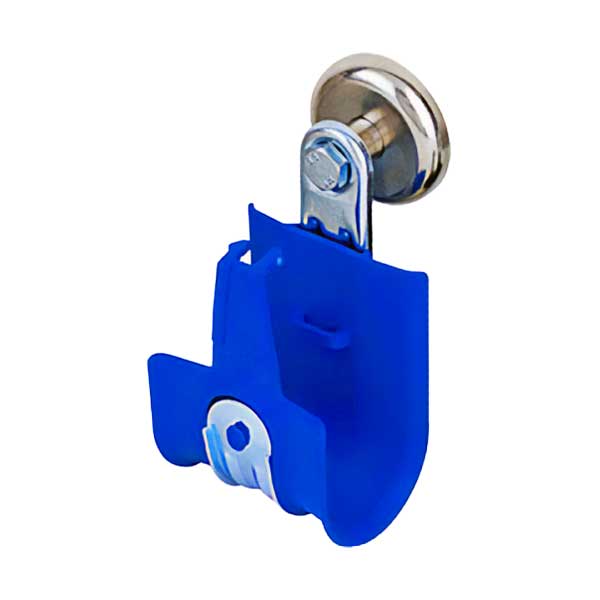

Platinum Tools HPH J-Hook Assembled to Side Mount with MAG420 Pot Magnet | 1" | Blue | 1-Piece | HPH16MH-10BL-1

Heavy-duty cable routing for commercial networking. This 1-inch HPH J-Hook features a pre-assembled MAG420 side-mount magnet that attaches instantly to steel framing without drilling. The 2-inch wide polymer bed protects Cat 5e through Cat 6A cabling and fiber optics from bend degradation and pinch points. Built-in snap-lock latch secures cables firmly while allowing easy repositioning. Blue finish enables quick pathway identification in dense installations. Tool-free, non-destructive mounting—no holes, no fasteners, no recurring cable tie costs. cULus Listed, Plenum Rated, and fully reusable.

Features
Tool-Free Side Magnet Mount: Pre-assembled side-mounted MAG420 pot magnet attaches instantly to vertical steel uprights, beams, and studs without drilling, welding, or hardware.
Continuous Bend Radius Protection: 2-inch wide molded polymer base distributes cable weight evenly to eliminate pinch points, reduce sag, and protect transmission performance.
Integrated Retainer Snap Latch: Heavy-duty built-in locking strap secures cable bundles within the hook and opens smoothly for future adds, moves, and changes.
Friction-Free Cable Pulls: Ultra-smooth composite interior surface allows installers to pull low-voltage and fiber cables effortlessly without outer jacket burn or snagging.
Dedicated Blue Identification: Blue color-coding facilitates immediate visual segregation of specialized data lines, PoE drops, security circuits, or access control wiring.
Non-Destructive & Repositionable: Mount, adjust, or relocate the pathway instantly without leaving holes, metal shavings, or surface damage behind.
Commercial Building Code Ready: Engineered with flame-retardant hybrid materials suitable for commercial pathways and environmental air-handling spaces.

Specifications
Hook Size / Loop Diameter: 1.0 inch (Size 16)
Base Width: 2.0 inches
Mounting Configuration: Side-mount MAG420 rare-earth pot magnet with 1/4"-20 internal machine threading
Mounting Orientation: Vertical flange / side wall mount
Cable Capacity (Recommended Working Load):
Cat 5e: Up to 20 cables
Cat 6: Up to 20 cables
Cat 6A: Up to 10 cables
Materials: Galvanized steel core reinforcement with high-performance polypropylene saddle
Color: Blue
Reusability: 100% Removable and Reusable
Compliance & Standards: cULus Listed, Plenum Rated, RoHS Compliant, REACH Compliant, California Proposition 65 Compliant, ANSI/TIA-568, ANSI/TIA-569
Dimensions (L x W x H): 2.25 x 2.00 x 4.25 inches
Shipping Dimensions (L x W x H): 4.50 x 3.50 x 2.50 inches
Weight: 0.26 lbs
Shipping Weight: 0.33 lbs
