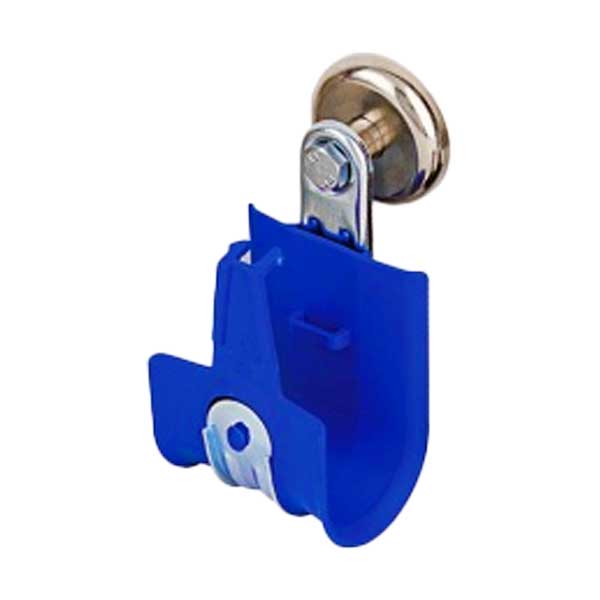

Platinum Tools HPH J-Hook Assembled to Side Mount with MAG420 Pot Magnet | 2" | Blue | 1-Piece | HPH32MH-10BL-1

This industrial-grade cable management hook delivers drill-free mounting for structured cabling installations. The factory-assembled rare-earth pot magnet adheres instantly to metal surfaces, beams, and steel framing without fasteners or mechanical hardware.

Built with a 2-inch wide polypropylene base maintaining a 3.35-inch bend radius, it protects Cat 5e through Cat 7 and fiber optic cables from pinch points and signal degradation. The integrated snap-lock latch secures cables without zip ties or straps, reducing installation labor and material costs.

High-visibility blue finish enables quick pathway identification across data networks and PoE circuits. Heavy-gauge steel reinforcement, plenum-rated construction, and reusable magnetic mounting make this hook ideal for permanent installations and temporary job sites alike.

Features
Tool-Free Magnetic Mounting: Factory-assembled side-mount MAG420 rare-earth pot magnet mounts instantly to metal surfaces, structural steel, and drop-ceiling framing without drilling.
Continuous Bend Radius Protection: Features a smooth, 2-inch wide plastic composite base providing a 3.3495-inch bend radius that prevents cable indentation and packet degradation.
Built-In Snap-Lock Latch: Integrated retainer strap locks cables securely within the pathway, eliminating the need for single-use zip ties or hook-and-loop fasteners.
Burr-Free Cable Pulls: Slick composite interior allows data and low-voltage cables to glide effortlessly through bends during installation.
Color-Coded Pathway Organization: Blue finish provides rapid visual separation of dedicated data networks, security lines, or PoE circuits.
Non-Permanent & Reusable: Relocate, reposition, or re-route pathway runs across temporary job sites or permanent facilities with zero wall damage.
Plenum-Rated Safety: Formulated with flame-retardant composite materials certified for deployment in environmental air-handling spaces.

Specifications
Hook Size / Diameter: 2.0 inches (Size 32)
Usable Cable Area: 3.97 sq. in.
Calculated Bend Radius: 3.3495 inches
Magnet Configuration: Side-mount MAG420 pot magnet with 1/4"-20 internal machine threading
Mounting Orientation: Horizontal / vertical wall-flange side mount
Cable Capacity (Magnetic Mount Specification):
Cat 5e: 90 cables
Cat 6: 60 cables
Cat 6A: 35 cables
Cable Capacity (100% Maximum Theoretical Fill): Cat 5e: 129 | Cat 6: 86 | Cat 6A: 50
Construction: Heavy-gauge steel reinforcement with high-performance polypropylene saddle
Color: Blue
Standards & Compliance: cULus Listed, Plenum Rated, RoHS Compliant, REACH Compliant, ANSI/TIA-568, ANSI/TIA-569
Product Dimensions (L x W x H): 4.25 x 2.00 x 5.50 inches (Hook base: 2.0" wide; Magnet: 1.42" W x 0.75" H)
Shipping Dimensions (L x W x H): 5.50 x 4.00 x 3.00 inches
Product Weight: 0.42 lbs
