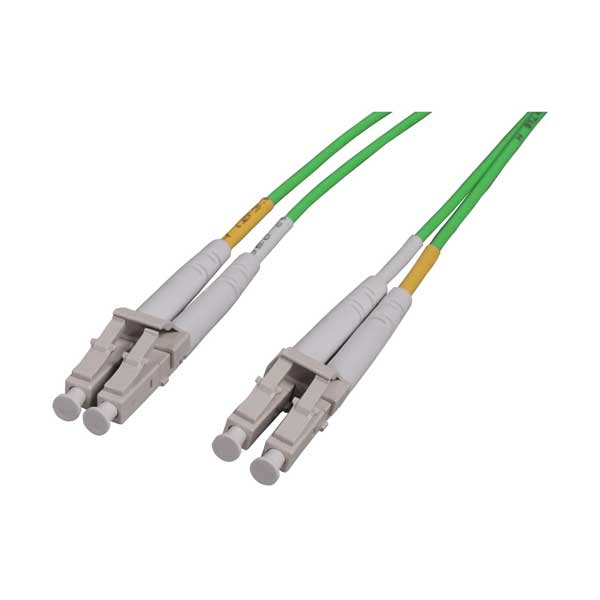

Intellinet 3m 2.0mm Duplex OFNR OM5 Multimode LC to LC UPC Fiber Optic Patch Cable - Lime Green (760898)

The Intellinet 3-meter 2.0mm Duplex OFNR OM5 Multimode LC to LC UPC Fiber Optic Patch Cable in lime green delivers reliable connectivity for interconnect and cross-connect applications in data centers, telecom rooms, and workstations. Featuring ultra-precise UPC connectors, it minimizes return loss while OM5 multimode fiber supports higher bandwidths and faster data rates suitable for 40G Ethernet and beyond. Its bend-insensitive design reduces signal attenuation during installation, ensuring consistent performance. Constructed with Corning ultra-pure glass fiber, this cable provides low attenuation and high durability with a lifetime warranty. Includes test report for quality assurance.

Features
Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
OM5 fiber optic cable offers higher bandwidth and faster data transmission over short to medium distances with fewer fiber cores.
Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
Each cable ships with the test report included
Lifetime Warranty

Specifications
Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Bend Radius: 15 mm
Fiber mode: Multi Mode OM5 50/125μm
Wavelength: 850/1310nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: typical ≤0.3dB
Return loss: ≥55dB
Attenuation @ 850 / 1300 nm (dB/km): ≤ 3,2 / ≤ 0,8
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -20°C to +75°C
