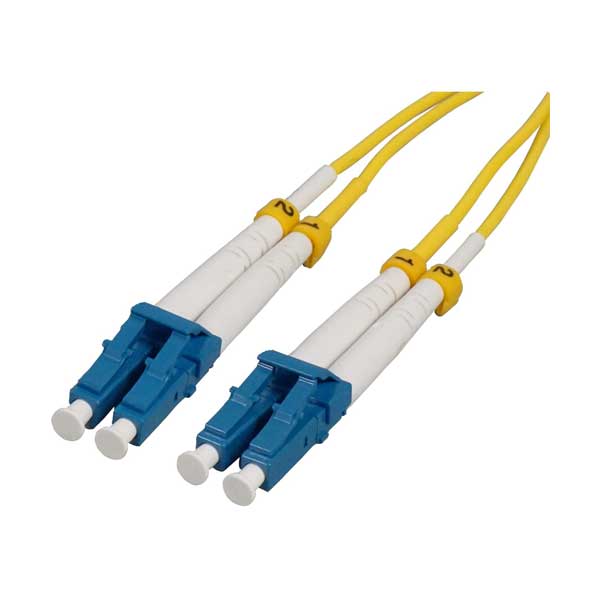

Intellinet 1m 2.0mm Duplex OFNR Singlemode BIF LC to LC UPC Fiber Optic Patch Cable - Yellow (751643)

The Intellinet 1m 2.0mm Duplex OFNR Singlemode BIF LC to LC UPC Fiber Optic Patch Cable in yellow is optimized for demanding network environments such as telecommunications rooms, data centers, and entrance facilities. Equipped with UPC connectors, it offers enhanced surface quality and reduced return loss. Utilizing OS2 single-mode fiber, this cable delivers excellent low signal loss and supports high data rates suitable for 40G Ethernet and beyond. Its bend insensitive design minimizes attenuation during bends or twists, ensuring installation efficiency. Constructed from Corning ultra-pure glass fiber, it guarantees sustained high performance. Each cable includes a test report and comes with a lifetime warranty.

Features
Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
OS2 Single Mode Fiber: Uses OS2 single mode fiber, providing superior performance and longevity for high-speed network connections.
Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
Each cable ships with the test report included
Lifetime Warranty

Specifications
Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Fiber grade: G.657.A1 (Compatible with G.652.D)
Bend Radius: 10.0mm
Fiber mode: Single Mode OS2 9/125μm
Wavelength: 1310/1550nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: ≤0.3dB (1310nm/1550nm), typical ≤0.2dB
Return loss: ≥55dB (1310nm/1550nm)
Attenuation at 1310nm: ≤0.35dB/km
Attenuation at 1550nm: ≤0.25dB/km
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -40°C +85°C
