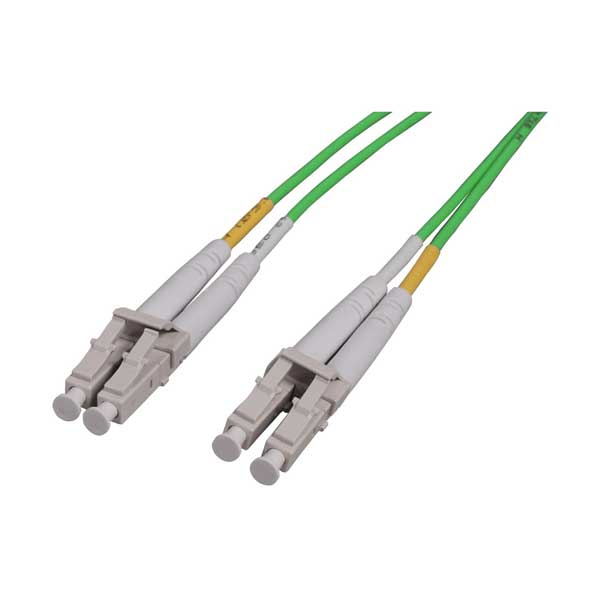

Intellinet 2m 2.0mm Duplex OFNR OM5 Multimode LC to LC UPC Fiber Optic Patch Cable - Lime Green (760881)

The Intellinet 2m 2.0mm Duplex OFNR OM5 Multimode LC to LC UPC Fiber Optic Patch Cable in lime green is engineered for superior connectivity in environments such as telecommunications rooms, data centers, and entrance facilities. It utilizes UPC connectors for reduced return loss and a refined surface finish, while OM5 multimode fiber enables higher bandwidth and accelerated data transfer across short to medium distances with fewer fiber cores. Its bend-insensitive design minimizes signal attenuation during installation, enhancing reliability and ease of handling. Crafted from Corning’s ultra-pure glass fiber, it delivers low attenuation and high bandwidth essential for demanding 40G Ethernet applications and beyond. Each cable comes with a test report and is backed by a lifetime warranty.

Features
Versatile Connectivity: Ideal for interconnect and cross-connect applications in entrance facilities, telecommunications rooms, data centers, and at the desk.
UPC (Ultra Physical Contact) fiber connectors for a better surface finish and improved return loss.
OM5 fiber optic cable offers higher bandwidth and faster data transmission over short to medium distances with fewer fiber cores.
Low signal loss and high data rate - perfect for use in 40G Ethernet applications and beyond.
Bend Insensitive Design: Features bend insensitive technology, reducing attenuation when bent or twisted, which enhances installation and maintenance efficiency
Made from Corning optical fiber ultra-pure glass - Corning glass fiber optic cables offer excellent performance characteristics, including low attenuation and high bandwidth, which are crucial for high-speed and long-distance communication.
Each cable ships with the test report included
Lifetime Warranty

Specifications
Connector type: LC UPC Duplex to LC UPC Duplex
Fiber count: 2 Fibers
Bend Radius: 15 mm
Fiber mode: Multi Mode OM5 50/125μm
Wavelength: 850/1310nm
Polarity: A (Tx) to B (Rx)
Cable outer diameter (OD): 2.0mm
Cable jacket: Riser (OFNR)
Ferrule material: Ceramic (zirconia)
Insertion loss: typical ≤0.3dB
Return loss: ≥55dB
Attenuation @ 850 / 1300 nm (dB/km): ≤ 3,2 / ≤ 0,8
Connector durability: 1000 insertion - extraction cycles min.
Operation temperature range: -20°C to +75°C
