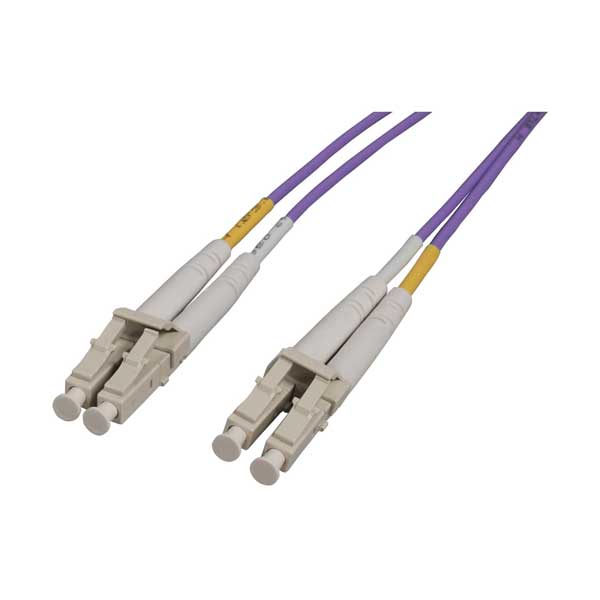

Intellinet 2m 2.0mm Duplex OFNR OM4 Multimode LC to LC UPC Fiber Optic Patch Cable - Violet (752206)

The Intellinet 2m 2.0mm Duplex OFNR OM4 Multimode LC to LC UPC Fiber Optic Patch Cable in violet delivers exceptional performance for high-speed data transmission, supporting 40G Ethernet and higher. Featuring bend-insensitive fiber to minimize signal loss, it uses ultra-pure Corning optical fiber and ceramic UPC connectors for optimal return loss and connection reliability. The cable’s OFNR-rated riser jacket ensures safety, while comprehensive testing guarantees consistent quality. Designed for demanding environments like data centers and telecom rooms, this cable offers low insertion loss, superior durability with over 1000 insertions, and stable operation between -20°C and 75°C.

Features
Bend-insensitive: Reduces signal loss when the cable is bent or twisted.
High performance: Delivers superior bandwidth for high-speed data transmission, suitable for 40G Ethernet and beyond.
Ultra Physical Contact (UPC) connectors: Provides an improved surface finish and return loss for a more reliable network connection.
Premium materials: Made from ultra-pure Corning optical fiber.
Certified and tested: Each cable is shipped with a test report to ensure quality and performance.
Versatile application: Ideal for interconnect and cross-connect applications in a variety of environments, including data centers and telecommunications rooms.

Specifications
Connector Type: LC UPC Duplex to LC UPC Duplex.
Fiber Mode: Multi Mode OM4.
Fiber Core/Cladding: 50/125µm.
Cable Outer Diameter (OD): 2.0mm.
Fiber Count: 2 fibers.
Cable Jacket: Riser (OFNR) rated.
Color: Violet.
Ferrule Material: Ceramic (zirconia).
Attenuation @ 850/1300 nm (dB/km): ≤ 3.2 / ≤ 0.8.
Insertion Loss: Typical ≤0.2dB.
Return Loss: ≥20dB.
Wavelength: 850/1310nm.
Polarity: A (Tx) to B (Rx).
Bend Radius: 45mm.
Connector Durability: 1000 insertion-extraction cycles min.
Operating Temperature Range: -20°C to +75°C.
