By Zenty

Zenty 18G 1x2 MRO HDMI Splitter | 4K HDR | Downscaler | ZT-411

SKU: ZT-411
MFR#:
ZT-411

Call 800-531-5369 for pricing & availability

ZT-411 - Altex Computers & Electronics
$49.95
$49.95

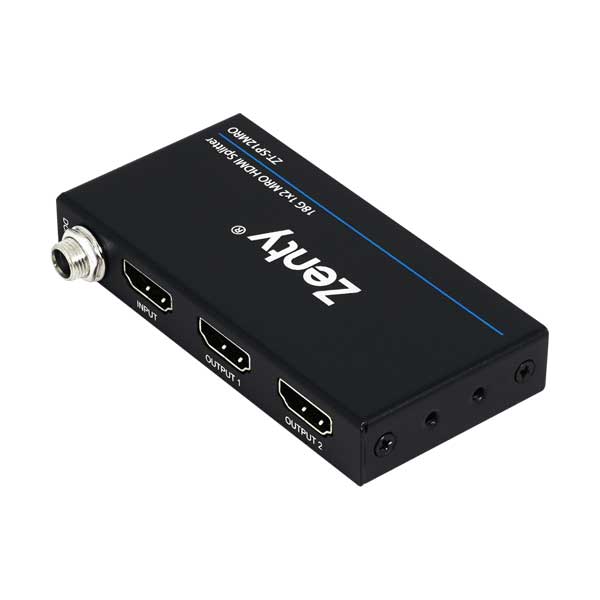

The Zenty ZT-411 is a professional-grade 1x2 HDMI splitter designed to distribute 4K video signals to two displays simultaneously. With 18Gbps bandwidth and support for 4K@60Hz (4:4:4) resolution, it delivers pristine image quality without compromise. This splitter excels with its intelligent mixed-resolution downscaling—send full 4K to modern displays while automatically downscaling to 1080p for legacy FHD screens from the same source. Advanced EDID management offers three selectable modes to optimize compatibility across any display configuration. Full HDR support, deep color (12-bit per channel), and comprehensive audio compatibility including Dolby TrueHD and DTS-HD Master Audio make it ideal for both commercial installations and premium home theater setups. HDCP 2.2 and 1.4 compliant with 3D video support, the ZT-411 provides reliable, uncompromised signal delivery in a compact metal enclosure.
Specifications Features
Advanced EDID Management: Features three selectable EDID modes (Auto, Copy, and Downscaler) to adapt to any display configuration.
Mixed-Resolution Downscaling: Intelligently downscales a 4K input to 1080p for FHD displays while simultaneously sending the full 4K resolution to 4K displays.
Ultra HD Resolution: Supports stunning video resolutions up to 4K@60Hz (YUV 4:4:4) for crystal-clear, lifelike imagery.
High Dynamic Range (HDR): Fully supports HDR video for enhanced contrast and broader color spectrums.
High-Speed Bandwidth: Delivers 600MHz/6.0Gbps per channel (18Gbps across all channels) to ensure lag-free video transmission.
Deep Color Support: Supports 12-bit per channel (36-bit across all channels) deep color for incredibly vibrant visuals.
Broad Audio Compatibility: Supports uncompressed audio (LPCM) and high-definition compressed audio formats, including DTS, Dolby Digital, DTS-HD Master Audio™, and Dolby TrueHD.
HDCP Compliance: Fully compliant with both HDCP 2.2 and HDCP 1.4 standards for secure content playback.
Full 3D Video Support: Ready for immersive 3D home theater and professional projection setups.

Specifications
Input Ports: 1 x HDMI
Output Ports: 2 x HDMI
Vertical Frequency Range: 50/60Hz
Video Amplifier Bandwidth: 6.0Gbps/600MHz per channel (18Gbps all channels)
Interlaced Resolutions (50/60Hz): 480i, 576i, 1080i
Progressive Resolutions (50/60Hz): 480p, 576p, 720p, 1080p, 4K@24/30Hz, 4K@50/60Hz
Power Supply: 5V DC @ 1A
Power Consumption (Max): 5W
Operating Temperature: 0°C to 70°C (32°F to 158°F)
Storage Humidity: 5% to 90% RH (non-condensing)
Material: Metal Enclosure
Certifications: FCC, CE, RoHS (Splitter Unit & Power Supply)
Warranty: 1 Year Parts and Labor
Dimensions (L x W x H): 3.54 x 1.73 x 0.55 inches (converted from 90 x 44 x 14 mm)
Weight: 0.19 lbs (converted from 87 g)
