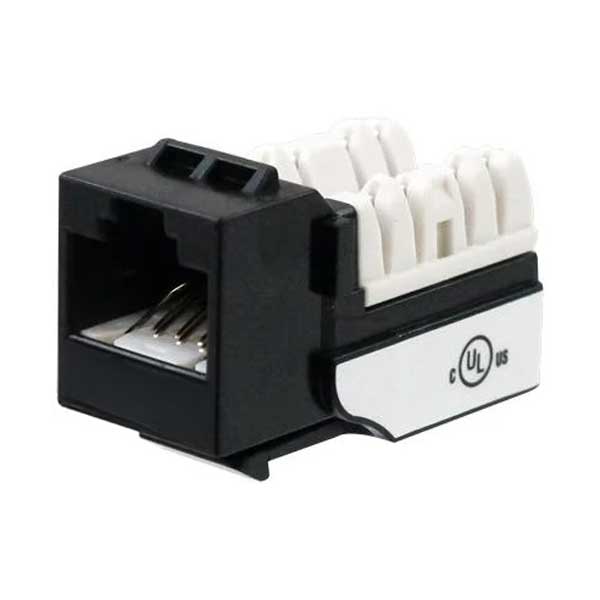

Wavenet CAT5e RJ45 UTP 110-Type Keystone Jack | Black | 25-Pack | 5EKSJBK-25PK

Professional-grade Cat5e keystone jacks designed for enterprise networking installations. This 25-pack of Wavenet RJ45 jacks features a narrow-profile PCB architecture that minimizes crosstalk while fitting seamlessly into high-density patch panels and wall plates. The 90-degree 110-type punch-down design accelerates termination with standard impact tools, while gold-plated contacts and flame-retardant housing ensure durability and code compliance. Supports Gigabit Ethernet speeds up to 100 MHz with universal T568A/B color-coded labeling for error-free wiring. UL Listed and RoHS compliant, ideal for commercial renovations, data center builds, and large-scale network deployments.

Features
High-Density Slimline Architecture: Fits cleanly into 1U 24-port or 2U 48-port high-density blank patch panels, multi-gang faceplates, and surface-mount boxes without physical interference.
Integrated PCB Technology: Balances signal transmission and suppresses return loss and crosstalk, reliably exceeding ANSI/TIA-568-C.2 Category 5e specifications.
Efficient 90-Degree Punch-Down: Accelerates conductor seating and trimming using standard 110-type impact tools or compatible keystone termination crimpers.
Universal Color-Coded Labeling: Integrates clear, dual-color wiring diagrams for both T568A and T568B pinout configurations to prevent field wiring errors.
Corrosion-Resistant Gold Contacts: Features 50-microinch gold plating across 8P8C contacts to deliver superior signal conductivity and long-term mating durability.
Flame-Retardant Enclosure: Molded from rugged, high-impact UL 94V-0 thermoplastic to ensure safety, durability, and code compliance in commercial builds.
Convenient Bulk 25-Pack: Maximizes job-site efficiency and lowers overall per-port costs for mass drops, commercial renovations, and data closet rollouts.

Specifications
Product Type: Category 5e (Cat5e) RJ45 Keystone Jack (25-Pack)
Transmission Performance: ANSI/TIA-568-C.2, ISO/IEC 11801 Class D
Frequency / Bandwidth: Rated up to 100 MHz (supports 1000BASE-T Gigabit Ethernet)
Connector Style: RJ45 Female (8P8C)
Termination Mechanism: 90-Degree 110-Type IDC Punch-Down
Wiring Schematics: Universal T568A and T568B
Conductor Gauge Compatibility: 22 to 26 AWG solid or stranded unshielded twisted pair (UTP) copper
Contact Plating: 50 µin Gold Plating over Nickel on Phosphor Bronze
Housing Material: High-Impact, Flame-Retardant ABS Thermoplastic (UL 94V-0 Rated)
Mounting Standard: Standard Keystone Snap-In (Compatible with standard patch panels, wall plates, and surface boxes)
Current Rating: 1.5 Amps max
Insulation Resistance: ≥ 500 MΩ
Contact Resistance: ≤ 20 mΩ
Dielectric Withstanding Voltage: 1000 V AC RMS @ 60 Hz, 1 minute
Mechanical Durability: ≥ 750 insertion/mating cycles
Color / Finish: Black
Certifications: UL Listed, RoHS Compliant
Dimensions (L x W x H) (Per Unit): 1.18" × 0.63" × 0.88"
Shipping Dimensions (L x W x H) (25-Pack): 7.50" × 5.50" × 1.75"
Weight (Per Unit): 0.09 lbs
Shipping Weight (25-Pack): 0.69 lbs
