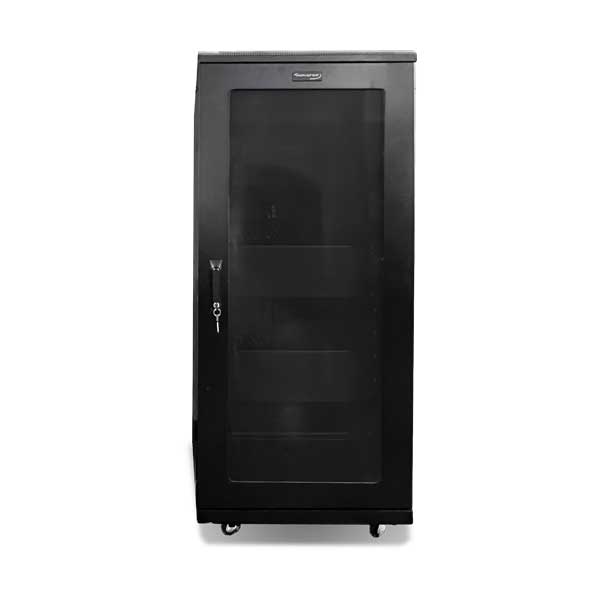

Wavenet 27U Audio Component Rack and Home Theater AV Cabinet (CBTF-FL27U-AV)

SKU: CBTF-FL27U-AV
MFR#:
CBTF-FL27U-AV

Regular price $919.99
Regular price Sale price $919.99


Regular price $919.99
Regular price Sale price $919.99

Overview


Description

The Wavenet 27U Audio Component Rack and Home Theater AV Cabinet (CBTF-FL27U-AV) boasts an impressive list of features, including a weight capacity of up to 800 pounds and quick-release back and side panels for easy access to all components and wiring. With two cable entry points, swivel casters and adjustable feet, and cooling vents on both top and bottom, this cabinet is designed for both convenience and functionality. Constructed with SPCC cold rolled steel and equipped with door locks on the front/back and side panels, this cabinet also offers ample cable management options with knockout holes at the top and bottom. 4 preinstalled 50 CFM fans and adjustable 19" mounting rails add to the versatility and efficiency of this product. For added ventilation and operation reliability, the cabinet can be easily disassembled and controlled with optional switches.

Product Features:
• Can hold up to 800 pounds.
• Comes fully assembled with blanking panels and vented cantilevers.
• Features quick-release back and side panels for easy access to all components and wiring.
• There are two cable Entry at the top and bottom.
• Includes a removable 1U panel that you can place above or below the rear door for extra ventilation or cooling options.
• Equipped with swivel casters and adjustable feet, making it easy to move but remains stable when you need it in one spot.
• Features cooling vents on the top and bottom to keep everything at the right temperature.
• Contains door locks on the front/back door with long handles and side panels contain small round locks that are lockable with the included keys.
• Has knockout holes for cable access and management at the Top/Bottom of the AV cabinet.
• Adjustable mounting rail depth can be achieved by removing and reinstalling screws and cage nuts.
• Compatible with both #10-32 and M6 mounting screws for equipment installation.
• Includes preinstalled 50 CFM Fan 4pcs.
• Constructed with SPCC cold rolled steel.
• Easy-to-disassemble design enables convenient operation.
• Enables ventilation and reliable operation.
• Full series of optional switch, can control fans singly.

Specifications:
• Compliance: ANSI/EIA RS-310D, IEC60297-2, DIN41494;PART 1, DIN41494;PART 7.
• Material: SPCC cold rolled steel.
• Thickness of plate: Rails - 2mm (14GA), Cabinet - 1.2mm (18GA), Side door - 1.0mm (20GA), Front door - 1.2mm (18GA).
• Loading Capacity: 800 lbs static loading.
• Unit Dimensions (W x D x H): 23.6 x 23.6 x 55.3 inches (600 x 600 x 1405.2 mm).
• Fan Size: 120x120x38mm.
• Fan Cable Length: 1.9M.
• Input Frequency: 110V/50Hz.
• Input Current: 10A.
• Work Voltage Rate: 94~125V.
• Operating Temperature: -10°C ~ +50°C.
• Atmosphere Runoff (Fan): 200CFM.
• Direction of Rotation (Fan): Counter-Clockwise.
• Weight: 465 lbs (Ctn Weight). (*This is the shipping weight of the carton.*)
