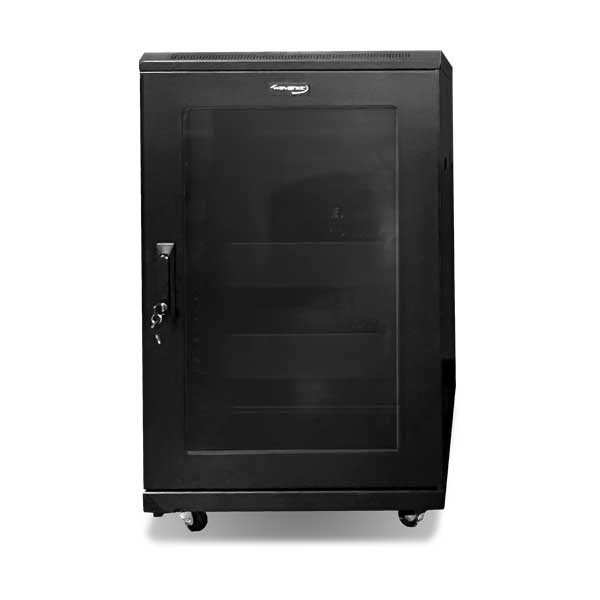

Wavenet 18U Audio Component Rack and Home Theater AV Cabinet (CBTF-FL18U-AV)

SKU: CBTF-FL18U-AV
MFR#:
CBTF-FL18U-AV

Regular price $699.99
Regular price Sale price $699.99


Regular price $699.99
Regular price Sale price $699.99

Overview


Description

The Wavenet 18U Audio Component Rack and Home Theater AV Cabinet (CBTF-FL18U-AV) offers a variety of features, including a maximum weight capacity of 800 pounds, quick-release panels for easy access, multiple entry points for cables, and a 1U panel for added ventilation options. Constructed with SPCC cold rolled steel, this cabinet also includes swivel casters and adjustable feet for easy movement and stability. With door locks on all sides and knockout holes for cable management, this cabinet is compatible with both #10-32 and M6 mounting screws and includes 4 preinstalled 50 CFM fans. The cabinet's dimensions are 600mm in width and depth, and it is designed to promote ventilation and ensure reliable operation.

Features:
• Can hold up to 800 pounds.
• Comes fully assembled with blanking panels and vented cantilevers.
• Features quick-release back and side panels for easy access to all components and wiring.
• There are two cable entry points at the top and bottom.
• Includes a removable 1U panel that you can place above or below the rear door for extra ventilation or cooling options.
• Equipped with swivel casters and adjustable feet, making it easy to move but remaining stable.
• Features cooling vents on the top and bottom.
• Contains door locks on the front and back doors with long handles, and side panels contain small round locks that are lockable with the included keys.
• Has knockout holes for cable access and management at the top and bottom.
• Adjustable mounting rail depth by removing and reinstalling screws and cage nuts.
• Compatible with both #10-32 and M6 mounting screws for equipment installation.
• Includes 4 preinstalled 50 CFM fans.
• Constructed with SPCC cold rolled steel.
• Easy-to-disassemble design enables convenient operation.
• Enables ventilation and reliable operation.

Specifications:
• Compliance: ANSI/EIA RS-310D, IEC60297-2, DIN41494;PART 1, DIN41494;PART 7.
• Material: SPCC cold rolled steel.
• Thickness of plate: Rails - 2mm (14GA), Cabinet - 1.2mm (18GA), Side door - 1.0mm (20GA), Front door - 1.2mm (18GA).
• Loading Capacity: 800 lbs static loading.
• Unit Dimensions (W x D x H): 23.6 x 23.6 x 39.6 inches (600 X 600 X 1005.2).
• Fan Size: 120x120x38mm.
• Fan Cable Length: 1.9M.
• Input Frequency: 110V/50Hz.
• Input Current: 10A.
• Work Voltage Rate: 94~125V.
• Operating Temperature: -10°C ~ +50°C.
• Atmosphere Runoff (Fan): 200CFM.
• Direction of Rotation (Fan): Counter-clockwise.
• Weight: 465 lbs (Ctn Weight). (*This is the shipping weight of the carton.)
