Vertical Cable Optical Fiber Keystone Module | MM OM3 | LC Duplex | White | 264-KMB01-4C-WH

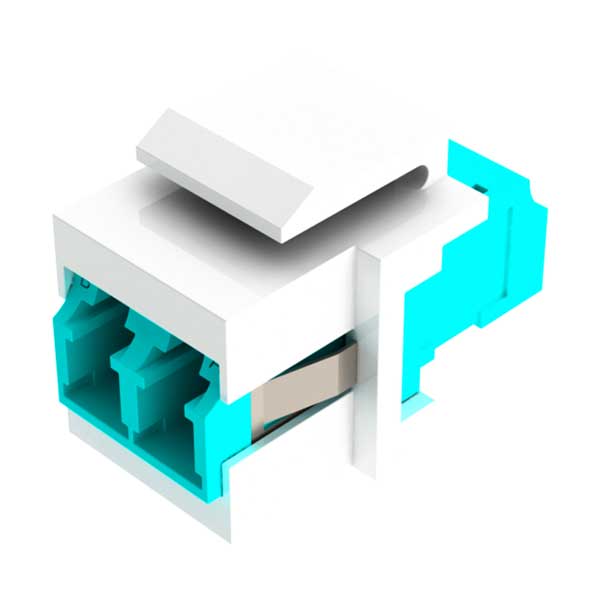

The Vertical Cable 264-KMB01-4C-WH is a high-performance OM3 LC duplex keystone module designed for 10 Gigabit multimode fiber networks. Built with precision zirconia ceramic split sleeves and housed in a flame-rated white ABS bezel, it delivers ultra-low insertion loss (≤ 0.3 dB) while maintaining sub-micron optical alignment through repeated mating cycles. The aqua-colored adapter body provides instant OM3 identification, and the compact keystone form factor snaps into standard wall plates, surface-mount boxes, patch panels, and LGX adapter plates without tools. Ideal for enterprise, educational, and data center environments requiring reliable high-density fiber connectivity.

Features
High-Density LC Duplex Form Factor: Patches two multimode optical fibers within a single standard keystone port to maximize rack and wall plate density.
Optimized for 10G OM3 Networks: Precision-engineered for 50/125 µm laser-optimized multimode fiber backbones and horizontal distribution runs.
Precision Zirconia Ceramic Split Sleeves: Maintains sub-micron optical alignment across repeated mating cycles to prevent signal degradation.
Ultra-Low Insertion Loss: Achieves low insertion loss of 0.3 dB or lower when paired with standard-compliant plugs.
Flame-Retardant ABS Bezel: Features an ANSI/UL 94 V-0 flame-rated white outer shell designed to satisfy commercial fire safety codes.
Standardized Color Identification: Outfitted with an aqua LC adapter housing for instant visual identification of OM3 multimode fiber channels.
Universal Snap-In Compatibility: Installs securely into all Vertical Cable keystone wall plates, surface-mount boxes, and modular patch panels without tools.

Specifications
Connector / Adapter Type: LC Duplex (Female to Female)
Fiber Type & Core Size: Multimode OM3 (50/125 µm)
Bezel Color: White
Adapter Color: Aqua (OM3 Standard)
Split Sleeve Material: Zirconia Ceramic
Body Design: One-piece adapter body
Adapter Orientation: Key / Latch Up
Insertion Loss (IL): ≤ 0.3 dB (with standard-compliant plugs)
Return Loss (RL): UPC: ≥ 55 dB / APC: ≥ 65 dB
Bezel Material: Acrylonitrile Butadiene Styrene (ABS)
Bezel Environmental Compliance: REACH (Regulation EC No 1907/2006), RoHS2 (Directive 2011/65/EU Am. 2015/863/EU), ANSI/UL 94 V-0
Adapter Environmental Compliance: IEC 61754-20 (type LC connector family), REACH, RoHS2, ANSI/UL 94 V-0
Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
Operating Humidity: ≤ 95% RH non-condensing
Installation Suitability: Keystone faceplates, surface-mount boxes, keystone patch panels, and keystone LGX plates
Dimensions (L x W x H): 0.65 in. (Length/Depth) x 0.57 in. (Width) x 0.63 in. (Height)
