Vertical Cable Flangeless LGX Adapter Plate | LC duplex | DX/MM/OM3/OM4 | 6-Position | 264-LAP04-1B6C1

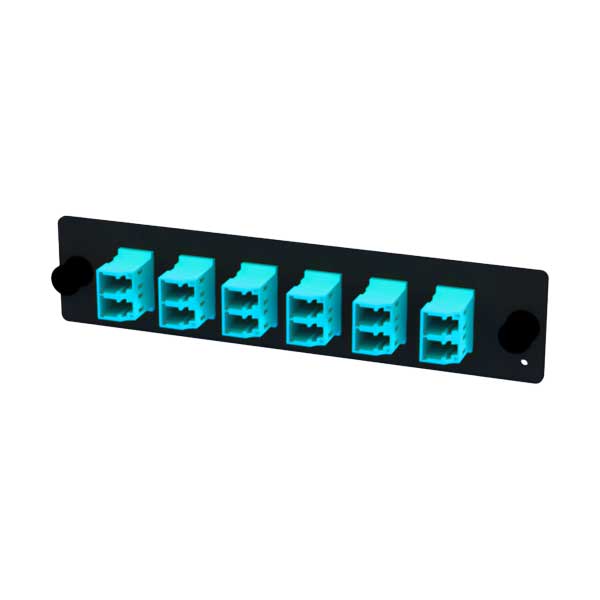

The Vertical Cable 264-LAP04-1B6C1 is a high-density LGX adapter plate designed for professional fiber optic networks. It houses six LC duplex adapters, supporting up to 12 OM3 multimode fibers in a single LGX slot. Features tool-free spring retention, precision zirconia ceramic sleeves for ultra-low insertion loss (≤0.3 dB), and rugged 15-gauge aluminum construction. Fully compatible with standard LGX enclosures, patch panels, and rack-mount systems. Meets Telcordia, IEC, RoHS2, and ANSI/UL standards for carrier-grade reliability in 10G backbone and distribution networks.

Features
High-Density 12-Fiber Capacity: Houses six LC duplex adapters in a single LGX slot, terminating up to 12 optical fibers in high-density rack environments.
Optimized for 10G OM3 Multimode: Specifically engineered for 50/125 µm laser-optimized multimode fiber networks, complete with standard aqua adapter housings for quick visual identification.
Tool-Free Flangeless Spring Retention: Chatter-proof multi-sided spring clips hold adapters securely in place without mounting screws or loose hardware.
Precision Zirconia Ceramic Sleeves: Ensures exact core alignment to maintain low insertion loss (≤ 0.3 dB) and high return loss across repeated mating cycles.
Universal LGX Compatibility: Designed with standard 4.65-inch (118 mm) center-to-center mounting hole spacing and pre-installed push-pin plungers for fast, tool-free installation into standard LGX enclosures.
Rugged Aluminum Construction: Built from 1.5 mm (15-gauge) aluminum alloy finished in a corrosion-resistant black powder coat.
Carrier-Grade Standards: Meets Telcordia GR-326-CORE, IEC 61754-20, RoHS2, REACH, and ANSI/UL 94 V-0 requirements.

Specifications
Product Type: LGX Fiber Optic Adapter Plate
Plate Series: 264-LAP Series
Adapter Footprint: LGX Compatible (Transversal / Lateral mounting)
Number of Positions: 6 positions
Connector / Adapter Style: LC Duplex (Female to Female)
Adapter Format: Flangeless (NF - Non-Flanged)
Total Fiber Count: 12 Fibers
Fiber Type Compatibility: Multimode OM3 (50/125 µm) (also compatible with OM4 50/125 µm and OM1 62.5/125 µm)
Adapter Housing Color: Aqua (OM3 Standard)
Split Sleeve Material: Zirconia Ceramic
Insertion Loss (IL): ≤ 0.3 dB (with standard-compliant plugs)
Return Loss (RL): UPC: ≥ 55 dB / APC: ≥ 65 dB
Adapter Interface Standard: IEC 61754-20 (LC Connector Family)
Mounting Hole Distance: 4.65 in. (118 mm)
Plate Material: 0.06 in. (1.5 mm) / 15-GA Aluminum Alloy
Plate Finish: Electrostatically applied black powder coating
Panel Fastener Material: Nylon / Acrylonitrile Butadiene Styrene (ABS)
Operating Temperature Range: -20°C to +70°C (-4°F to +158°F)
Operating Humidity: ≤ 95% RH non-condensing
Compliance & Ratings: Telcordia GR-326-CORE, RoHS2 (Directive 2011/65/EU Am. 2015/863/EU), REACH (Regulation EC No 1907/2006), ANSI/UL 94 V-0
Dimensions (L x W x H): 1.20 in. (Depth) x 5.12 in. (Width) x 1.14 in. (Height)
Mounting Hole Distance: 4.65 in. (118 mm)
Weight: 0.12 lbs.
