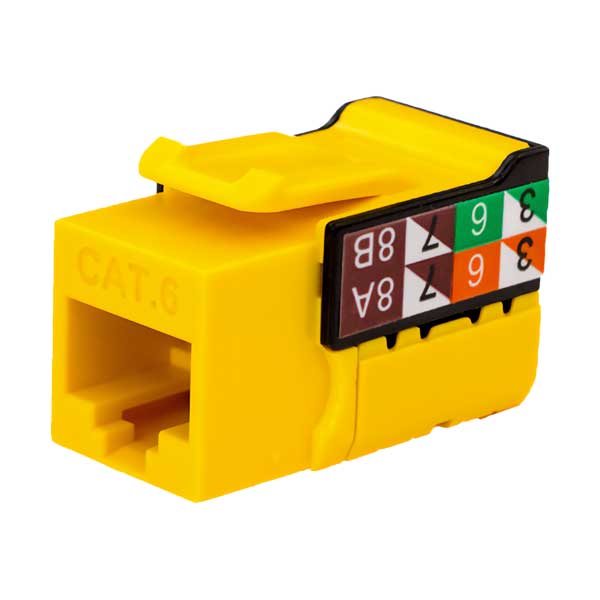

Vertical Cable CAT6 V-Max 352 Series Keystone Jacks | Unshielded | Yellow | 25 Pack | 352-V2711/YL/25

Vertical Cable CAT6 V-Max 352 Series Keystone Jacks deliver professional-grade networking in a compact, high-density design. These unshielded yellow jacks support PoE, PoE+, and PoE++ standards, making them ideal for powering IP cameras, VoIP phones, and wireless access points. Built with UL 94V-0 fire-retardant housing and gold-plated contacts rated for 1,500 mating cycles, they offer superior durability and reliability. Dual-standard T568A/B color-coding simplifies installation, while the slim profile maximizes port density in patch panels and wall plates. UL Listed and RoHS compliant, these jacks exceed industry standards for commercial, government, and residential infrastructure. This 25-pack includes everything needed for professional installations.

Features:
High-Density Design: Slim profile allows for tight spacing in patch panels and wall plates, maximizing port density.
PoE++ Ready: Full support for PoE, PoE+, and PoE++ (802.3af/at/bt) standards for powering IP cameras, VoIP phones, and wireless access points.
Streamlined Termination: Dual-standard color-coding for T568A/B simplifies wiring; compatible with 110 punch-down and optimized for the V-Max I-Punch tool.
Superior Durability: UL 94V-0 rated fire-retardant housing with 50µ” gold-plated contacts rated for up to 1,500 mating cycles.
Compliance Guaranteed: UL Listed, RoHS compliant, and exceeds ANSI/TIA-568-C.2 and ANSI/TIA 1096-A standards.

Specifications:
Category: 6 Unshielded
Housing Material: ABS+PC UL 94V-0
Contact Material: Phosphor Bronze with Nickel plating; 50 μ" Gold plating on plug contact area
IDC Terminal: Phosphor Bronze with Tin plating
Wire Gauge Compatibility: 23 and 24 AWG solid wire
Operating Temperature: -10°C to 60°C
Mechanical Life: 750 cycles (min) to 1,500 cycles (max)
Dimensions (L x W x H): 1.22" x 0.67" x 0.78"
Shipping Dimensions: 5.0" x 4.0" x 1.5" (Estimated for 25-pack bag)
Weight: 0.5 lbs (25-pack) / 0.04 lbs (Single unit)
