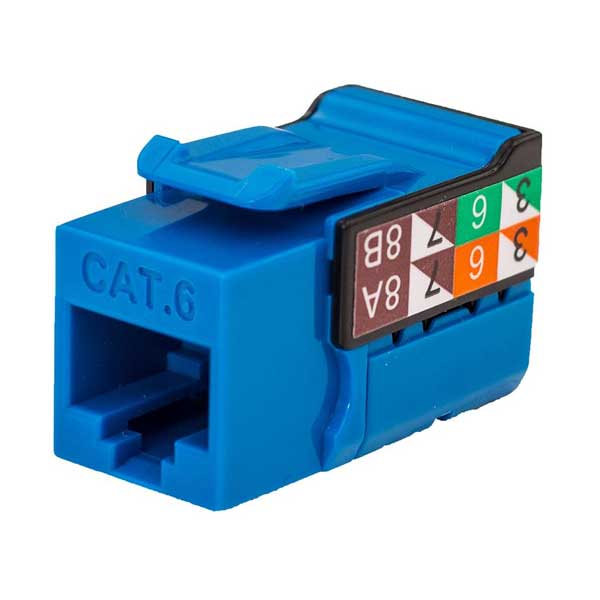

Vertical Cable CAT6 V-Max 352 Series Keystone Jacks | Unshielded | Blue | 25 Pack | 352-V2703/BL/25

Vertical Cable CAT6 V-Max 352 Series Keystone Jacks deliver professional-grade networking in a compact, high-density design. This 25-pack of unshielded blue jacks supports PoE, PoE+, and PoE++ standards for powering IP cameras, VoIP phones, and wireless access points. Built with UL 94V-0 fire-retardant housing and gold-plated contacts rated for 1,500 mating cycles, they offer superior durability and reliability. Dual-standard T568A/B color-coding simplifies installation with 110 punch-down compatibility and V-Max I-Punch tool optimization. UL Listed and RoHS compliant, these jacks exceed ANSI/TIA standards for commercial, government, and residential infrastructure projects.

Features:
High-Density Design: Slim profile allows for tight spacing in patch panels and wall plates, maximizing port density.
PoE++ Ready: Full support for PoE, PoE+, and PoE++ (802.3af/at/bt) standards for powering IP cameras, VoIP phones, and wireless access points.
Streamlined Termination: Dual-standard color-coding for T568A/B simplifies wiring; compatible with 110 punch-down and optimized for the V-Max I-Punch tool.
Superior Durability: UL 94V-0 rated fire-retardant housing with 50µ” gold-plated contacts rated for up to 1,500 mating cycles.
Compliance Guaranteed: UL Listed, RoHS compliant, and exceeds ANSI/TIA-568-C.2 and ANSI/TIA 1096-A standards.

Specifications:
Category: 6 Unshielded
Housing Material: ABS+PC UL 94V-0
Contact Material: Phosphor Bronze with Nickel plating; 50 μ" Gold plating on plug contact area
IDC Terminal: Phosphor Bronze with Tin plating
Wire Gauge Compatibility: 23 and 24 AWG solid wire
Operating Temperature: -10°C to 60°C
Mechanical Life: 750 cycles (min) to 1,500 cycles (max)
Dimensions (L x W x H): 1.22" x 0.67" x 0.78"
Shipping Dimensions: 5.0" x 4.0" x 1.5" (Estimated for 25-pack bag)
Weight: 0.5 lbs (25-pack) / 0.04 lbs (Single unit)
