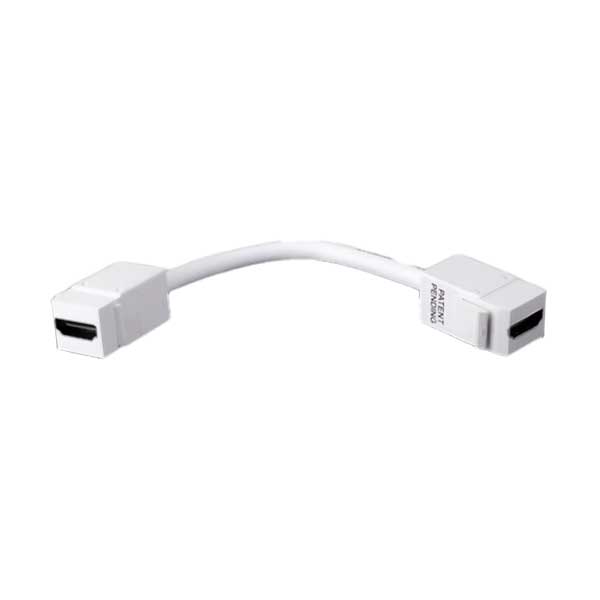

Vanco HDMI Keystone Insert with Pigtail | 3.5" | White | 820490

The Vanco HDMI Keystone Insert with Pigtail is a white female-to-female adapter featuring a flexible 3.5-inch lead that solves installation challenges in tight electrical boxes and wall plates. This passive module transmits uncompressed 4K@60Hz video and high-resolution audio without requiring external power. It snaps into standard keystone and QuickPort openings from Leviton, ICC, and Allen Tel, and its reversible design allows flexible orientation. Perfect for commercial integrators and home theater installations, it provides a clean, professional finish while relieving connector strain in shallow low-voltage brackets and behind-wall routing applications.

Features
Flexible 3.5-Inch Pigtail Lead: Eliminates excessive bend radius stress on in-wall cabling and allows easy installation in shallow low-voltage brackets and conference table pop-ups.
4K@60Hz Ultra HD Extension: Transmits bandwidth-intensive 4K@60Hz digital video signals without compression artifacts or data loss.
Universal Keystone & QuickPort Fit: Snaps securely into single- or multi-gang wall plates from leading brands, including Leviton, ICC, and Allen Tel.
Reversible Dual-End Insertion: Provides installation flexibility by allowing either end of the modular housing to snap directly into the keystone plate.
Passive Pass-Through Design: Requires no external power supply or software setup—simply plug your existing male HDMI cables into both ends.
Clean Architectural Finish: Features a clean white finish that integrates seamlessly with standard residential and commercial wall plates.

Specifications
Connector Type: HDMI Type-A Female to HDMI Type-A Female
Cable Style: Flexible Pigtail Dongle
Free Cable Length: 3.5 inches
Supported Video Resolution: Up to 4K @ 60Hz
Housing Material: High-Impact Flame-Retardant Molded Thermoplastic
Color / Finish: White
Wall Plate Compatibility: Standard Keystone openings, QuickPort plates (Leviton, ICC, Allen Tel, and major industry-standard wall plates)
Orientation: Vertical pass-through configuration
Signal Support: High-Definition Digital Video, Multi-Channel Digital Audio, HDCP Pass-Through
Dimensions (L x W x H): 1.50" x 3.50" x 5.75"
Weight: 0.12 lbs
