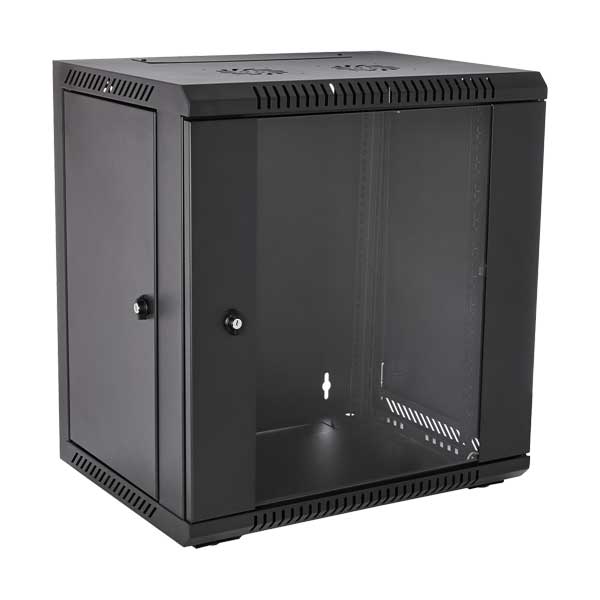

V7 12U Rack Wall Mount Glass Door Enclosure (RMWC12UG450-1N)

The V7 12U Rack Wall Mount Glass Door Enclosure (RMWC12UG450-1N) offers an excellent solution for securely installing and organizing rack equipment in settings with limited space, such as classrooms, retail environments, and network closets. Featuring a glass door for easy monitoring and removable side panels for quick access, this cabinet is constructed from durable materials including glass, cold-rolled steel, and steel. With a maximum weight capacity of 200 lbs, it is perfect for LAN switches and patch panels. The fully assembled design includes adjustable rails and numbered U positions for straightforward installation, along with optional casters for mobility. Additionally, the cabinet is RoHS certified and comes with a set of keys, screws, and hardware for mounting devices.

Features:
• For LAN Switch, Patch Panel
• 12U Rack Height
• 15.35" Rack Depth
• Wall Mountable, Floor Standing
• Black color
• Constructed from Glass, Cold-rolled Steel (CRS), and Steel
• 200 lb Maximum Weight Capacity
• Fully assembled, locking cabinet with glass door for monitoring equipment without opening.
• Fully adjustable mounting rails with numbered U positions and square holes for easy equipment mounting.
• Optional casters can be installed for mobility or placement under desks (casters sold separately).
• Removable top and bottom cable panels for a streamlined appearance and organized workspace.
• Made from high-grade, cold-rolled steel with a 5-year warranty.
• Easy access with locking door and sides.
• RoHS certified.

• Includes set of keys for doors and sides, 10 x screws and cage nuts for device mounting, and 6 x M8 wall mounting hardware.

Specifications:
• Rack Height: 12U
• Rack Depth: 15.35" (450mm cabinet depth, adjustable mounting depth 2.95-15.35 inches / 75-390 mm)
• Maximum Weight Capacity: 200 lb (90.7 kg)
• Material: High-grade cold-rolled steel, Glass
• Color: Black
• Form Factor: Wall Mountable, Floor Standing
• External: 23.6" (Width) x 25" (Height) x 17.7" (Length/Depth)
• Product Dim (L/W/H): 17.72 x 23.62 x 25 in (450 x 600 x 635 mm)
• Compliance: DIN41491, DIN41494, EIA/ECA-310-E, IEC 60297-3-100, RoHS
• Rack Width: 19in (482.6mm)
• Rack Hole Type: M6 Square
• Security: Key Lock
• Additional Info: Front (reversible) Glass Door, Steel Side Doors. 6.5 mm diameter hexagonal holes with ventilation rate of 85%.
• Weight: Approximately 49.60 lb (22.5 kg)
• Limited Warranty: 5 Year
