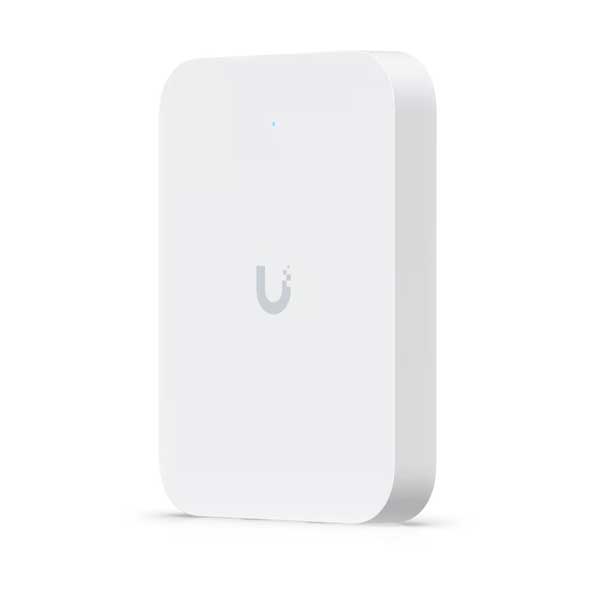

Ubiquiti Networks UniFi U7 In-Wall Dual-Band Wireless Access Point (U7-IW-US)

The Ubiquiti Networks UniFi U7 In-Wall Dual-Band Wireless Access Point (U7-IW-US) delivers cutting-edge WiFi 7 performance with dual 2.4/5 GHz radios and 4-stream technology. It integrates a 2.5 GbE PoE switch with input and output ports, streamlining connectivity and power management. Supporting MU-MIMO and OFDMA, it efficiently handles over 200 devices across a 115 m² coverage area. Advanced features include Band Steering, Fast Roaming (802.11r), Wireless Meshing, and robust security protocols like WPA3 and guest network isolation. Its compact in-wall design ensures discreet installation, managed via UniFi Network or UniFi OS apps.

Features:
Dual-radio 2.4/5 GHz bands: Provides connectivity on both common WiFi frequencies.
4-stream WiFi 7 access point: Offers high performance and supports the latest WiFi technology.
Integrated 2.5 GbE PoE switch: Simplifies device integration and power delivery with its multiple RJ45 ports.
2x2 MU-MIMO technology: Enhances efficient data transmission to multiple devices simultaneously.
Wireless Meshing: Allows for expanded network coverage by connecting multiple access points wirelessly.
Fast Roaming (802.11r): Enables seamless device transitions between access points.
Band Steering: Optimizes performance by directing devices to the appropriate band (2.4 GHz or 5 GHz).
Advanced security features: Supports WPA3 encryption, guest network isolation, and dynamic VLAN assignments.
MLO Support (SR mode): Uses both 2.4 GHz and 5 GHz bands, but only one radio at a time.

Specifications:
Dimensions: 137 x 98.7 x 30.2 mm (5.4 x 3.9 x 1.2").
WiFi Standard: WiFi 7 (802.11be), also backward compatible with Wi-Fi 6 (802.11ax), Wi-Fi 5 (802.11ac), and Wi-Fi 4 (802.11n).
Spatial Streams: 4.
Coverage Area: 115 m² (1,250 ft²).
Max. Client Count: 200+.
Uplink: 2.5 GbE.
Networking Interface: (3) 2.5 GbE RJ45 ports.
Built-In Switch: (1) PoE+ input and (1) PoE output.
Power Method: PoE/PoE+ (PoE+ is required for the single-port PoE output).
Max. Power Consumption: 13W (excluding PoE output).
Ambient Operating Temperature: -30 to 40° C (-22 to 104° F).
Ambient Operating Humidity: 5 to 95% noncondensing.
Certifications: CE, FCC, IC, NDAA Compliant.
Weight: 400 g (14.1 oz or 0.88 lbs).
Package weight: 1.235 lb.
UPC: 810084698785
