Ubiquiti Networks 10G UniFi Cloud Gateway Fiber with Integrated 4-Port 2.5GbE Switch | UCG-Fiber

The Ubiquiti UniFi Cloud Gateway Fiber (UCG-Fiber) is a powerful all-in-one networking solution designed for high-performance environments. This compact desktop gateway combines dual 10G SFP+ ports, a 10 GbE RJ45 interface, and four 2.5 GbE switch ports with integrated 30W PoE to deliver enterprise-grade routing and switching without requiring separate hardware.

Run the complete UniFi Application Suite—Network, Protect, Access, Talk, and Connect—directly on the device. Add an M.2 NVMe SSD for native video recording with UniFi Protect, manage 50+ network devices and 500+ concurrent users, and defend your infrastructure with 5 Gbps line-rate IDS/IPS protection.

The UCG-Fiber eliminates bottlenecks for fiber ISP connections and high-speed NAS storage while keeping power consumption minimal at just 29.4W. A built-in 0.96-inch display provides instant status visibility. Perfect for residential power users, remote offices, and prosumer networks seeking multi-gigabit performance and unified ecosystem control in a single, efficient platform.

Features
Multi-Gigabit 10G Core Throughput: Accelerate local and wide-area data transfers with dual 10G SFP+ cages and a dedicated 10 GbE RJ45 interface, eliminating bottlenecks for ISP fiber connections and high-speed NAS setups.
Full UniFi Application Suite Support: Run UniFi Network, Protect, Access, Talk, and Connect natively on the device without requiring a dedicated Cloud Key or external server hardware.
Integrated 30W PoE Output: Power an access point, camera, or access hub directly from the integrated switch, reducing cabling clutter and power adapter reliance.
Onboard NVMe NVR Video Storage: Capture smooth, multi-stream UniFi Protect surveillance footage by installing an M.2 NVMe SSD (up to 2 TB) directly into the integrated storage bay.
5 Gbps Threat Management: Inspect and defend your network in real time with line-rate Intrusion Detection and Prevention (IDS/IPS) powered by over 55,000 CyberSecure signatures.
Zero-License SD-WAN & Remote Access: Establish secure site-to-site tunnels with Site Magic, configure WireGuard or OpenVPN servers, and monitor distributed infrastructure without ongoing software fees.

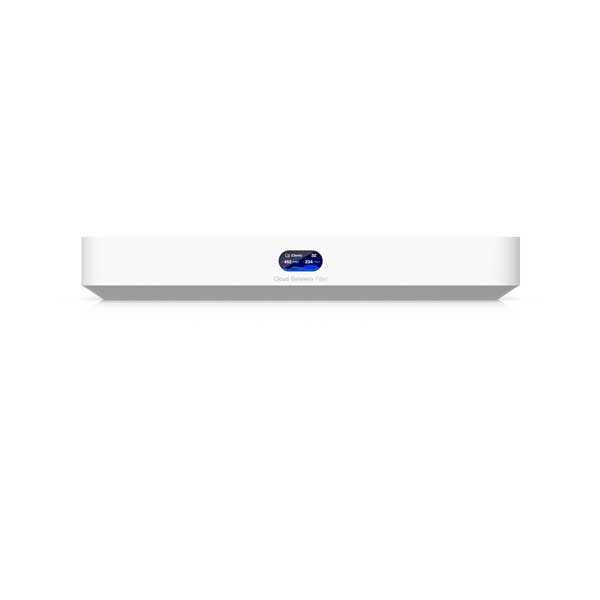

Compact Status Telemetry: Monitor real-time network health, port connectivity, and system alerts instantly on the integrated 0.96-inch LCM front display.

Specifications
Processor: Quad-Core ARM® Cortex®-A73 at 2.2 GHz
System Memory: 3 GB RAM
Onboard Storage Support: Selectable M.2 NVMe SSD slot (up to 2 TB)
IDS/IPS Throughput: 5 Gbps
Network Interfaces:
(2) 10G SFP+ ports (10G/1G)
(1) 10 GbE RJ45 port (10G/2.5G/1G)
(4) 2.5 GbE RJ45 ports (2.5G/1G/100M/10M)
Default WAN Ports: (1) 10G SFP+, (1) 10 GbE RJ45 (Configurable up to 6 WAN ports)
PoE Capabilities: (1) PoE+ output port (50–57V) with a 30W power budget
Management Interfaces: Ethernet, Bluetooth
Device Management Capacity: 50+ UniFi network devices
Client Capacity: 500+ concurrent connected users
UniFi Protect Camera Limits: Up to (15) HD, (8) 2K, or (5) 4K cameras
Access Control: Manages up to 50 UniFi Access Hubs
Power Method: External 54V DC / 1.1A power adapter (included)
Maximum Power Consumption: 29.4W (excluding PoE output)
Display: 0.96" LCM status screen
Enclosure: Polycarbonate desktop chassis
Operating Temperature: 0 to 40° C (32 to 104° F)
Operating Humidity: 5 to 95% non-condensing
Compliance & Certifications: NDAA Compliant, CE, FCC, IC, SRRC, Anatel
