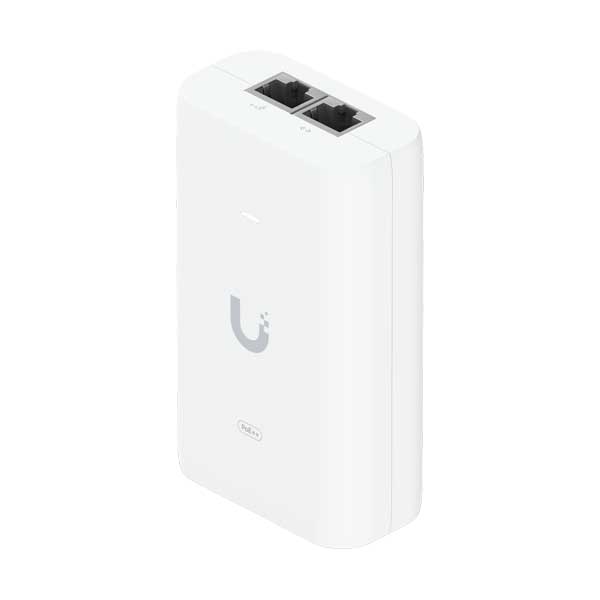

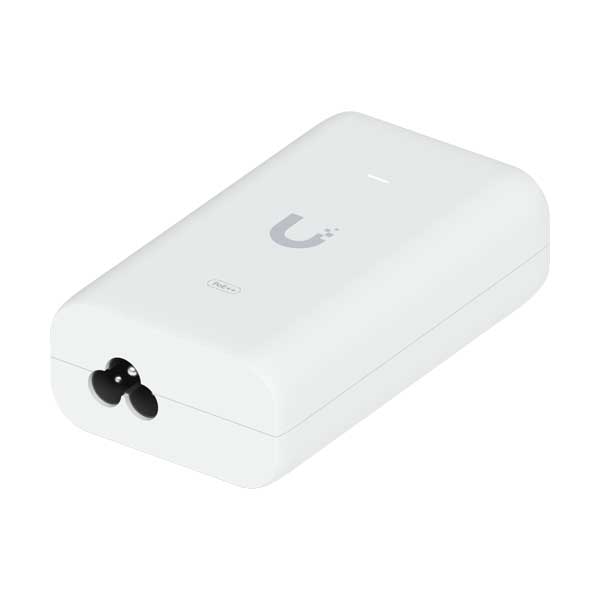

Ubiquiti Networks UniFi 10G 60W PoE++ Adapter (UACC-PoE++-10G)

The Ubiquiti Networks UniFi 10G 60W PoE++ Adapter (UACC-PoE++-10G) supplies up to 60W of PoE++ power to UniFi devices, minimizing reliance on PoE switch power sources. It supports a Multi-Gigabit LAN connection and includes surge, peak pulse, and overcurrent protection. Equipped with an RJ45 data input, grounded AC cable, and PoE++ output, it also features an LED status indicator for monitoring. This PoE++ injector is engineered to efficiently power compatible UniFi equipment while delivering high-speed 10 Gigabit connectivity.

Features:
Delivers up to 60W of PoE++
Surge, peak pulse, and overcurrent protection
Contains RJ45 data input, AC cable with earth ground, and PoE++ output
LED indicator for status monitoring

Specifications:
Product Type: PoE++ injector.
Output Power: 60W.
Output Voltage: 54V DC at 1.12A.
Input Voltage: 100-240V AC at 50/60Hz.
Data Rate: Supports 10 Gigabit LAN connections.
Power Delivery:
PoE++ Standard: Supports 802.3bt (PoE++).
4-pair Powering: Uses pins 1, 2, 4, and 5 for positive (+) and pins 3, 6, 7, and 8 for negative (-).
Efficiency: >88%.
Clamping Protection: 11V for data and 60V for power.
Surge Protection: Includes both difference and common mode protection.
Other Features:
Input Ports: RJ45 shielded socket.
LED Indicator: For status monitoring.
NDAA Compliant: Yes.
Certifications: CE, FCC, IC, UL, UKCA, KC, CCC, RoHS.
Operating Temperature: 0 to 40°C (32 to 104°F).
Operating Humidity: 10 to 95% non-condensing.
Dimensions: 106 x 63 x 34 mm (4.2 x 2.5 x 1.3 inches).
Weight: 7.4 oz.
UPC: 810084699508
