Ubiquiti Networks Cloud Gateway Max (UCG-MAX)

The Ubiquiti Networks Cloud Gateway Max (UCG-MAX) is a compact yet powerful UniFi gateway tailored for small to medium businesses and advanced users seeking centralized network management and sophisticated routing capabilities. It delivers high-security performance with application-aware firewall rules, IDS/IPS, and filtering, alongside 2.5 Gbps networking speeds. The device supports UniFi OS with various applications, license-free SD-WAN, multiple VPN protocols, and WAN redundancy with failover and load balancing. Capable of managing over 300 clients and 30 UniFi devices, it includes a 512 GB SSD for UniFi Protect storage and features a quad-core 1.5 GHz processor with 3 GB DDR4 memory.

Features
UniFi OS: Supports UniFi Network, Protect, Talk, Access, and Connect.
Security: Includes application-aware firewall rules, IDS/IPS, and filtering options. Supports VLAN/subnet-based traffic segmentation.
Networking: Offers license-free SD-WAN, various VPN types (WireGuard, L2TP, OpenVPN, IPsec), redundant WAN with failover and load balancing, and QoS.
Scalability: Supports up to 300+ clients and over 30 UniFi devices.
Storage: Features a 512 GB SSD for UniFi Protect.

Specifications
Dimensions: 141.8 x 127.6 x 30 mm (5.6 x 5 x 1.2 inches)
Weight: 519 g (1.1 lb) with SSD, or 460 g (1 lb) without
Enclosure Material: Polycarbonate
Processor: Quad-core ARM Cortex-A53 at 1.5 GHz
System Memory: 3 GB DDR4
Storage: 512 GB NVMe SSD (for UniFi Protect)

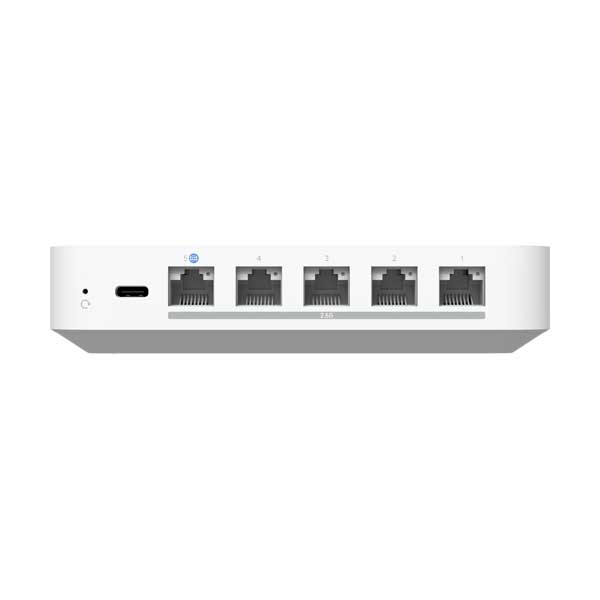

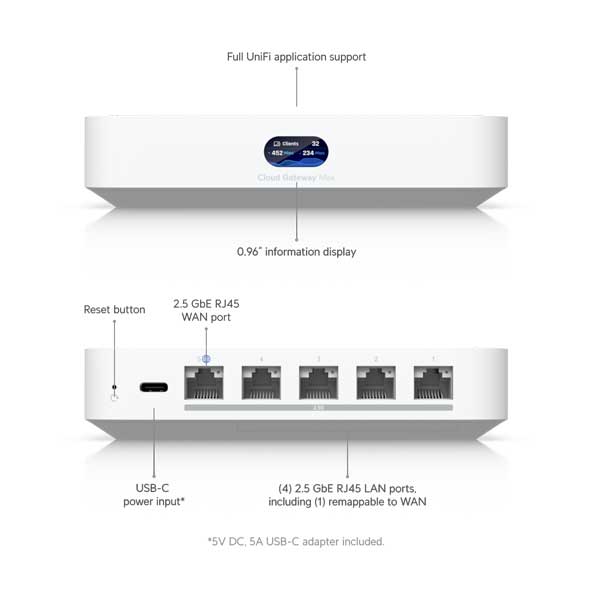

Networking Interfaces: (1) WAN: 1/2.5 GbE RJ45 port and (4) LAN: 1/2.5 GbE RJ45 ports (one can be remapped to a second WAN port)
IDS/IPS Throughput: 1.5 Gbps
Power Method: USB Type-C (5V DC/5A)
Max. Power Consumption: 16.1W
Display: 0.96" status LCM display
Operating Temperature: -10 to 40° C (14 to 104° F)
UCG-Max (512GB): 810084697153
