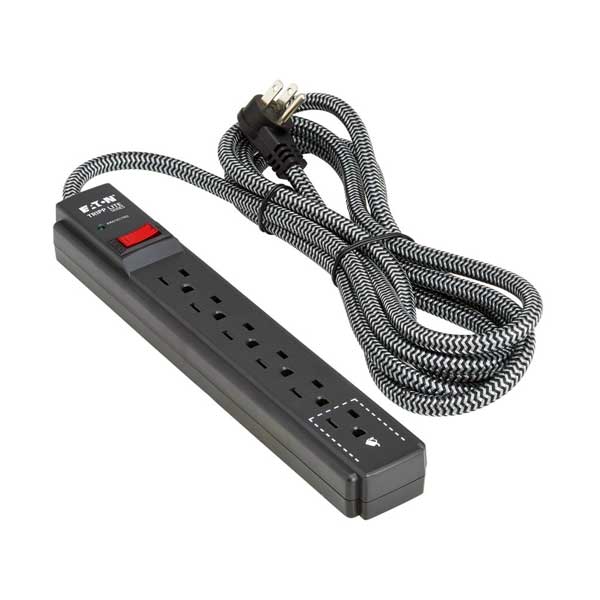

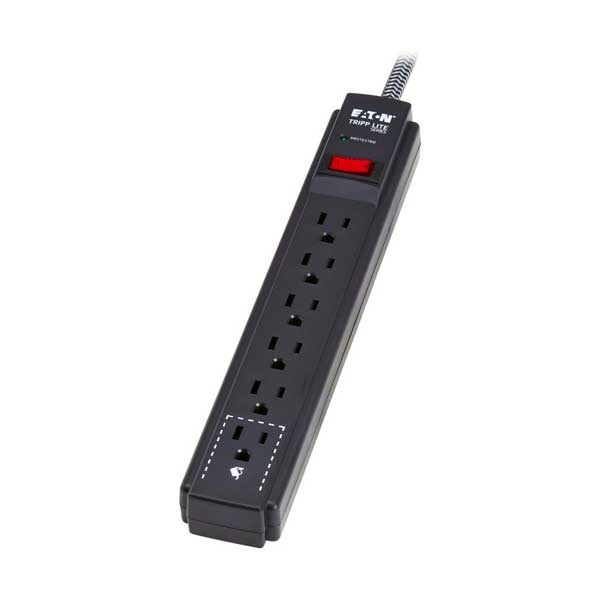

Features
High-Capacity 1200-Joule Suppression: Defends computers, network peripherals, audio/video components, and point-of-sale gear against sudden power spikes and surges.
Extended 10-Foot Braided Cord: Features a heavy-duty 14 AWG SJT braided jacket that resists tangles, prevents fraying, and easily spans the distance between workstations and remote wall outlets.
Low-Profile Right-Angle Plug: Fits flat against wall receptacles, allowing furniture, desks, and equipment racks to sit flush against the wall without pinching the cable.
Diagnostic "Protection Present" LED: Built-in green indicator confirms suppressor operation at a glance, eliminating guesswork regarding active surge defense.
Automatic Disconnect / Fail-Safe Shut-Off: Automatically cuts power to connected receptacles if the internal surge components ever become compromised by an extreme spike, preventing subsequent unprotected power flow.
Integrated 15A Combo Switch & Circuit Breaker: Provides convenient one-touch master power control alongside resettable overload protection to prevent circuit overdraw.
Full-Time EMI/RFI Noise Filtering: Cleans incoming AC line noise to prevent audio/video interference, system lockups, and electronic performance degradation.
Flexible Wall or Desk Mounting: Rear keyhole mounting slots enable secure, clean installation on walls, baseboards, desks, or workbenches.
Ultimate Lifetime Insurance & Warranty: Backed by Eaton's Lifetime Limited Warranty and up to $20,000 Ultimate Lifetime Insurance for connected equipment.
Specifications
Input Voltage: 120V AC (110–125V recommended, 50/60 Hz)
Circuit Breaker Capacity: 15 Amps (Resettable illuminated combo on/off switch)
Surge Energy Suppression Rating: 1200 Joules
Suppression Response Time: < 1 nanosecond (instantaneous clamping)
Protection Modes: Full normal mode (H-N) and common mode (N-G / H-G) line suppression
UL 1449 Let-Through Rating: 500 Volts
Total Outlets: (6) NEMA 5-15R Receptacles (Black)
Outlet Orientation & Spacing: Single row of 6 outlets, 28.5 mm center-to-center spacing
Input Plug Type: NEMA 5-15P (Right-Angle, White)
Power Cord Details: 10 ft (3 m), 14 AWG, SJT, Black Braided Fabric
Diagnostic Indicators: Green LED indicates "protection present" status
Housing Construction: High-impact, fire-retardant black plastic
Keyhole Mounting Slots: Dual slots (101 mm distance between slots; 28 mm slot height)
Operating Temperature Range: 32°F to 104°F (0°C to 40°C)
Operating Humidity Range: 20% to 85% RH (Non-condensing)
Safety Certifications: UL 1449 Listed, CSA Std. C22.2 No. 8-M1986 / CSA C22.2 No. 269.3
Warranty Coverage: Lifetime Limited Warranty (Worldwide) + $20,000 Connected Equipment Insurance
Dimensions (L x W x H): 1.30 x 1.85 x 11.024 inches
Weight: 1.02 lb
