Tripp Lite 1000VA 560W 120V Line-Interactive LCD Tower UPS | 8-Outlet | OMNIVS1000LCD

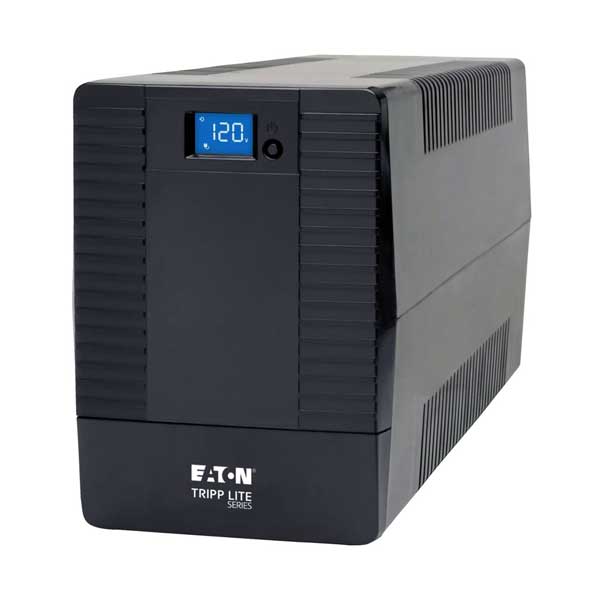

The Eaton Tripp Lite OMNIVS1000LCD is a 1000VA/560W line-interactive UPS tower designed to protect home offices, retail terminals, and workstations from power interruptions. Its Automatic Voltage Regulation (AVR) corrects brownouts and overvoltages without draining the battery, while 8 NEMA outlets—6 with battery backup and surge protection plus 2 surge-only—safeguard critical and non-critical equipment. The intuitive touchscreen LCD displays real-time voltage, load, and battery status, while silent backup mode keeps alarms quiet during normal transfers. Over 95% energy efficiency reduces heat and power consumption. Additional features include integrated phone/network surge protection, USB connectivity with HID support for Windows/macOS/Linux, cold-start capability, and a user-replaceable battery. Backed by $200,000 Ultimate Lifetime Insurance and ENERGY STAR certification, it delivers reliable, clean power for seamless business continuity.

Features
Automatic Voltage Regulation (AVR): Automatically boosts input voltages between 89V and 108V by 18% and trims voltages between 128V and 149V by 15%, maintaining continuous nominal 120V output without cycling the battery.

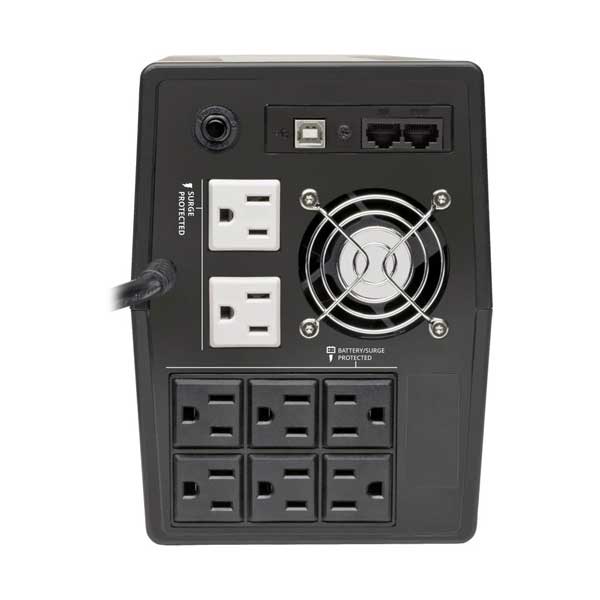

Dual Protection Outlets: Features 8 total NEMA 5-15R receptacles—6 battery backup outlets with surge suppression for critical loads and 2 surge-only outlets for non-critical peripherals.
Touchscreen LCD Status Interface: Real-time, front-panel reporting tracks input voltage, output voltage, load percentage, battery charge level, and fault/overload alerts at a glance.
Home- & Office-Friendly Silent Backup Mode: Audible alarms stay muted during routine battery power transfers, sounding only when battery reserves run critically low or a system fault requires immediate attention.
Built-in Dataline Surge Protection: Integrated single-line RJ11/RJ45 jacks defend phone, DSL, and network Ethernet connections against lightning and transient power surges.
High Efficiency & Low Thermal Output: Achieves over 95% operating efficiency to reduce electricity consumption, lower BTU thermal emissions, and extend overall equipment life.
USB Connectivity & HID Support: HID-compliant USB port enables plug-and-play integration with native Windows, macOS, and Linux power management tools, as well as Eaton PowerAlert software.
Cold-Start Capability & Replaceable Battery: Boots connected systems directly from the battery during a blackout; internal VRLA battery is user-replaceable via an accessible battery door.

Specifications
UPS Topology: Line-Interactive
Output Capacity: 1000 VA / 560 Watts
Nominal Input Voltage: 120V AC (Single-phase, 50/60 Hz)
Nominal Output Voltage: 110V / 115V / 120V (120V nominal in battery mode)
Output Voltage Regulation: Line mode: 120V (+6% / -12%); Battery mode: 120V (±10%)
Output Waveform: Pure sine wave (Line mode); PWM sine wave (Battery mode)
Transfer Time: 6 milliseconds typical (10 milliseconds maximum)
Outlets: 8 Total NEMA 5-15R (6 Battery Backup + Surge, 2 Surge-Only)
Input Connection: NEMA 5-15P plug with 1.5 m (5 ft) cord
Battery Type: Valve Regulated Lead Acid (VRLA), 12V DC system
Runtime: 12 minutes at half load (280W); 2 minutes at full load (560W)
Battery Recharge Time: 8 hours (10% to 90%)
Surge Energy Rating: 316 Joules (instantaneous response time)
EMI/RFI Noise Filtering: Yes
Operating Temperature Range: 32° to 104°F (0° to 40°C)
Housing Material & Form Factor: Durable ABS plastic; Tower (0U)
Connected Equipment Insurance: $200,000 Ultimate Lifetime Insurance (U.S., Canada, and Puerto Rico)
Compliances & Certifications: UL 1778, CSA certified, NOM, RETIE, FCC Class A, RoHS, ENERGY STAR certified
Unit Dimensions (L x W x H): 15.0 x 5.5 x 7.5 inches
Shipping Dimensions (L x W x H): 19.5 x 9.3 x 11.7 inches
Product Weight: 19.26 lbs
