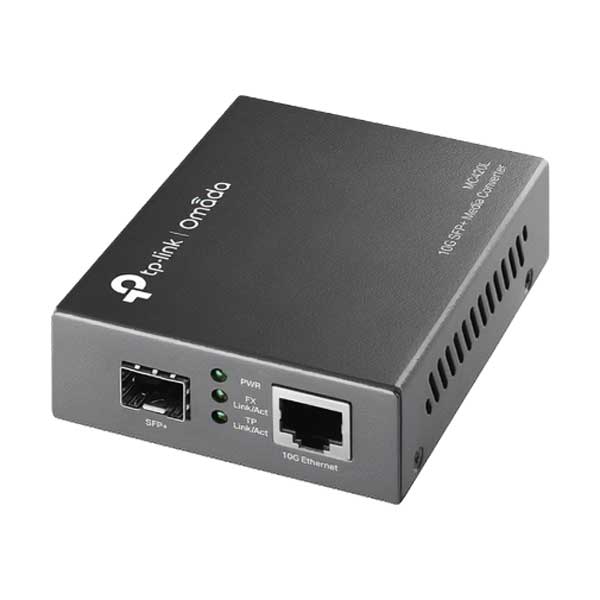

TP-Link Omada 10G Multi-Gigabit SFP+ Media Converter | MC420L

The TP-Link Omada MC420L is a professional-grade 10G media converter that bridges fiber and copper networks with seamless speed. It converts 10G SFP+ fiber signals to Multi-Gigabit RJ45 (1G/2.5G/5G/10Gbps) with auto-negotiation for maximum compatibility. Features include hot-swappable SFP+ ports, intelligent duplex mode adjustment, and compact plug-and-play design. Ideal for server rooms, data centers, and enterprise environments requiring reliable high-speed connectivity with minimal downtime.

Features & Benefits
Ultra-High-Speed 10G Connectivity: Future-proof your network with support for up to 10Gbps throughput, ensuring maximum data transfer rates for bandwidth-heavy applications.
Multi-Gigabit Versatility: The RJ45 port features Auto-Negotiation, supporting 1G, 2.5G, 5G, and 10G speeds to provide total compatibility with diverse hardware.
Hot-Swappable SFP+ Port: Minimize downtime with an FX port that supports hot-swapping, allowing for easy transceiver changes without powering down the system.
Smart Auto-Negotiation: Automatically adjusts between Half-Duplex and Full-Duplex transfer modes to optimize performance based on connected device capabilities.
Plug-and-Play Integration: Compact, standalone design with an external power adapter allows for quick deployment in server rooms, offices, or industrial enclosures.

Technical Specifications
Standards and Protocols: IEEE 802.3ab, IEEE 802.3an, IEEE 802.3z, IEEE 802.3ae, IEEE 802.3aq, IEEE 802.3x
Interface: 1× SFP+ Port
1× 1G/2.5G/5G/10Gbps RJ45 Port (Auto-MDI/MDIX)
Network Media (10GBASE-T): 1000BASE-T/2.5GBASE-T/5GBASE-T: UTP Cat.5e or above (max 100m)
10GBASE-T: UTP Cat.6 (max 55m) or STP Cat.6 or above (max 100m)
Network Media (10GBASE-R): Multi-mode/Single-mode SFP+ module
Max Power Consumption: 4.12W
LED Indicators: PWR, Link/Act
Operating Temperature: 0℃ to 50℃ (32℉ to 122℉)
Certification: UL, RoHS
Dimensions (L x W x H): 3.7 x 2.9 x 1.1 inches
