Features
Next-Gen Wi-Fi 7 Performance: Delivers aggregate dual-band speeds up to 3.2 Gbps to handle 4K/8K media streaming, high-speed cloud backups, and intensive device traffic.
Multi-Link Operation (MLO): Enables client devices to transmit and receive data across multiple frequency bands concurrently, drastically cutting latency and improving connection stability.
Expanded Wireless Coverage: Four high-gain external antennas combine with Beamforming technology to focus wireless energy directly toward connected clients, eliminating coverage dead zones across up to 3-bedroom layouts.
Full Gigabit Wired Architecture: Outfitted with 1× 1 Gbps WAN port and 4× 1 Gbps LAN ports to maximize throughput for NAS drives, workstations, gaming consoles, and smart hub deployments.
Seamless EasyMesh Compatibility: Integrates with standard EasyMesh routers and range extenders to build a unified, single-SSID whole-home mesh network with smart roaming.
Built-in VPN Client & Server: Runs remote encrypted tunnels (OpenVPN, WireGuard, PPTP, and L2TP) directly at the router level without requiring third-party software on each endpoint.
Enterprise-Level HomeShield Security: Protects connected devices with real-time IoT network scanning, intrusion prevention, malicious site blocking, and customizable parental controls.
Versatile Operating Modes: Easily toggles between standard Router Mode and standalone Access Point Mode to suit diverse home or office network topologies.
Streamlined Network Management: Simplifies deployment, client monitoring, and parental control scheduling via the intuitive TP-Link Tether mobile app and browser-based GUI.
Specifications
Wireless Standards: IEEE 802.11be/ax/ac/n/a (5 GHz), IEEE 802.11be/ax/n/g/b (2.4 GHz)
Wi-Fi Speeds:
5 GHz: Up to 2594 Mbps (802.11be)
2.4 GHz: Up to 688 Mbps (802.11be)
Spatial Streams & Multiplexing: 4 Streams, 2×2 MU-MIMO, OFDMA, Airtime Fairness, DFS
Modulation & Wi-Fi 7 Technologies: 4K-QAM, Multi-Link Operation (MLO), Multi-RUs

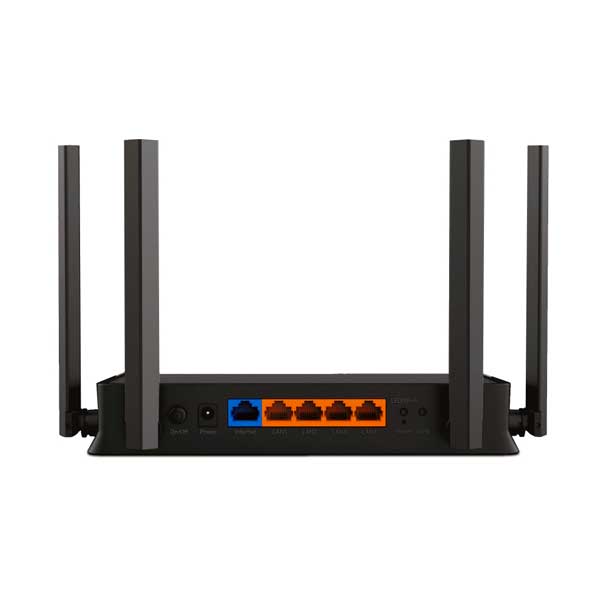

Ethernet Ports: 1× 10/100/1000 Mbps WAN Port, 4× 10/100/1000 Mbps LAN Ports
Hardware Controls: Power On/Off Button, LED/Wi-Fi Button, WPS Button, Reset Button

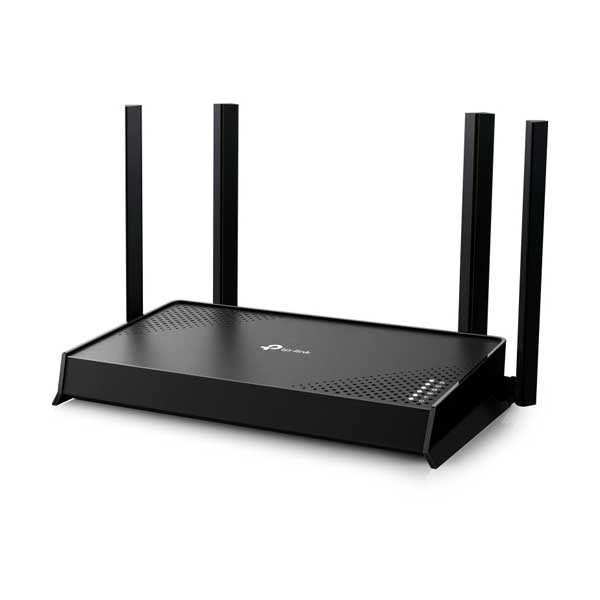

Antenna Type: 4× Fixed External Antennas with Beamforming
VPN Protocols (Client & Server): OpenVPN, WireGuard, PPTP, L2TP
Wireless Security & Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
Network Security: SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway, HomeShield Security
Network Protocols: IPv4, IPv6
WAN Configuration Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
Power Requirements: 12 V ⎓ 2 A (US Version) / 12 V ⎓ 1.5 A (EU Version)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Operating Humidity: 10% to 90% (non-condensing)
Regulatory Certifications: FCC, CE
