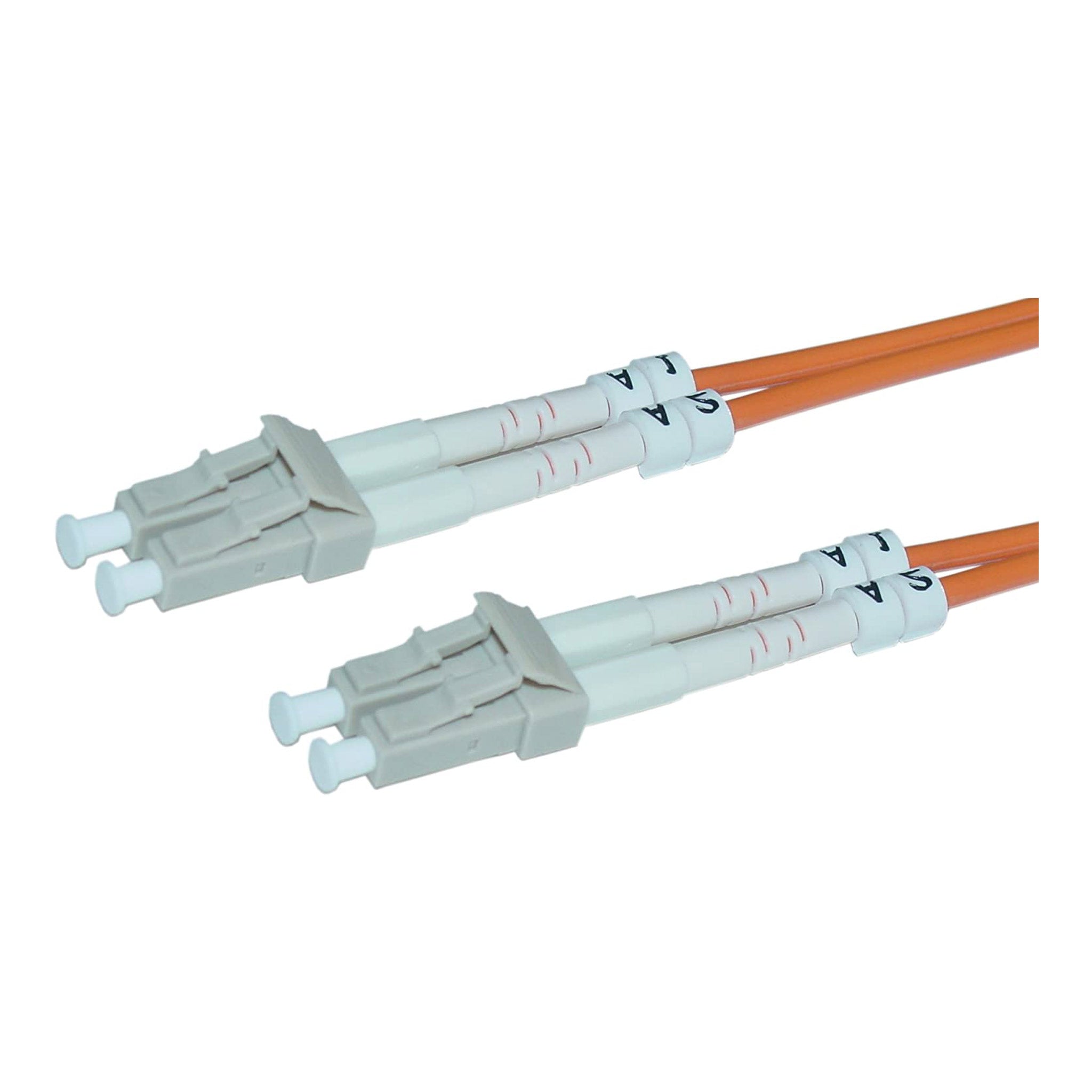

SR Components FOPCLL5 LC-LC MM 5M Fiber Optic Cable LC-LC 5 Meter Multi Mode Duplex 62.5 Micron

SKU: FOPCLL5 MFR# FOPCLL5

Sale price$16.95


Description

  • RoHS Compliant
  • Standard & Custom Configurations
  • Meets Telecordia-GR-326-CORE standards
  • Easy Installation
  • Environmentally Stable
  • Low Insertion loss, High Return Ioss
  • Ultra Low Back Reflection
  • For 3.0mm, 2.4mm, 2.0mm Jacket or 900um Buffer
  • Single Mode Fiber: ITu - TG. 652D
  • Multi Mode Fiber: ITU-TG. 651
  • Fiber Min. Bending Radius: 10D (Static)

The fiber optic patch cords are mainly used on patch panel or for the connection between outlets and terminal equipments. The quality of connectors and fibers are mainly determined by the insertion loss and return loss.

We supply duplex LC-LC multi mode fiber optic patch cords, these patch cords are with 50/125 and 62.5 / 125 multi mode fiber, and connector types in PC, UPC polish are available. It's fully complied with IEC and Telcordia GR-326 standards; they are good prices. fast delivery and good looking and packing.

Other key Words: LC-LC fiber optic patch cable; LC-LC fiber optic

Applications

  • High Bit Data Rate Transmission
  • Telecommunication Networks
  • Data Processing Networks
  • Metro Applications
  • Testing Instruments
  • Military, Medical, and Industrial
  • Active Device Termination
  • CATV System
  • Active Device Terminations
  • LAN \ WAN
  • FTTx (including FTTB, FTTC, FTTD, FTTH)
  • Fiber Type: SM
    • Connector Type : FC, SC, ST, LC, E-2000, MU  | MTRJ
    • Insertion Loss (Typical): ≤ 0.2dB  |  â‰¤ 0.4dB
    • Insertion Loss (Max): ≤ 0.3dB  |  â‰¤ 0.5dB
    • Return Loss (Typical) PC: ≥ 50dB  |  â‰¥ 45dB
    • Return Loss (Typical) UPC: ≥ 55dB
    • Return Loss (Typical) APC: ≥ 65dB
  • Fiber Type: MM
    • Connector Type : FC, SC, ST, LC, E-2000, MU  | MTRJ
    • Insertion Loss (Typical): ≤ 0.2dB  |  â‰¤ 0.4dB
    • Insertion Loss (Max): ≤ 0.3dB  |  â‰¤ 0.5dB
    • Return Loss (Typical) PC: ≥ 50dB  |  â‰¥30dB
    • Return Loss (Typical) UPC: ≥ 55dB
  • Mating Durability: ≤ 0.2dB
  • Durability: ≥ 1,000 times
  • Temperature Stability: ≤ 0.2dB Max. Increase
  • Working Temperature: -20°C~+70°C
  • Storage Temperature: -40°C~+85°C
