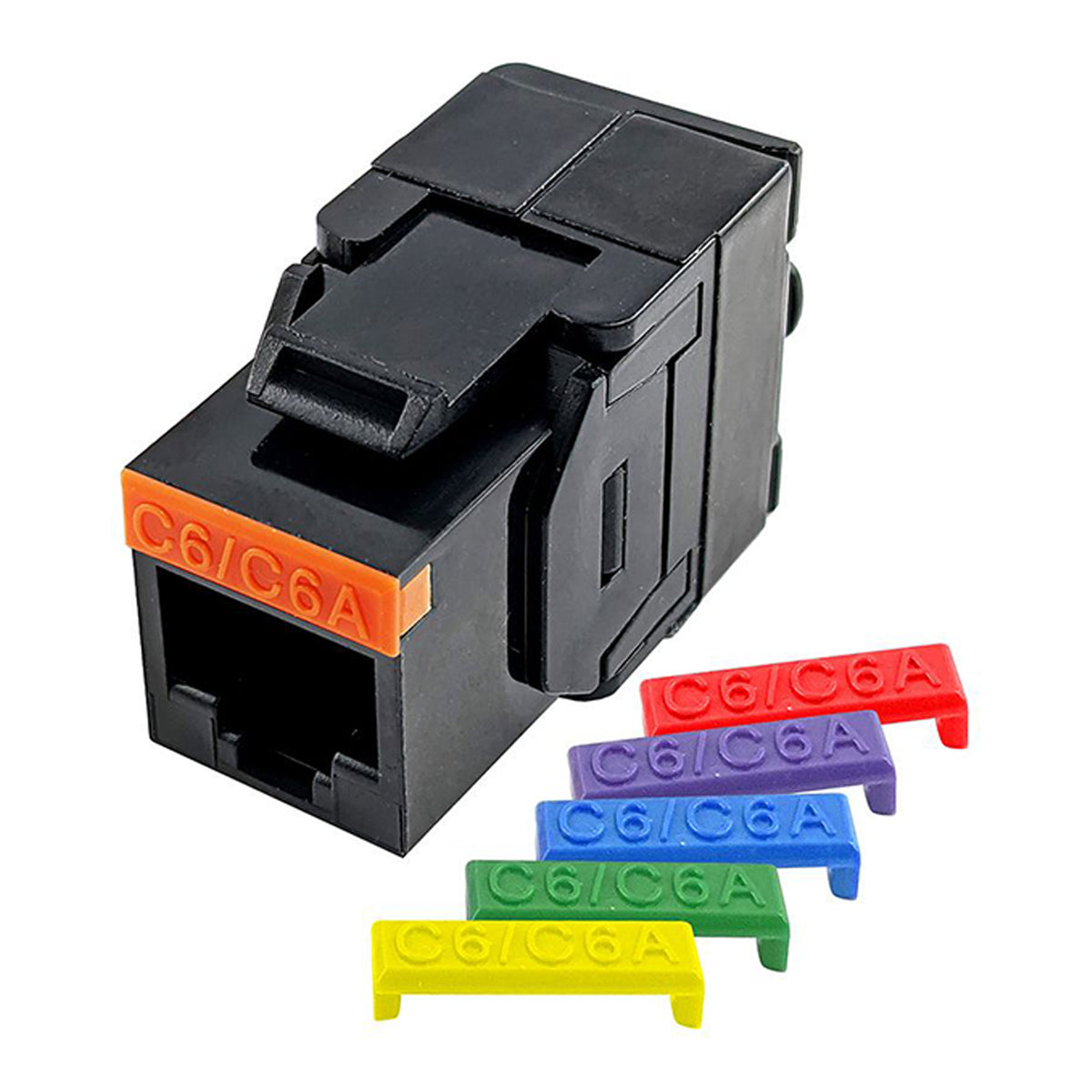

Simply45 S45-3600B Cat6/6A UTP 180° Black Toolless Keystone Jack 110 Style with 6-Color Snap-On ID Bars

SKU: S45-3600B MFR# S45-3600B

Sale price$6.95


Description

  • Interchangeable (6) Color Coded Snap-On Bars
  • Narrow Design Supports Side-by-Side Installation in Patch Panels
  • Enhanced Crosstalk (AXT) Cancellation
  • Wire Layout Diagram Simplifies Termination and Reduces Untwisting of Cable Wires
  • Supports both Cat6a UTP and Cat6 UTP Cabling
  • Toolless Design Requires No Punchdown or Specialty Tooling
  • 180° Degree Design is Ideal for Patch Panel Applications
  • UL Listed
  • Professional Quality
  • USA Designed
  • TAA Compliant

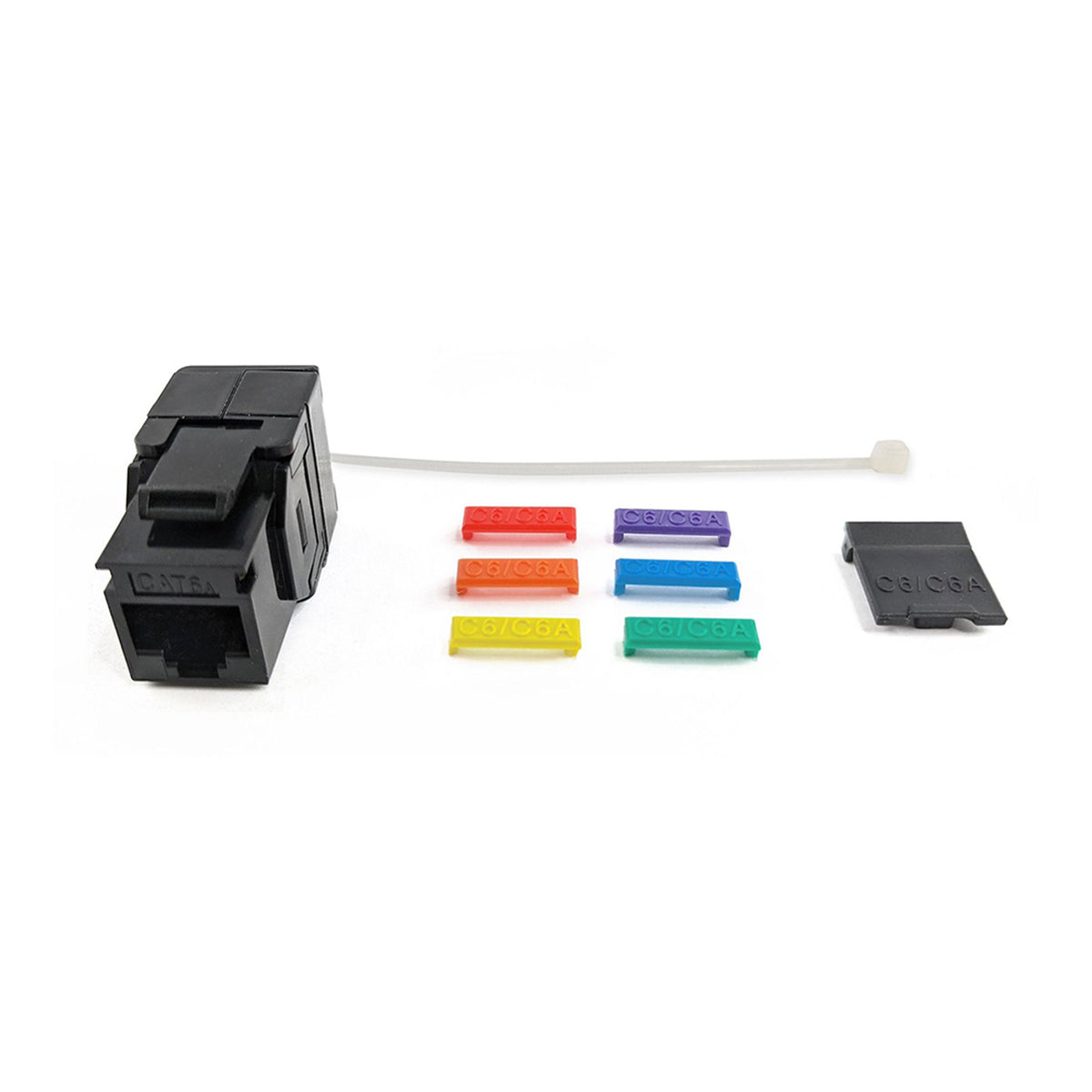

Simply45 S45-3600B Cat6/6A UTP 180° Black Keystone Jack, Toolless, Connector Dust Cover, w/6-Color Snap-On ID Bars Included.  1ea/bag

Standards:

  • ISO/IEC 11801 Class Ea, E
  • ANSI/TIA 568.2-D
  • ANSI/TIA 1096-A
  • ANSI/TIA 606-C
  • EN 50173
  • IEC 60603-7-51
  • PoE/PoH: IEEE 802.3bt Type 3, 4
  • UL 1863, cULus Listed

Electrical:

  • Insulation Resistance: >=500 MΩ
  • Dielectric Withstand Volt: 100VAC
  • RMS 60Hz
  • Contact Resistance: <=20mΩ
  • Current Rating: 1.5A at 68F

Mechanical:

  • 23AWG Wire Conductors – Cat6a UTP; Cat6 UTP cabling
  • Plug Insertion Life: >=750 times plug in
  • Contact Force 99.2g (3.5oz) FCC Plug
  • Plug Retention Force: 30lb (133n/13/3kg)
  • Temperature (Installation): -40F to 150F (-40C to 66C)
  • Temperature (Operating: -10C to 60C
  • Contact Plating: 50μ 24ct gold
