Description
- S45-1700 – Cat6/6a Unshielded – Staggered – Pass Through RJ45
- Unshielded Pass Through RJ45 Modular Plugs
- 23AWG Solid (Cat6/6a UTP Solid)
- Hi/Lo Stagger Wire Alignment
- Wire Conductors 1.00-1.10mm/0.039″-0.043″
- Max Cable OD 7.4mm (0.291″)
- UL94 V0 Commercial Rated
- USA Designed
- TAA Compliant
- Red Tint

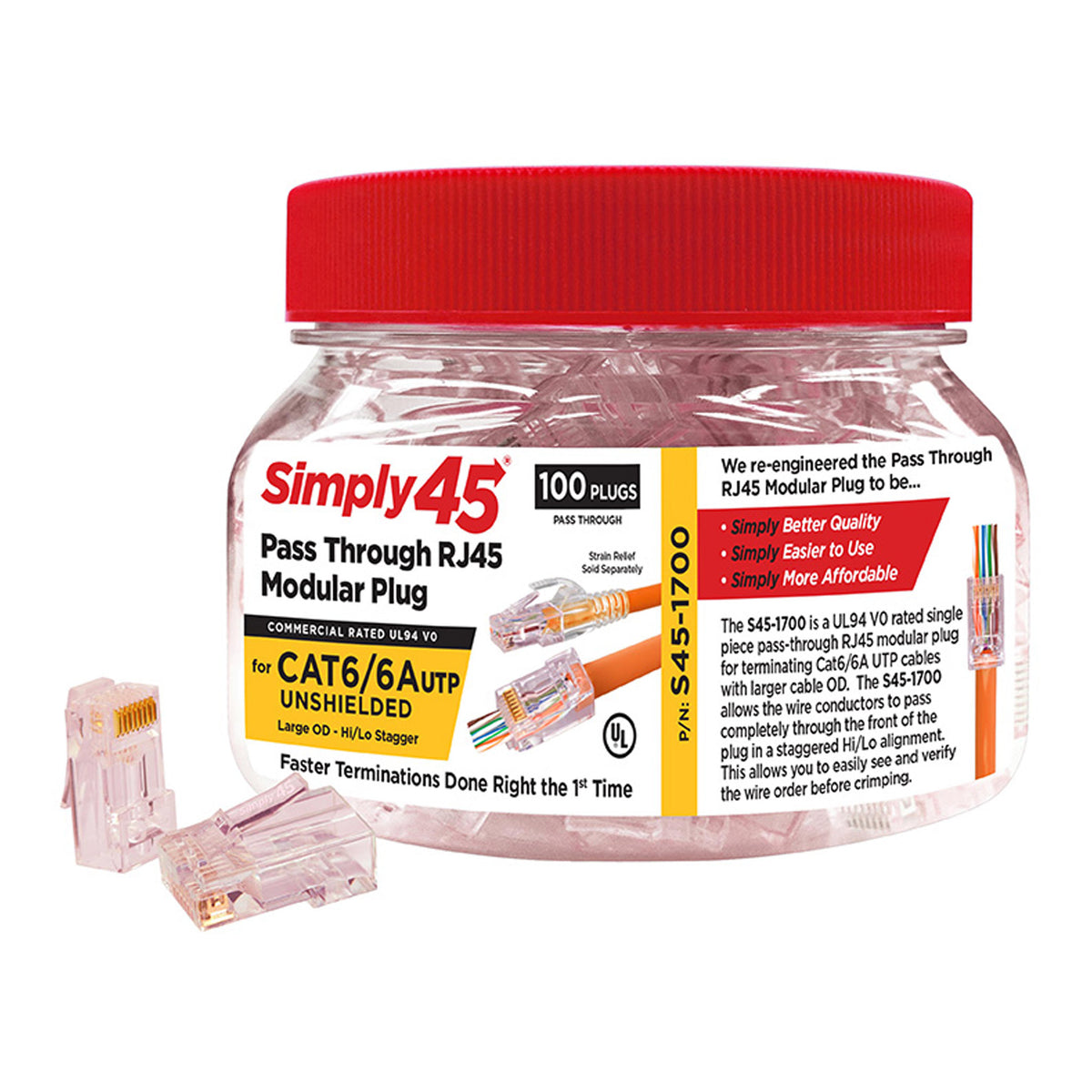

- 100-Piece Jar
Simply45 S45-1700 CAT6/6a UTP Unshielded Pass-Through Hi/Lo Stagger Red Tint RJ45 Modular Plug 100-Piece Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

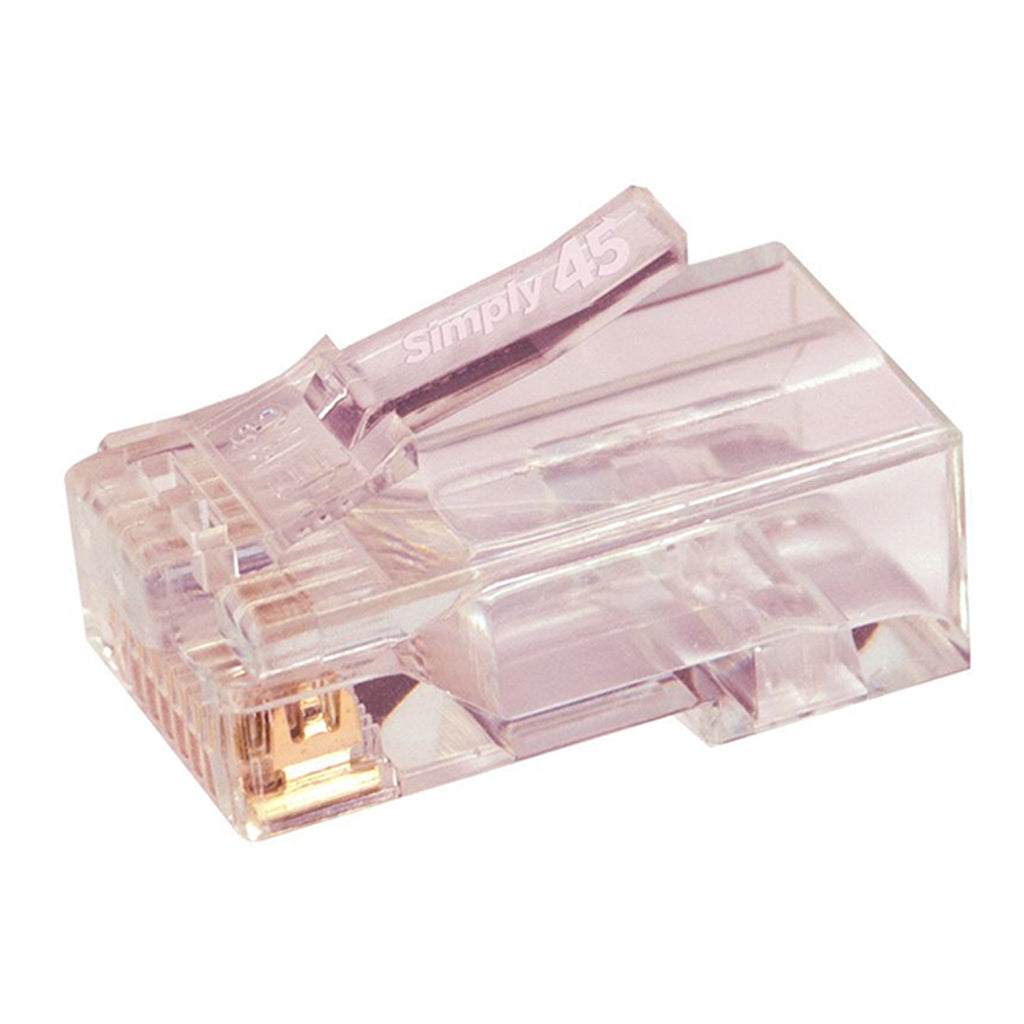

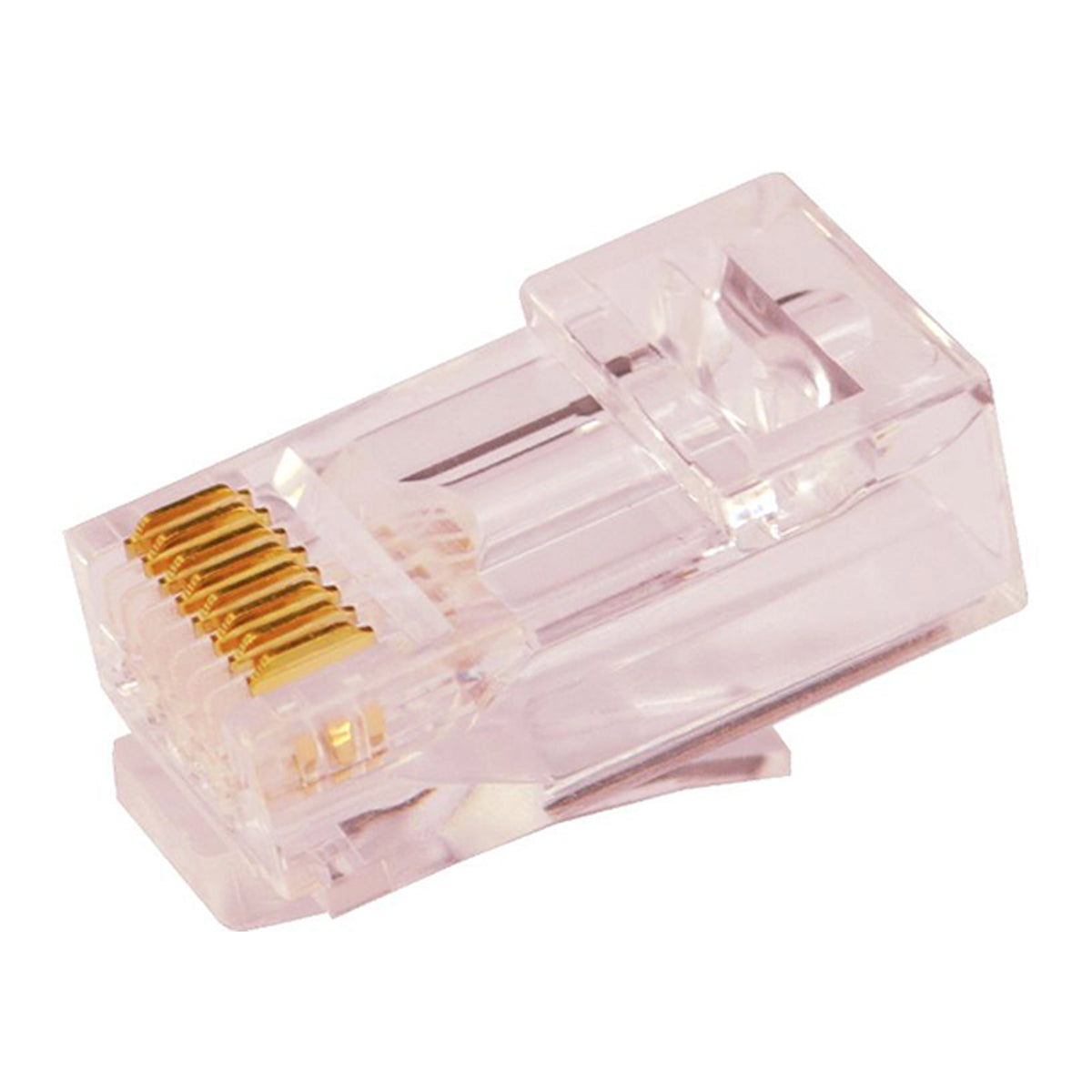

Single Piece Design. The S45-1700 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea. Supports 10GBaseT performance applications over unshielded twisted pair cables.
Recommended for Solid LAN Cables. The S45-1700 is ideal for most solid Cat6 UTP (unshielded twisted pair) and solid Cat6a UTP LAN cables with a maximum cable diameter of 7.40mm (0.291”). For stranded unshielded LAN cables, we recommend trying our S45-1500 or S45-1600. If neither the S45-1500 and S45-1600 do not fit your unshielded stranded cable, we recommend using Standard WE/SS style RJ45. Please visit our Standard WE/SS Product Line for more information.

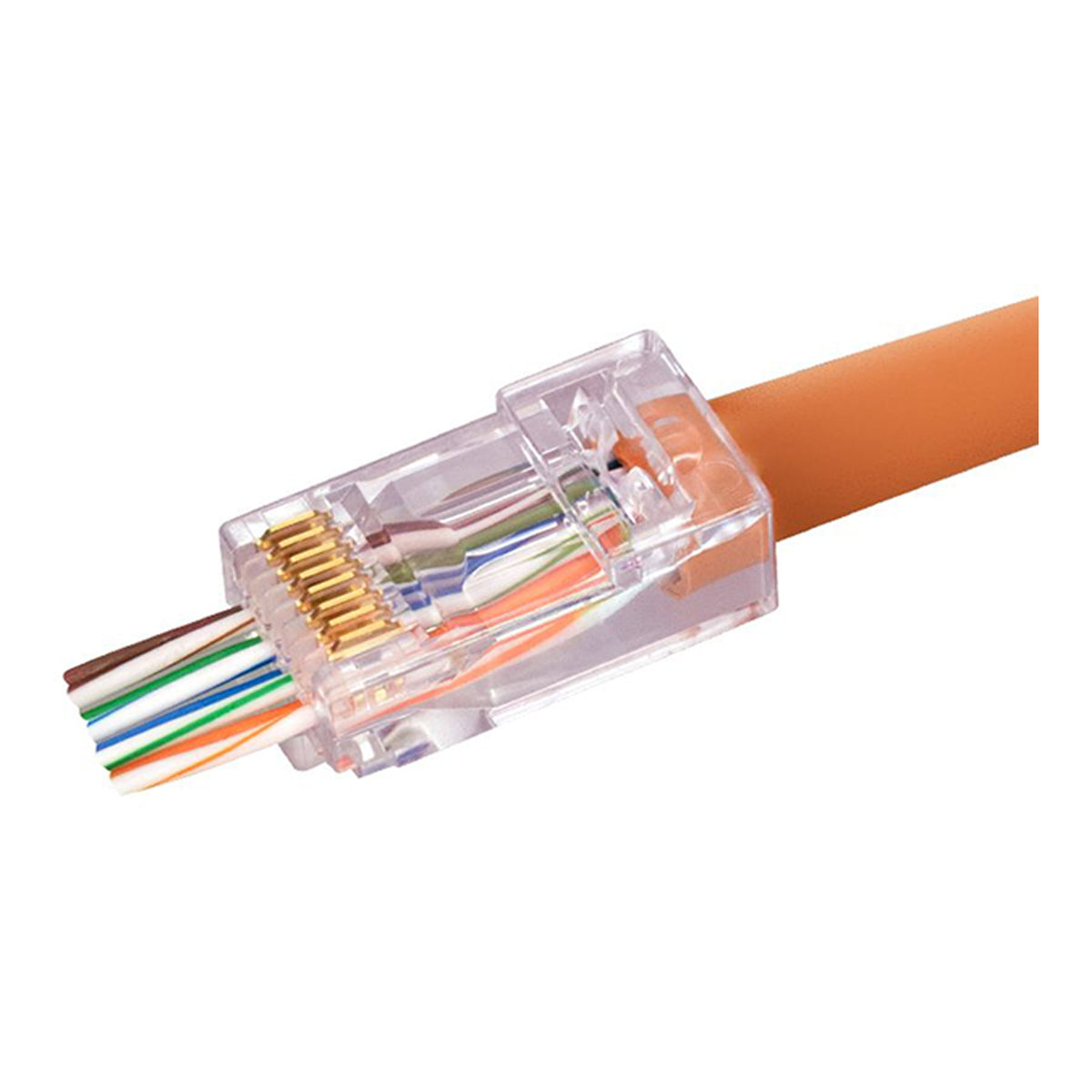

High/Low Staggered Wire Insert. LAN cable wire conductors are easily inserted into the S45-1700 in a Staggered High/Low wire arrangement out through the front of the RJ45 pass-through modular plug. The S45-1700 is recommended for larger unshielded LAN cables. It accommodates 23 AWG Solid LAN cable wire conductor sizes 1.00mm – 1.10mm (0.039” – 0.043”) typically found on some Cat6 UTP and Cat6A UTP cables. Also, check out our ProSeries version S45-1700P. Our ProSeries S45-1700P accommodates LAN cable diameters larger than our S45-1700.
