Description
- Unshielded Standard WE/SS (8P8C) RJ45 Mod Plugs with Bar45
- Load Bar for Cat6 UTP
- 23AWG Solid PE Insulated
- Wire Conductors 1.05-1.17mm/0.041"-0.046"
- Max Cable OD 7.4mm (0.291")
- Commercial Rated UL94V0
- Green Tint
- 50-Piece

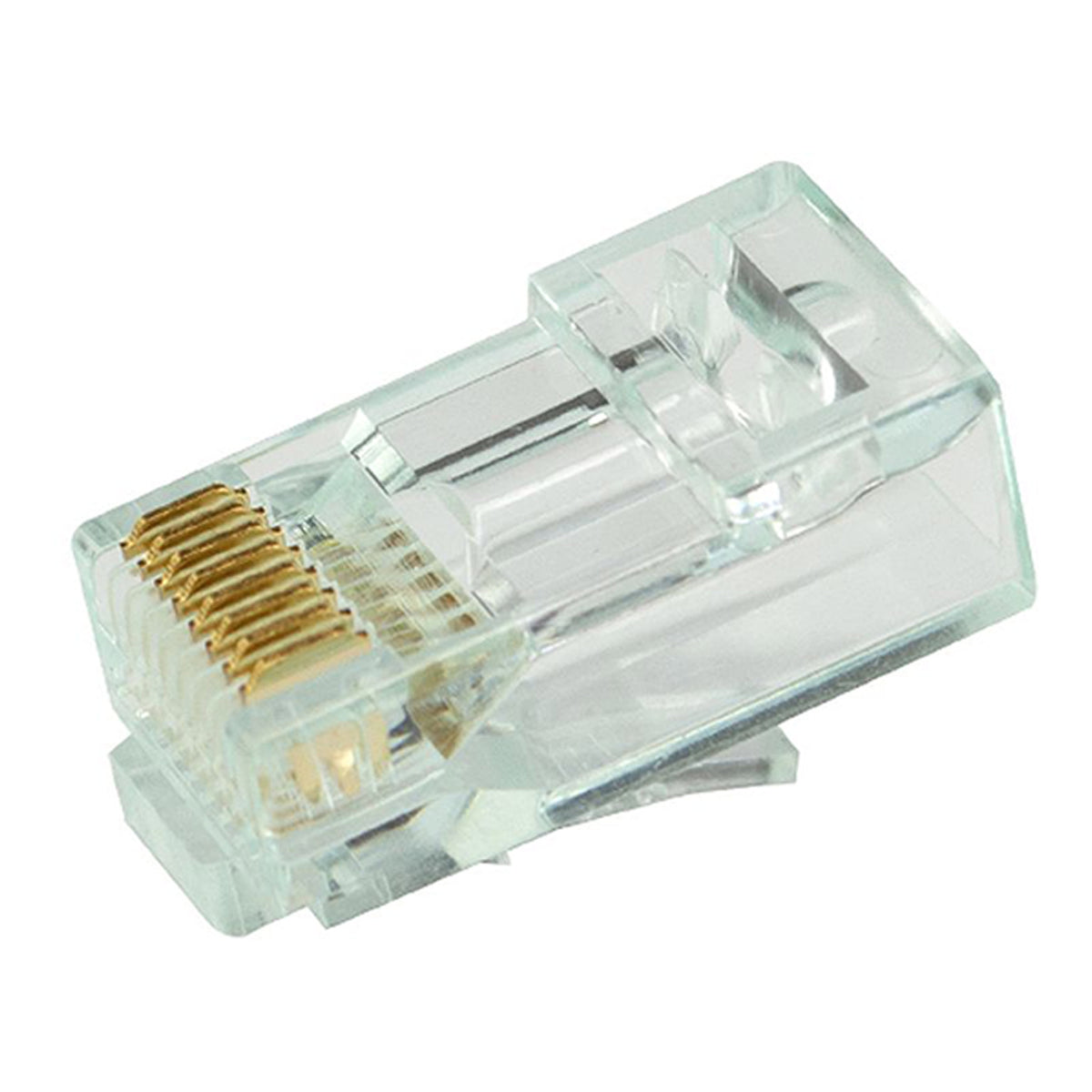

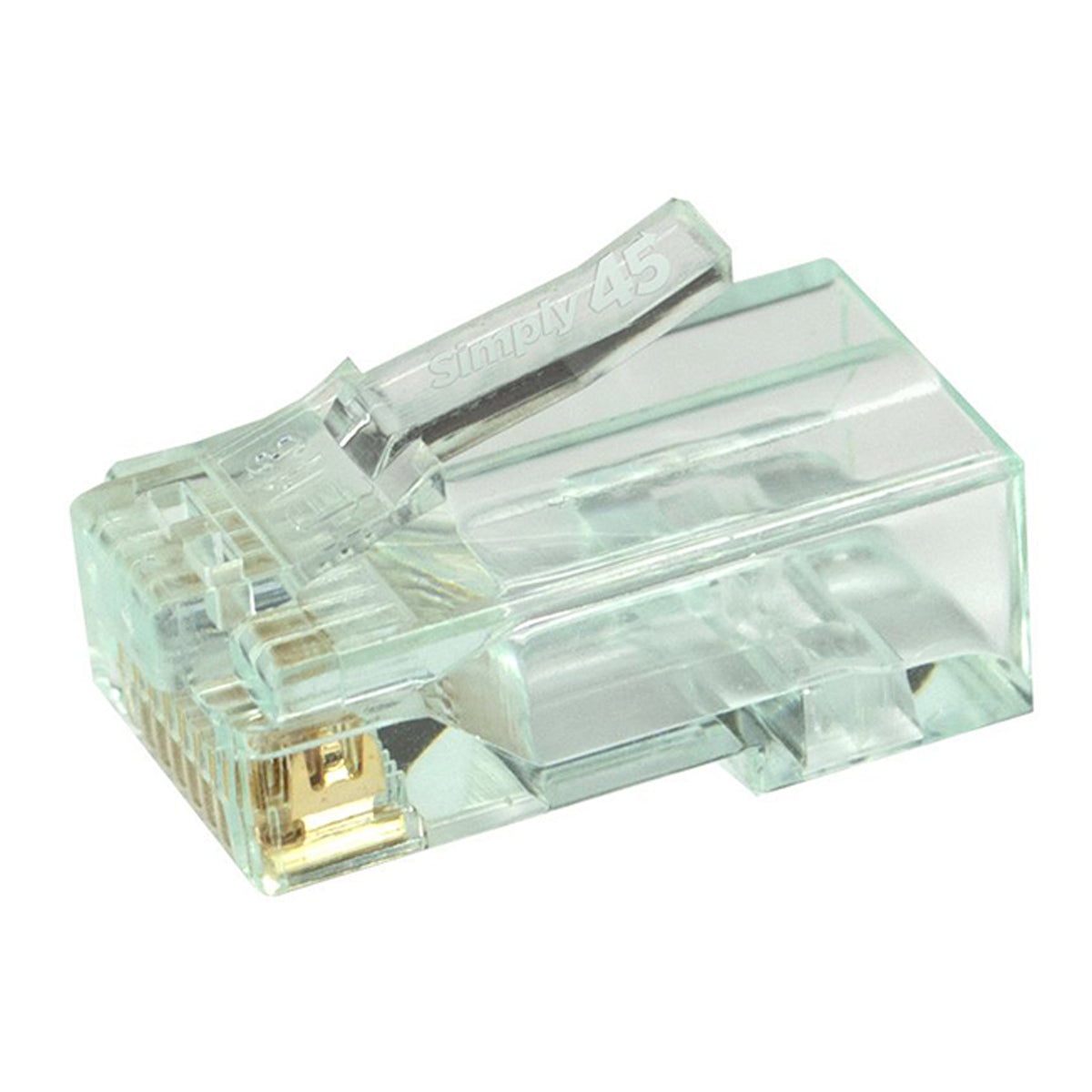

Simply45 S45-1601 CAT6 UTP Unshielded Pass-Through Green Tint RJ45 Modular Plug 50-Piece

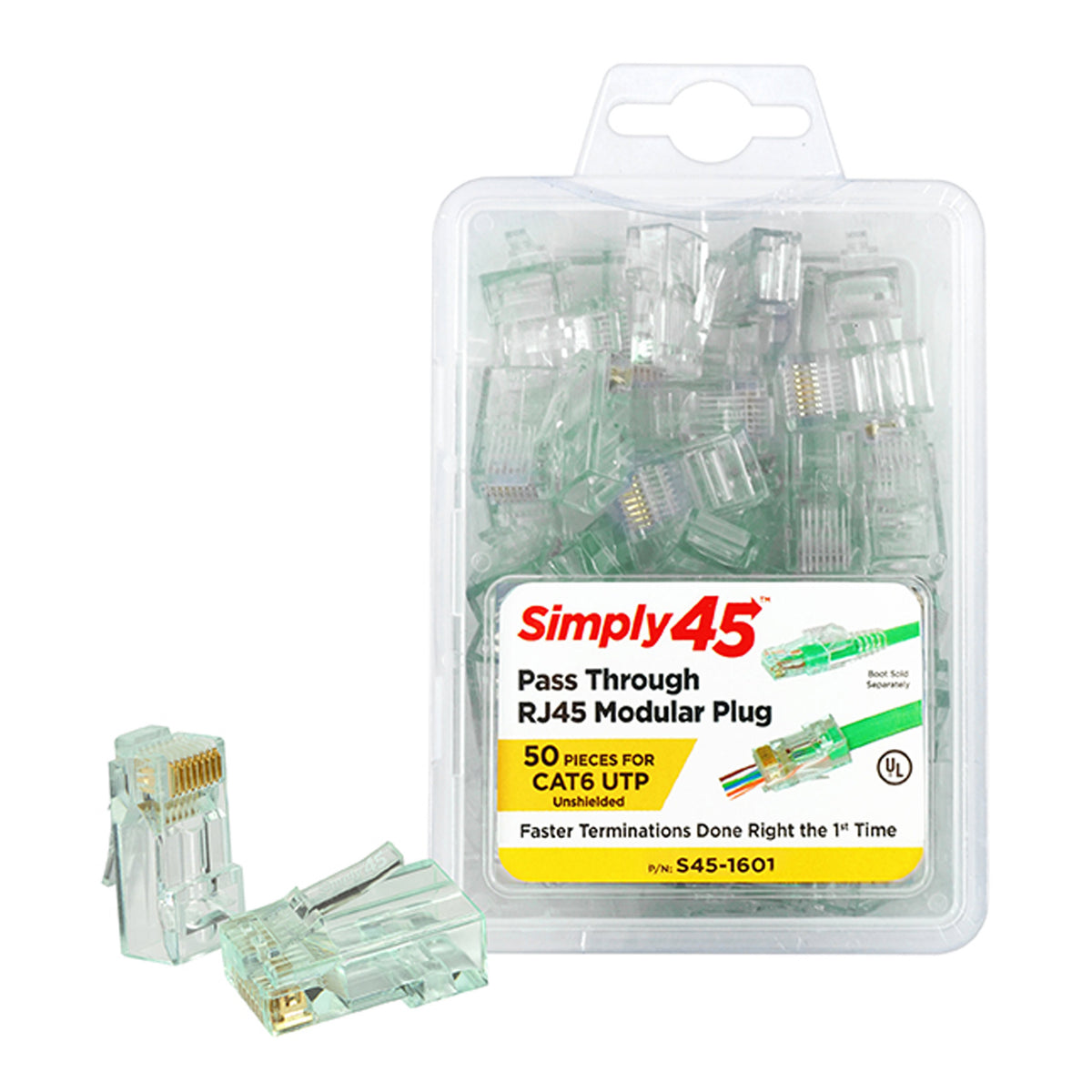

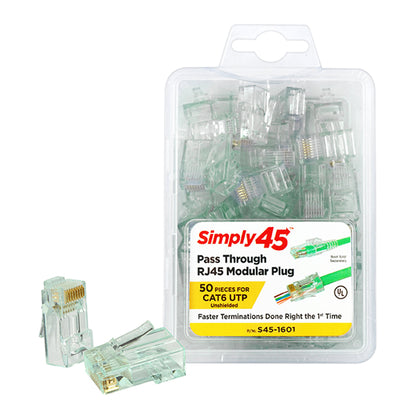

Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-1601 is the same as our S45-1600 except is packaged in a convenient 50-piece plastic clamshell.

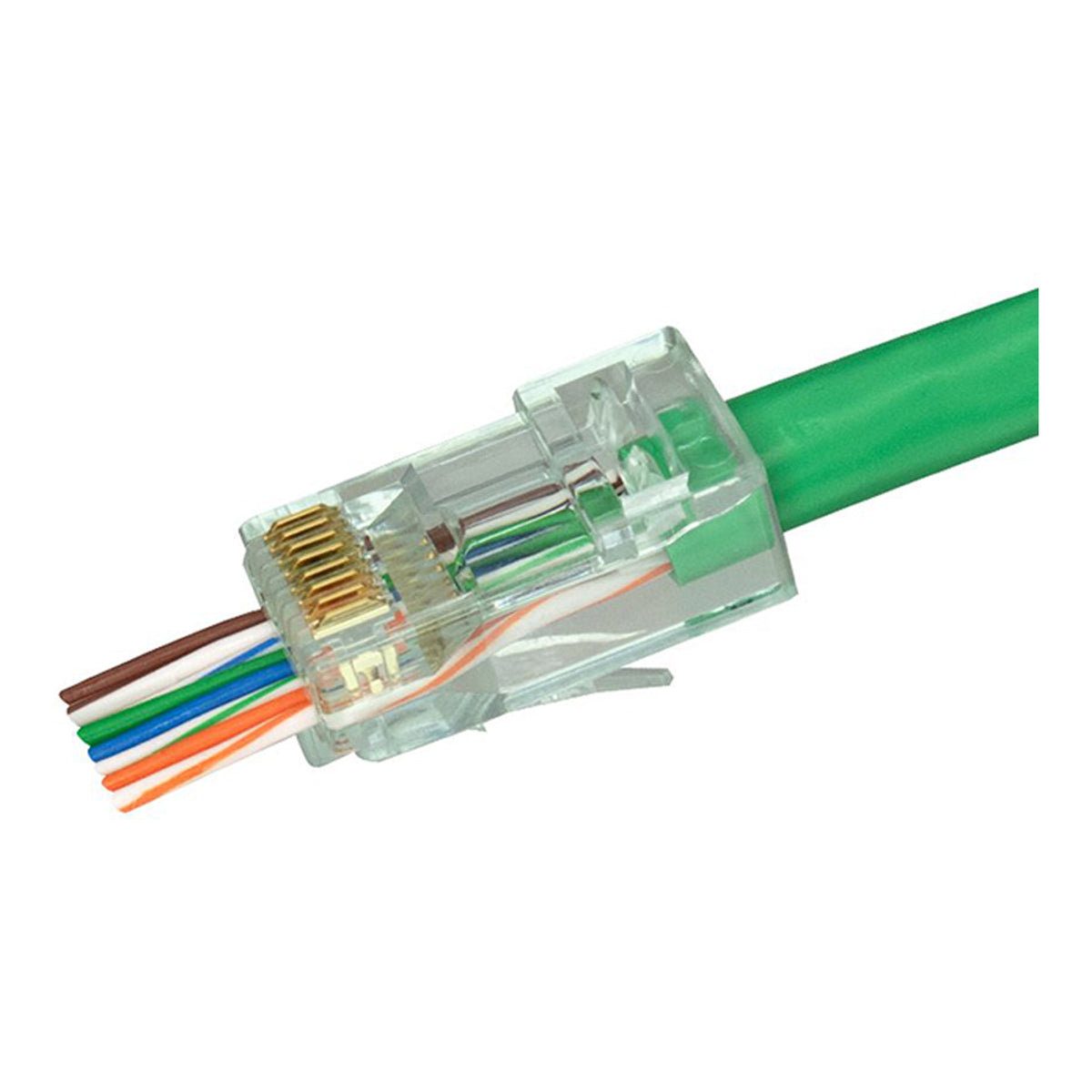

Single Piece Design. The S45-1601 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat6; ISO/IEC 11801 Class E.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signal integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.

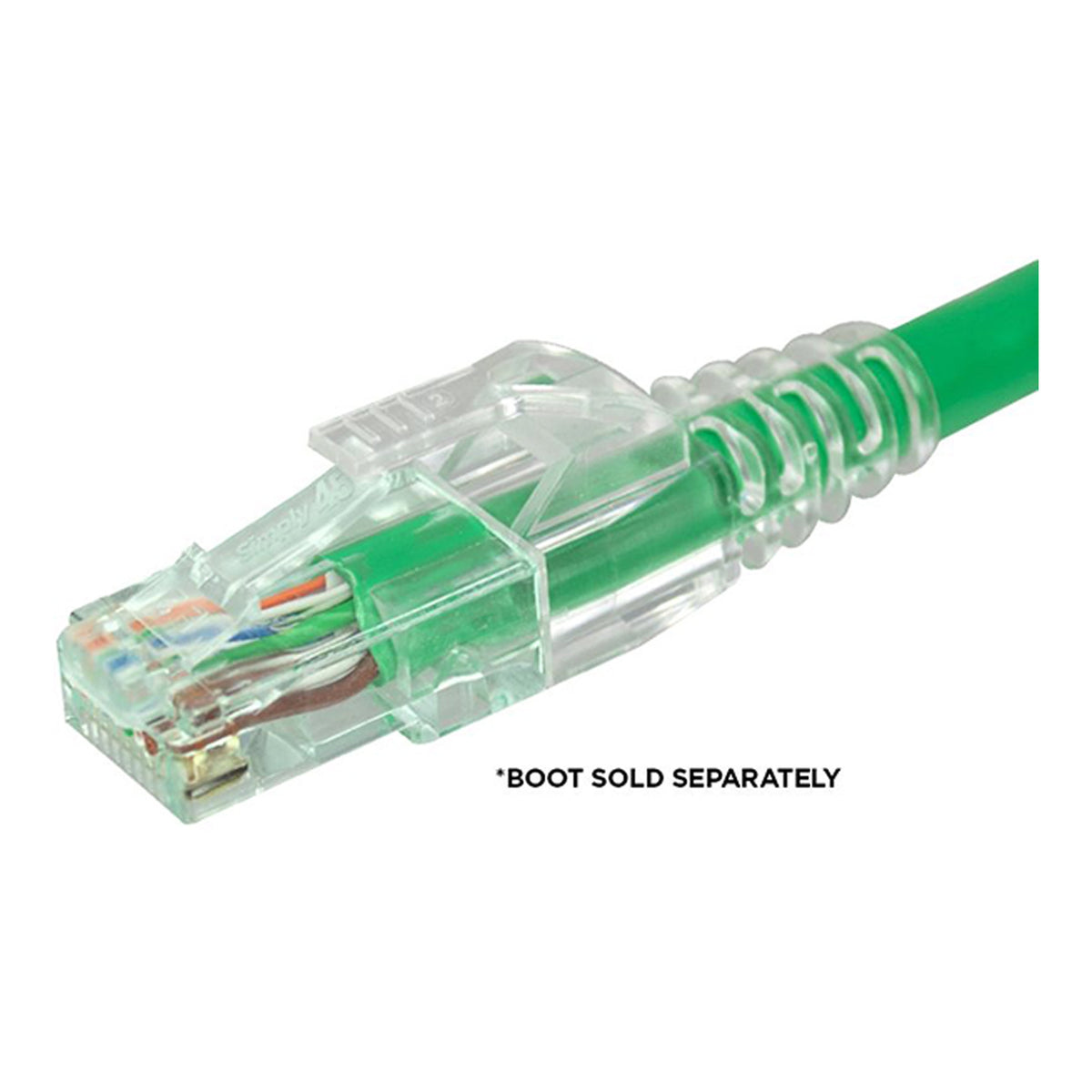

Solid and Stranded LAN Cables. The S45-1601 is ideal for most Cat6 UTP (unshielded twisted pair) solid 23 AWG LAN cables with a maximum cable diameter of 7.0mm (0.276”). The S45-1601 also works great with stranded unshielded LAN cables such as those used on patch cords/leads. Our part S45-1500 works with most stranded unshielded Cat5e and Cat6 LAN cables, but if your stranded LAN cable has a thicker outer jacket or larger cable OD commonly found on PUR jackets, then either our S45-1601 or S45-1700 may be the right solution for you.
