Description
- Unshielded Pass Through RJ45 Modular Plugs
- 24AWG Solid (Cat5e UTP)
- 28-26AWG Stranded (Cat5e/6 Stranded)
- Wire Conductors 0.95 – 1.05mm/ 0.037″ – 0.041″
- Max Cable OD 6.5mm (0.255″)
- UL94 V0 Commercial Rated
- USA Designed
- TAA Compliant
- Blue Tint
- 100-Piece Jar

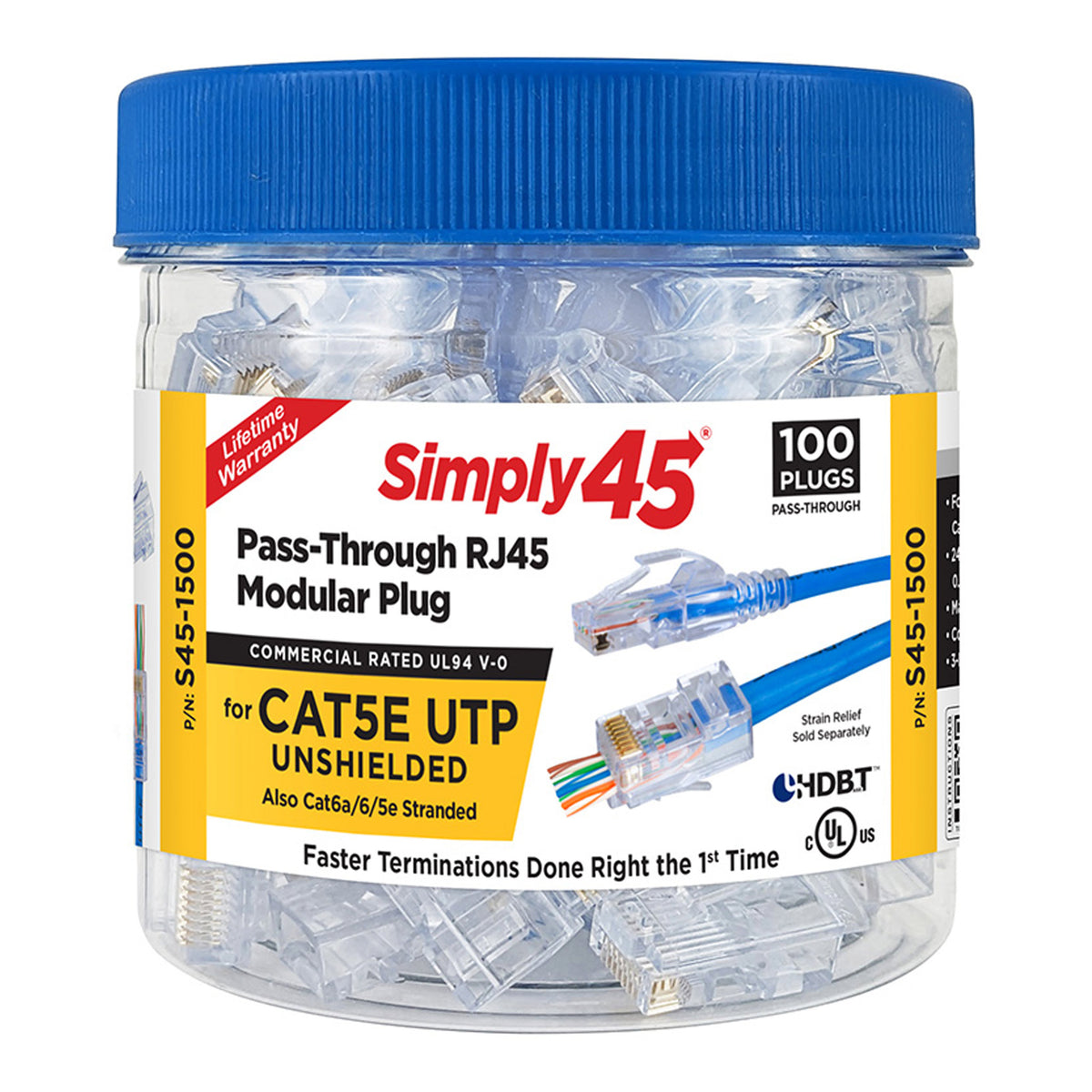

Simply45 S45-1500 CAT5e UTP Unshielded Pass-Through Blue Tint RJ45 Modular Plug 100-Piece Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.

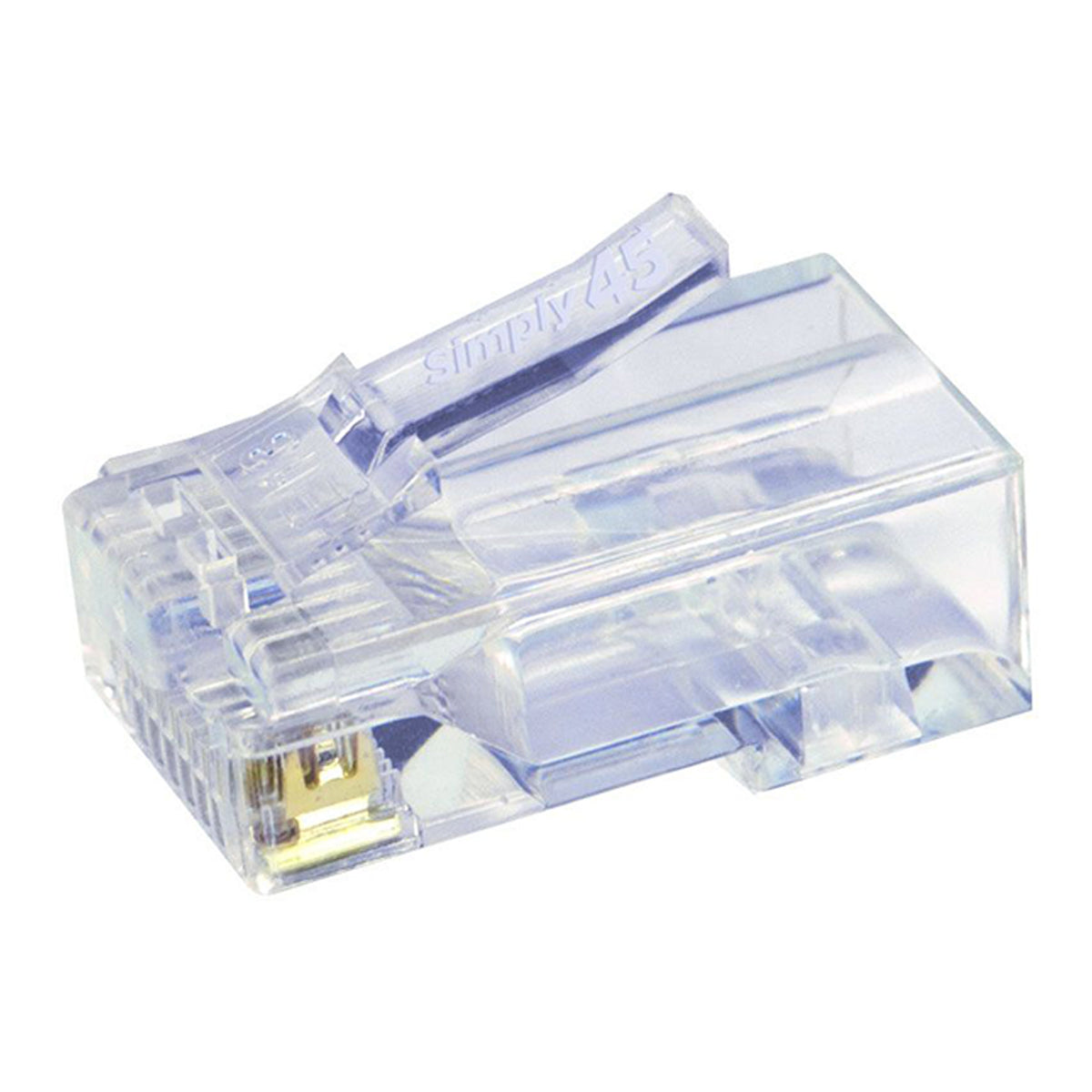

Single Piece Design. The S45-1500 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. The no-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6 and Cat5e.

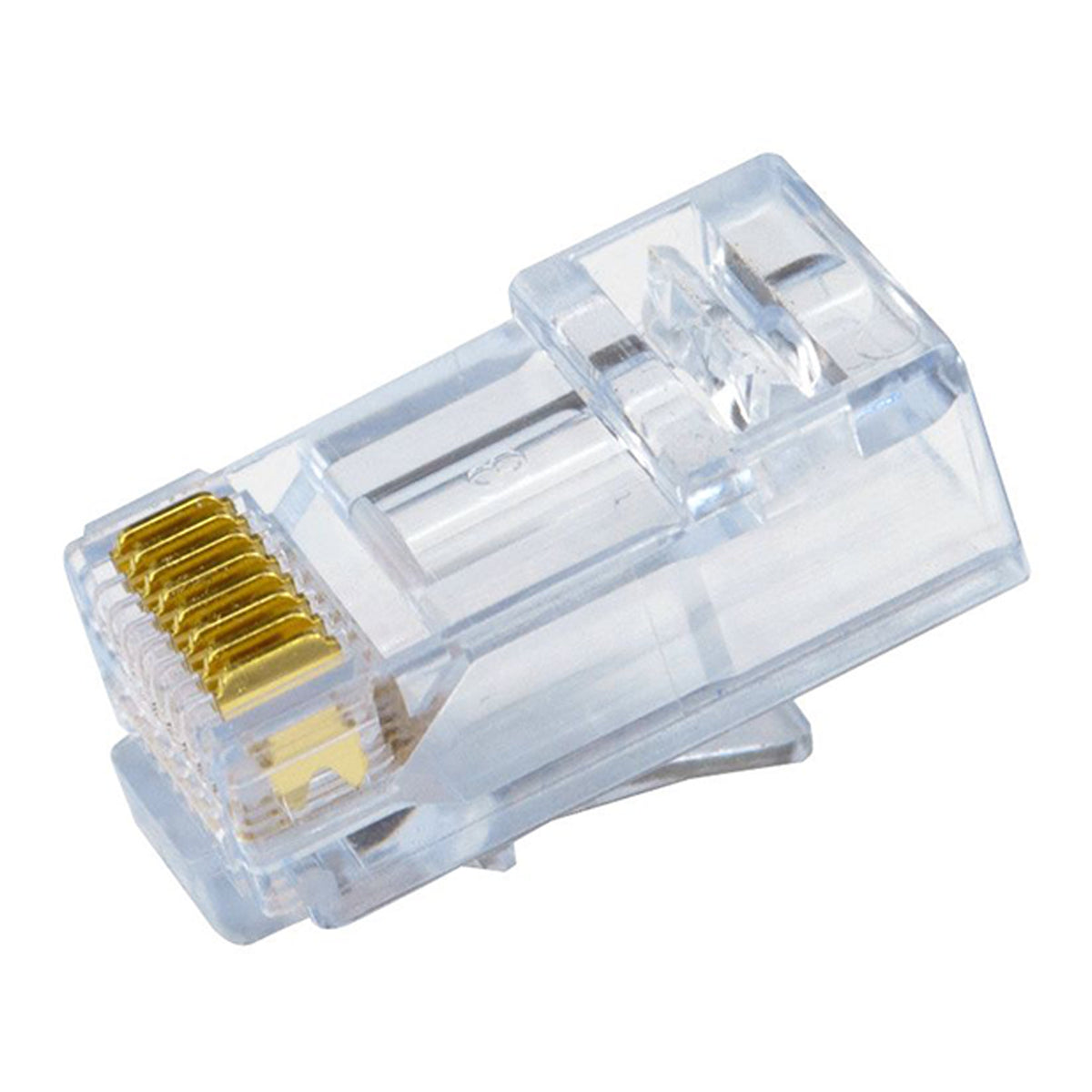

3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45 pass-through RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signals integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts.

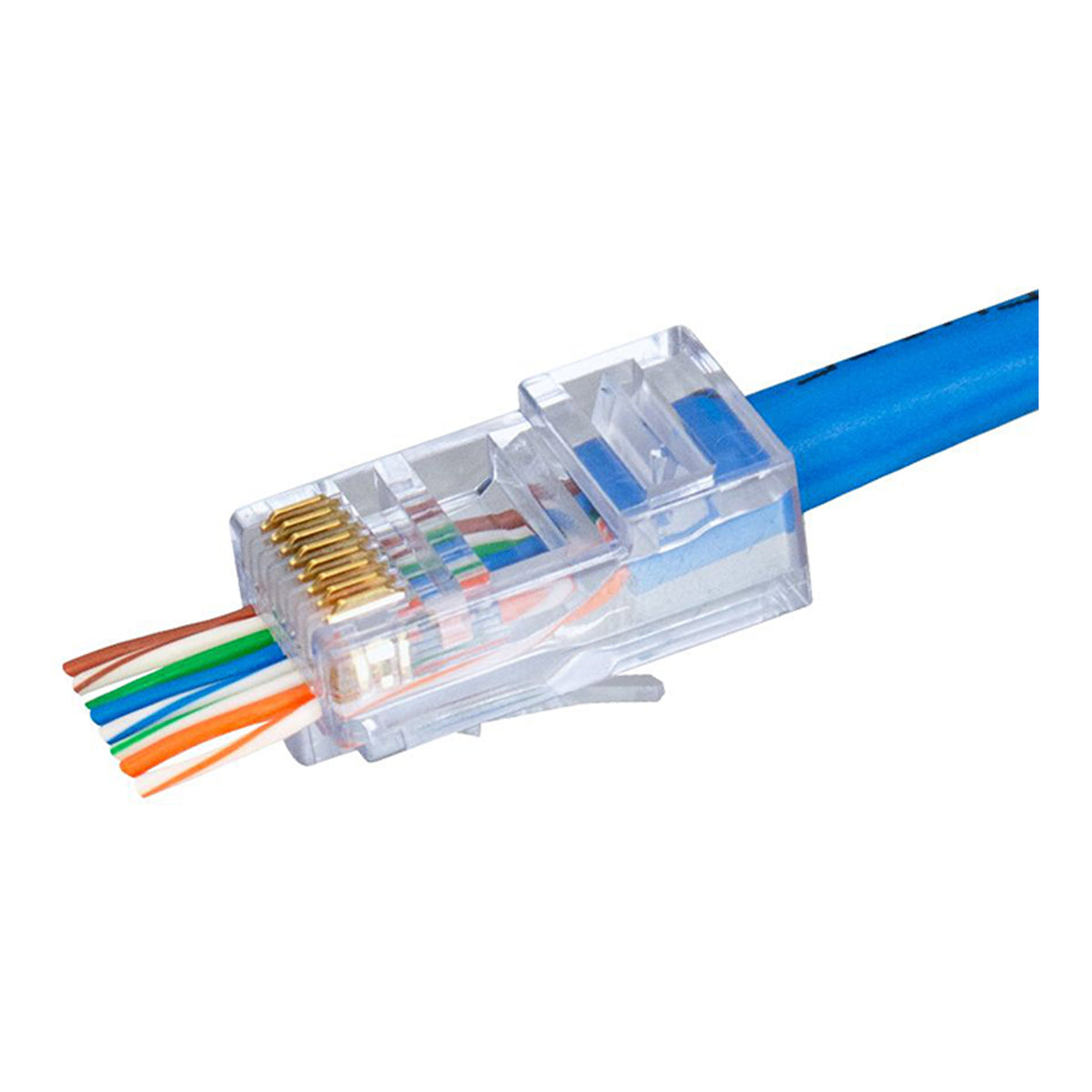

Solid and Stranded LAN Cables. The S45-1500 is ideal for most Cat5e UTP (unshielded twisted pair) solid 24 AWG LAN cables and stranded 28-26 AWG with wire conductor sizes 0.95mm – 1.05mm (0.037” – 0.041”). The S45-1500 works great with most Cat6 and Cat5e stranded unshielded LAN cables used on patch cords/leads. If your stranded LAN cable has a larger diameter than 6.5mm (0.255”), then our S45-1600 or S45-1700 may be the right solution for you.
