Description

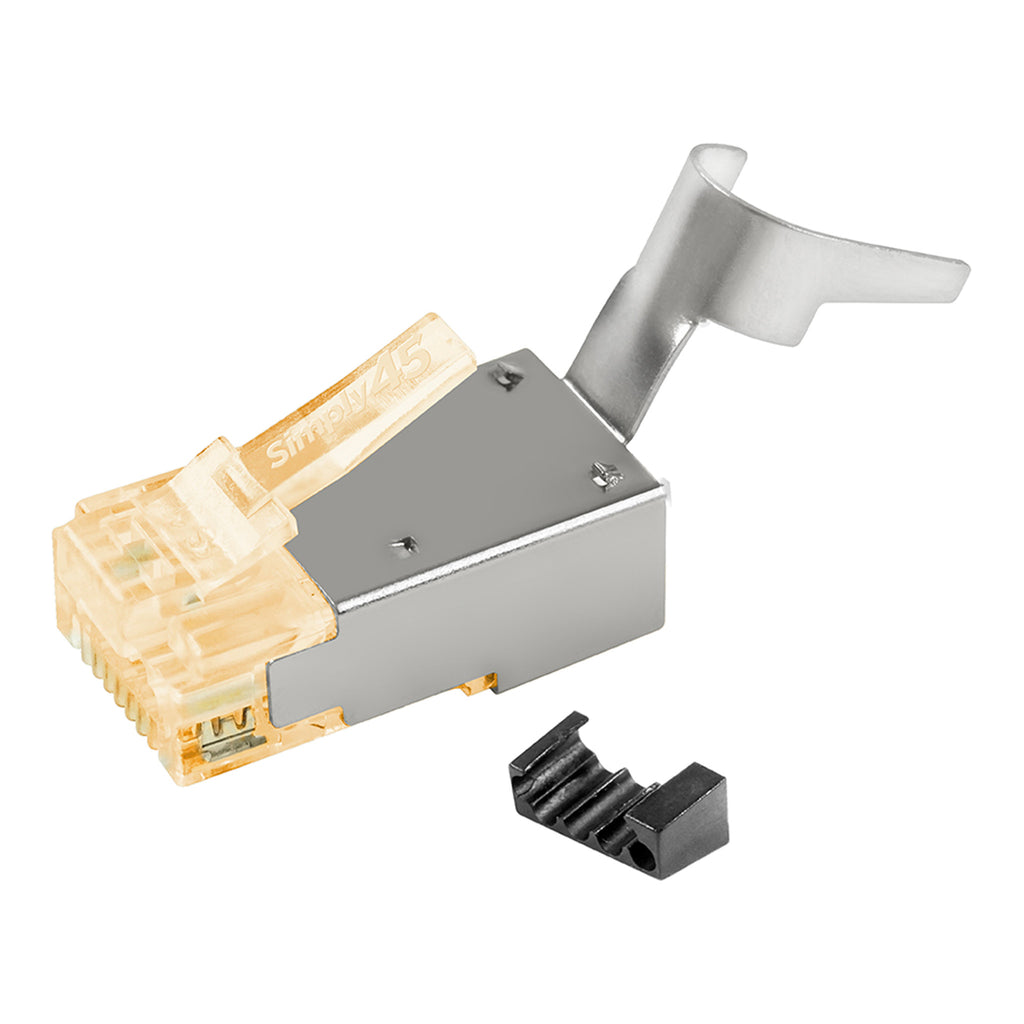

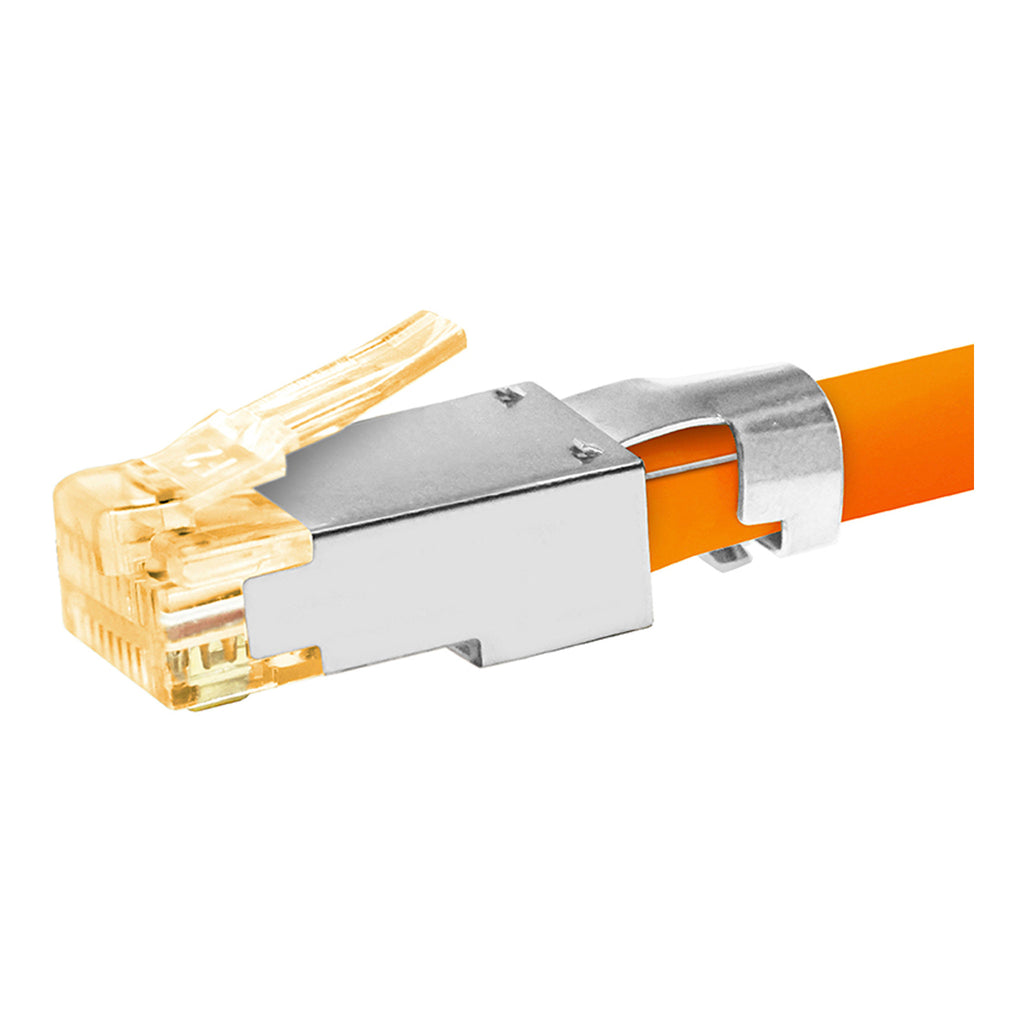

- 10G Shielded External Ground Standard WE/SS (8P8C) RJ45 Modular Plugs
- 10G STP LAN Cables (Cat7a/7/6a)
- 23 AWG FPE Insulated Wire Conductors 1.21-1.45mm/0.047″-0.057″
- Max Cable OD 8.0mm (0.315″)

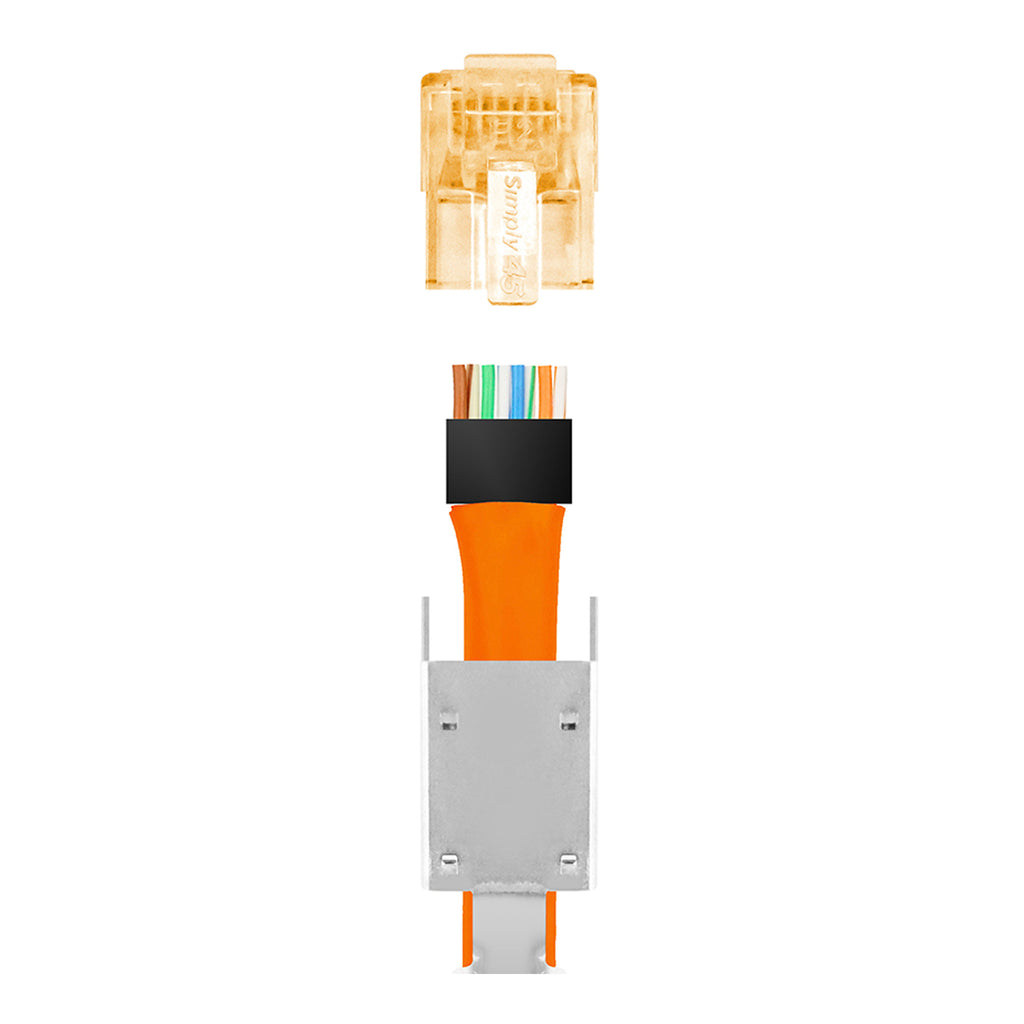

- 2-Piece Plug with 10G BarS45 Load Bar
- UL94 V0 Commercial Rated
- Orange Tint

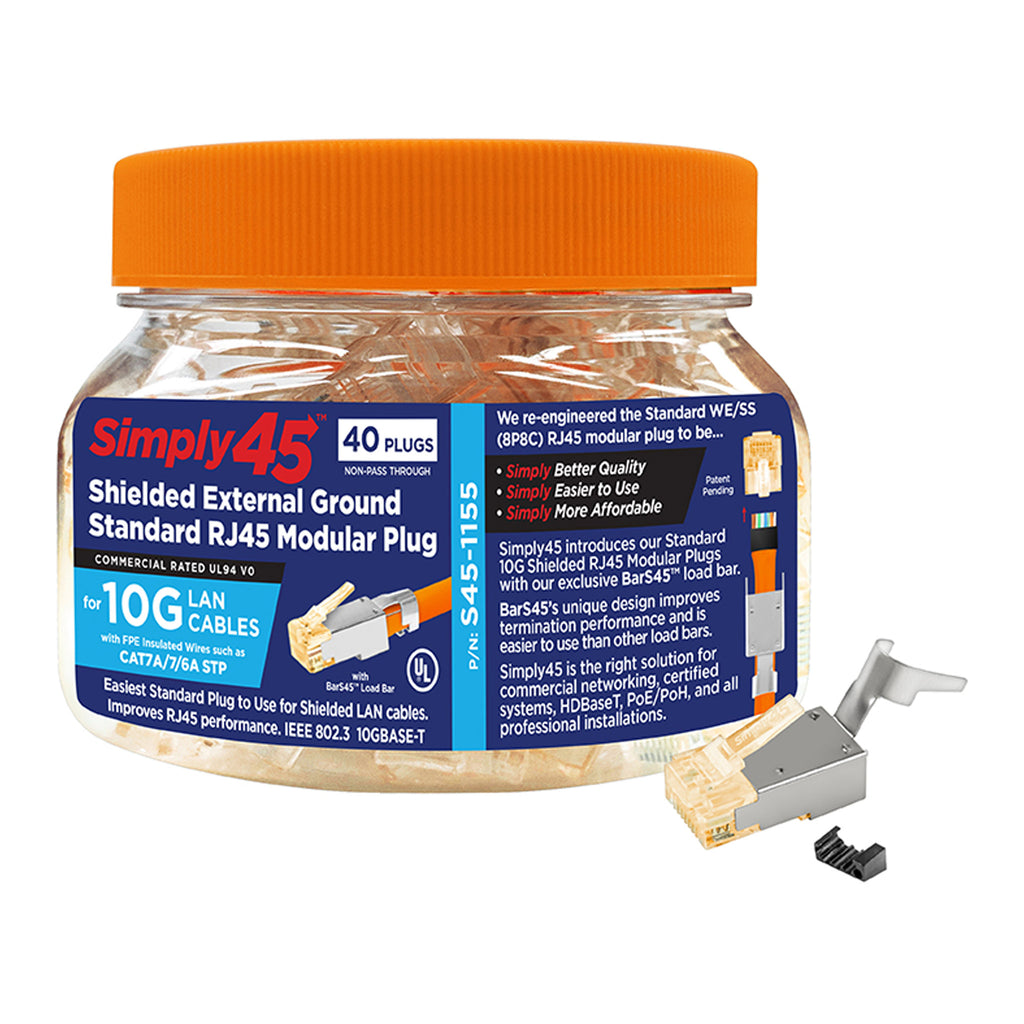

- 40-Piece Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a were time-consuming, and frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar. Of course, you could use an industrial-style RJ45 Field Plug connector, but those are expensive and still require more effort than they should. The Simply45 engineering team did extensive testing and development to design a high-performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost-effective.
Introducing our S45-1155 Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires. FPE (foam polyethylene) insulated wires are found on most of today’s 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, and F/FTP LAN cable constructions. The S45-1155 are IEEE 802.3 10GBase-T compliant.
Up until now, using an RJ45 modular plug to terminate shielded 10G LAN cables such as Cat7a, Cat7 and Cat6a were time-consuming, and frustrating, and if you ever put a Fluke test on longer distance links or channels, the results were not exactly stellar. Of course, you could use an industrial-style RJ45 Field Plug connector, but those are expensive and still require more effort than they should. The Simply45 engineering team did extensive testing and development to design a high-performing Standard WE/SS (8P8C) RJ45 modular plug solution that was both easy to use and cost-effective.
Introducing our S45-1155 Standard WE/SS Shielded with External Ground RJ45 Modular Plugs for 10G LAN cables with FPE insulated wires. FPE (foam polyethylene) insulated wires are found on most of today’s 10G Shielded LAN such as Cat7a, Cat7, Cat6a with S/FTP, U/FTP, and F/FTP LAN cable constructions. The S45-1155 are IEEE 802.3 10GBase-T compliant.
