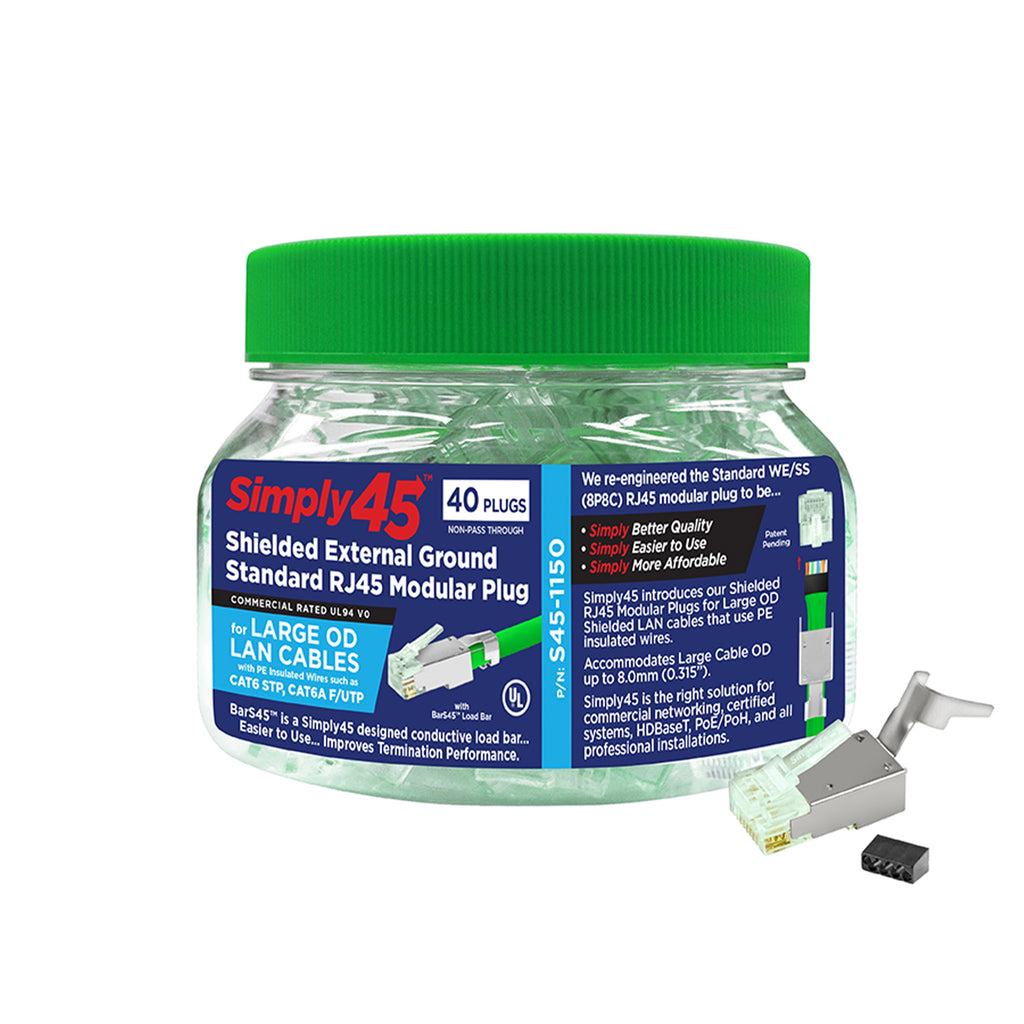

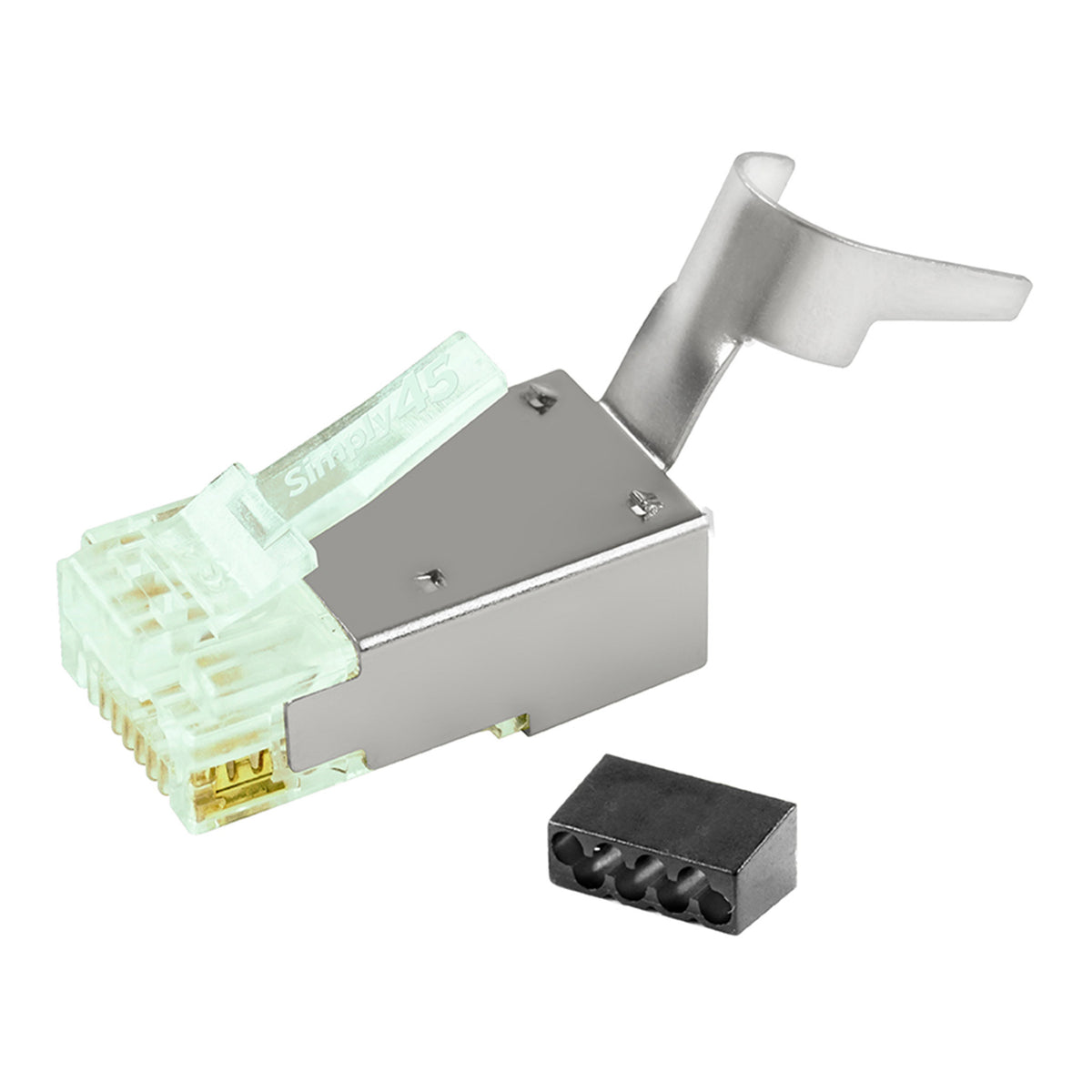

Simply45 S45-1150 Cat6 Shielded Standard WE/SS RJ45 Modular Plugs with BarS45 - 50-Piece Jar

Simply45 S45-1150 Standard Shielded (External Ground) Cat6/6a RJ45 Modular Plugs with Bar45? Green Tint - 50pcs/Jar

Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Introducing the Simply45 S45-1150 Standard WE/SS (8P8C) Shielded with External Ground RJ45 Modular Plug for PE Insulated Wire Conductors such as found on Cat6 Shielded STP and Cat6a F/UTP LAN cables.

The Simply45 S45-1150 RJ45 shielded modular plug provides better signal isolation and terminated performance than other shielded RJ45 modular plugs for larger diameter Shielded LAN cables using PE (solid polyethylene) insulated wire conductors.

Manufacturer: Simply45

Product: Cat6/6a Shielded External Ground RJ45 Modular Plug with Bar45®

Model: S45-1150

Type: RJ45 Modular Plug

Application: Terminating shielded Cat6/6a LAN cables with PE insulated wires

Special Features: Designed for 23 AWG solid LAN cables up to 0.3\ diameter; includes Bar45® load bar for improved signal isolation and reduced crosstalk; 3-prong pins with 50µ 24ct gold plating; supports ANSI/TIA 568.2-D and ISO/IEC 11801 Class Ea standards; suitable for Cat6 STP and Cat6a F/UTP cables; operating temperature: -40°C to +70°C"
