Description
- Shielded Internal Ground Standard WE/SS (8P8C) RJ45 Mod Plugs
- 24 AWG Cat5e STP Solid
- 28-24AWG Cat5e/6/6a STP Stranded
- Wire Conductor Diameters 0.95-1.05mm (0.037-0.041”)
- Max Cable OD 6.10mm (0.24″)
- UL94 V0 Commercial Rated
- Blue Tint

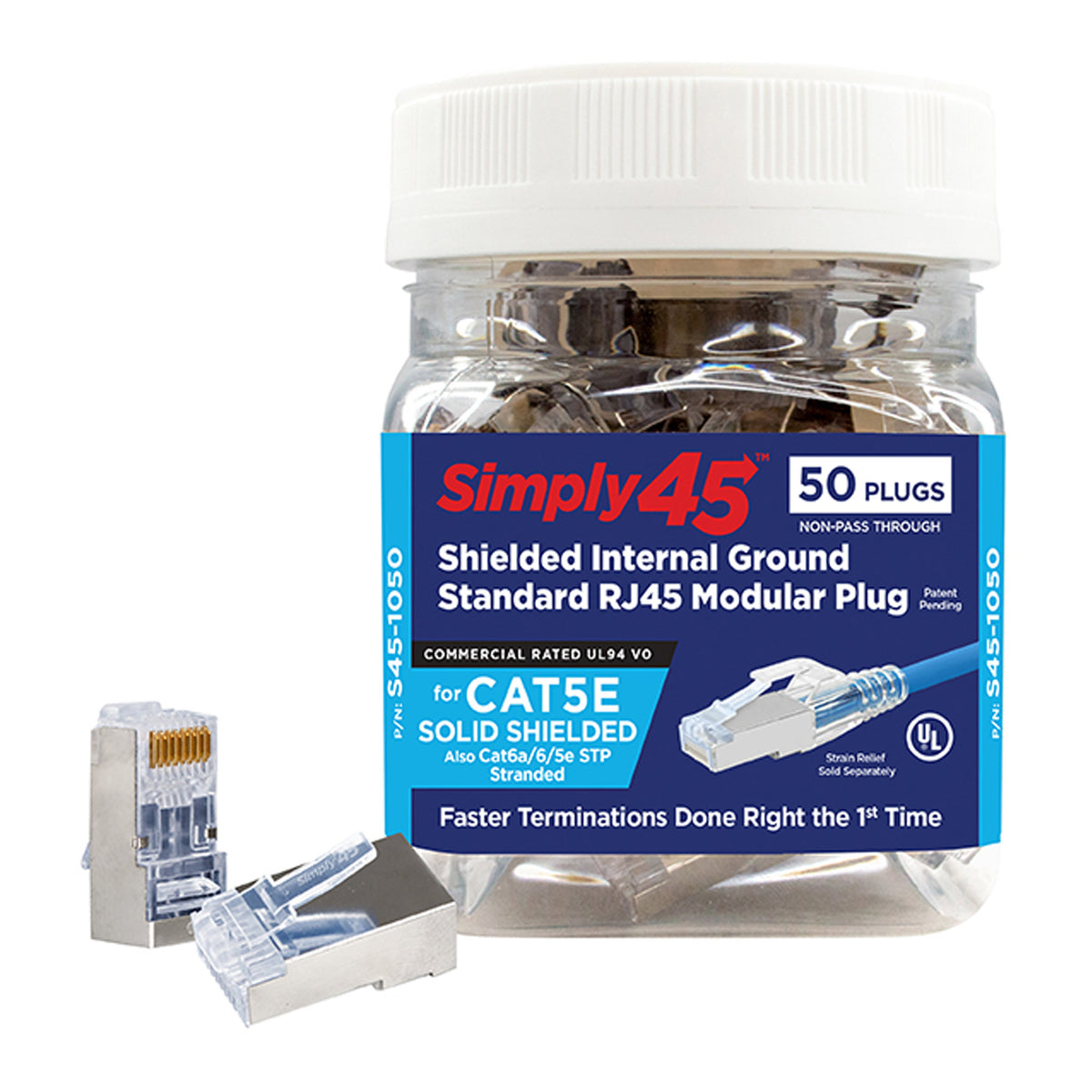

- 50-Piece Jar

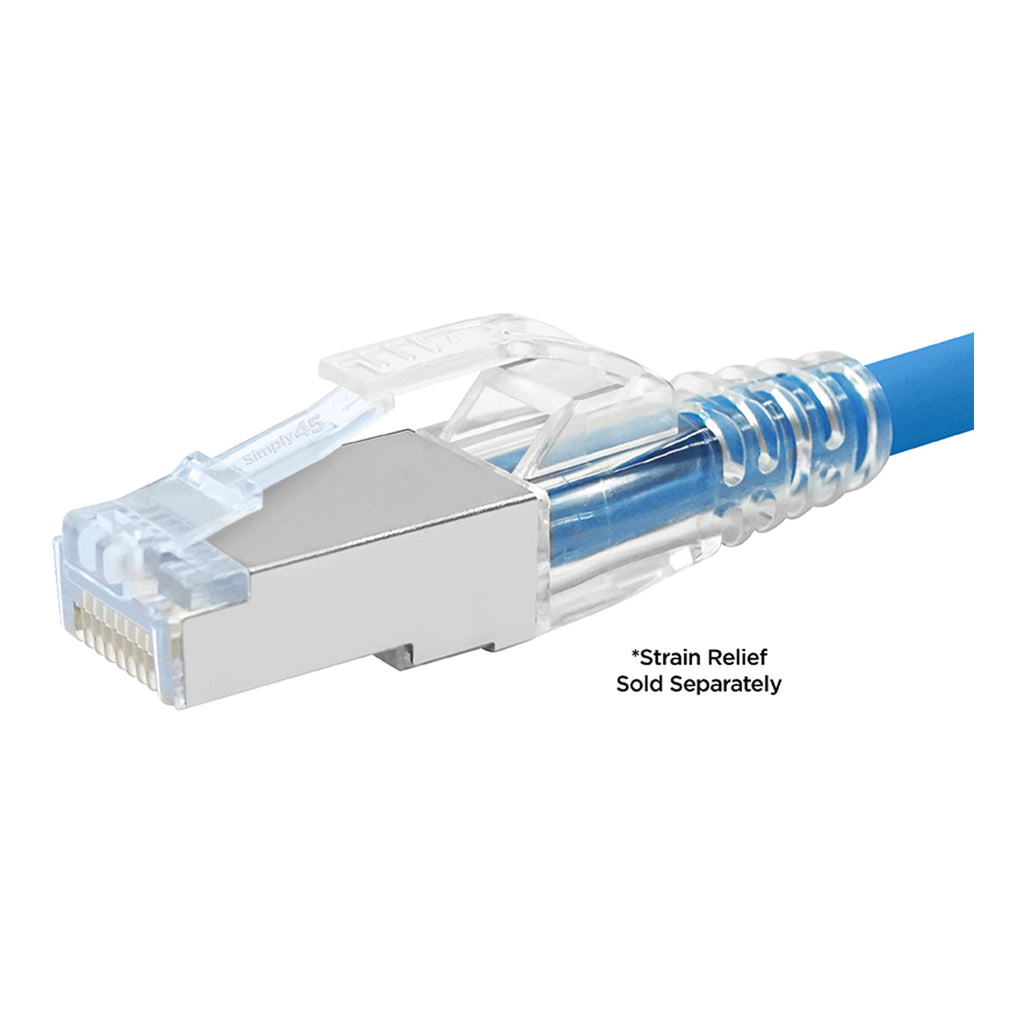

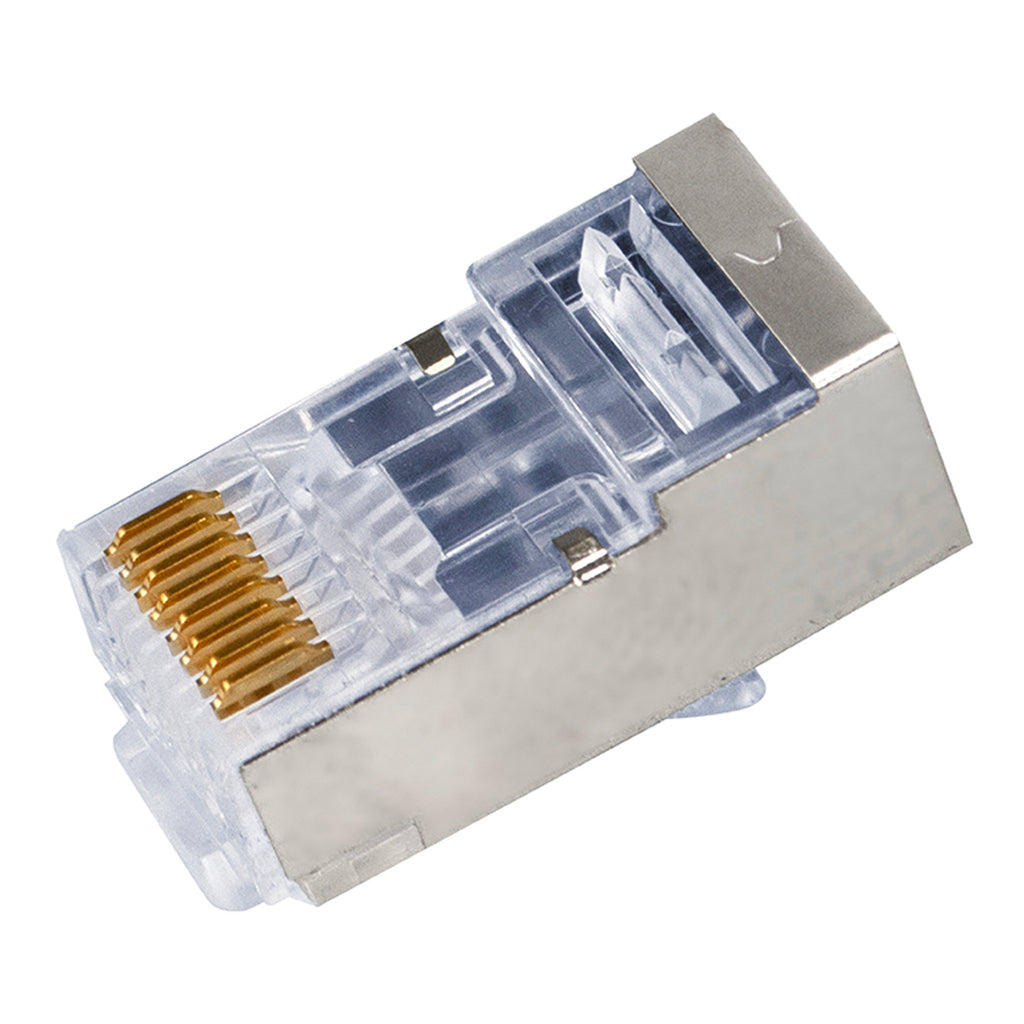

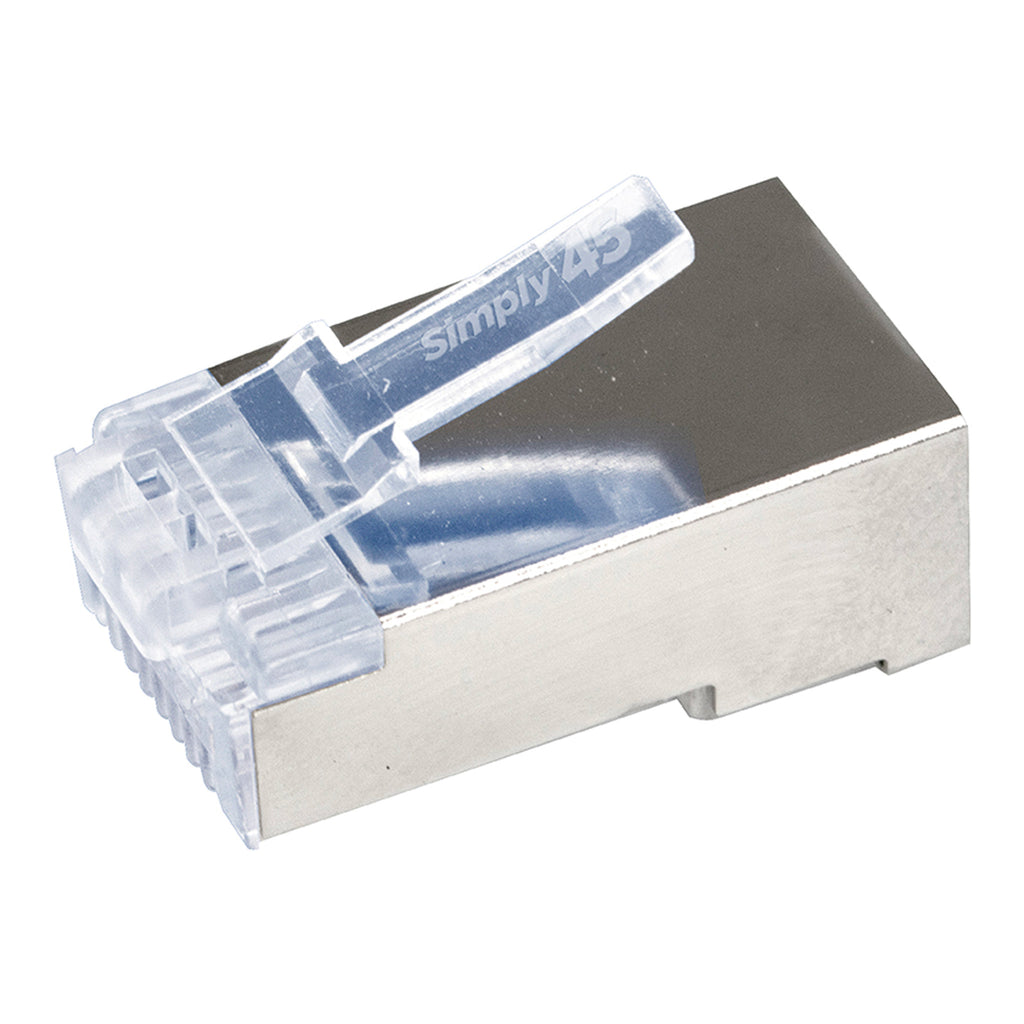

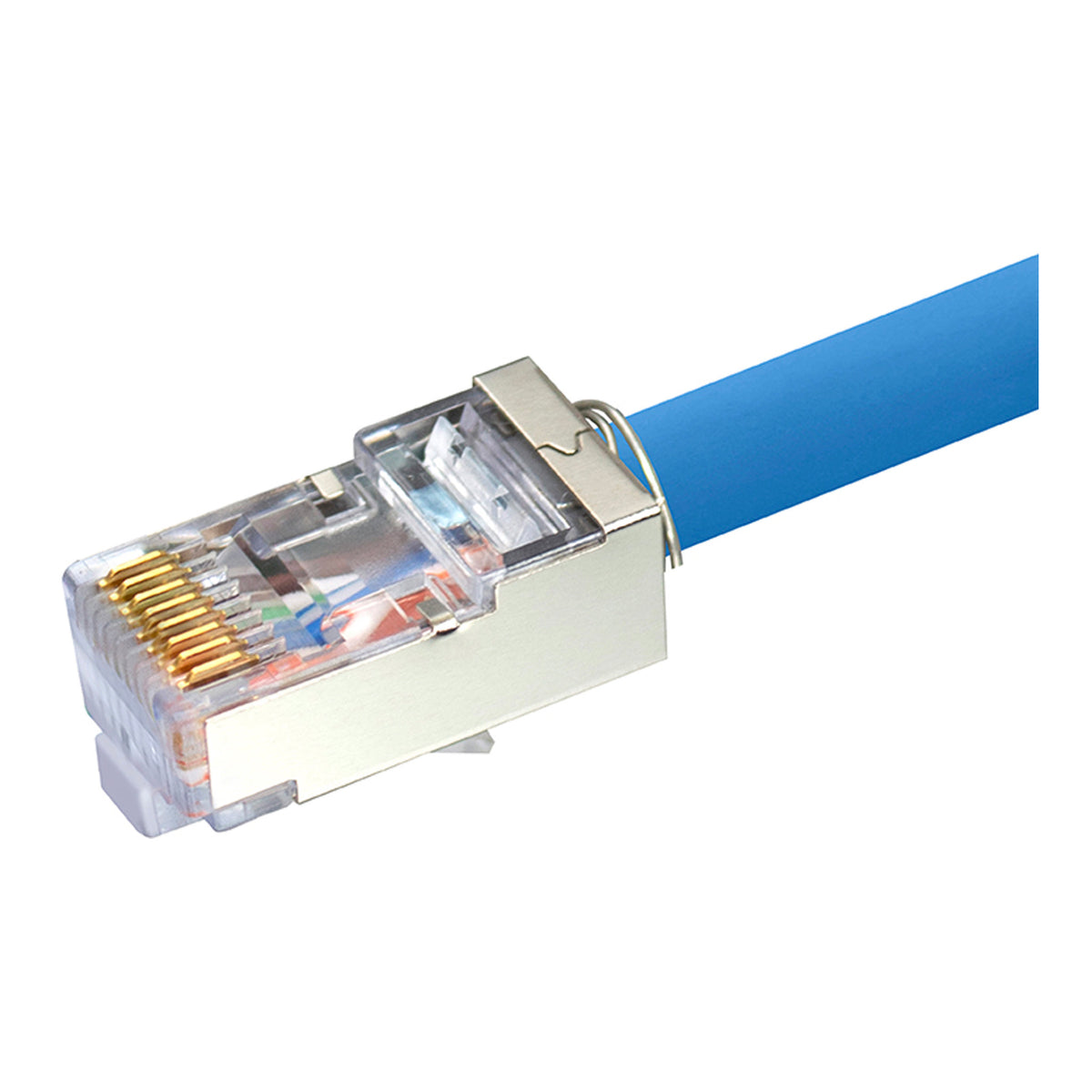

Simply45 S45-1050 Standard Shielded (Internal ground) RJ45 Modular Plugs for Cat5e STP, Blue Tint - 50pcs/Jar
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Our S45-1050 shielded with internal ground Standard WE/SS 8P8C RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1050 is a single piece fully shielded with an internal ground Standard WE/SS RJ45 modular plug for shielded (STP) LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6a, Cat6, and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45 Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signals integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts
Simply45 is the industry-leading brand for RJ45 modular plug innovation and performance solutions.
Our S45-1050 shielded with internal ground Standard WE/SS 8P8C RJ45 modular plugs incorporate the following features:
Single Piece Design. The S45-1050 is a single piece fully shielded with an internal ground Standard WE/SS RJ45 modular plug for shielded (STP) LAN cables. No-load bar is required. Supports performance standards: ANSI/TIA 568.2-D for Cat5e; ISO/IEC 11801 Class D; and applicable patch cord standards for Cat6a, Cat6, and Cat5e.
3 Prong Pin Design with 50µ of True 24ct Gold Plating. All Simply45 Standard WE/SS RJ45 modular plugs use only 50µ 24ct gold plated 3-Prong pin design instead of a 2-Prong design as found on most other pass-through RJ45 modular plugs. A 3-Prong pin provides 3 points of contact with the copper wire conductor instead of 2. This improves electrical performance and signals integrity. A 3-prong pin also holds stronger onto the wire conductors. To learn more about why we only use 3-Prong pins and 50µ 24ct gold-plated contacts
