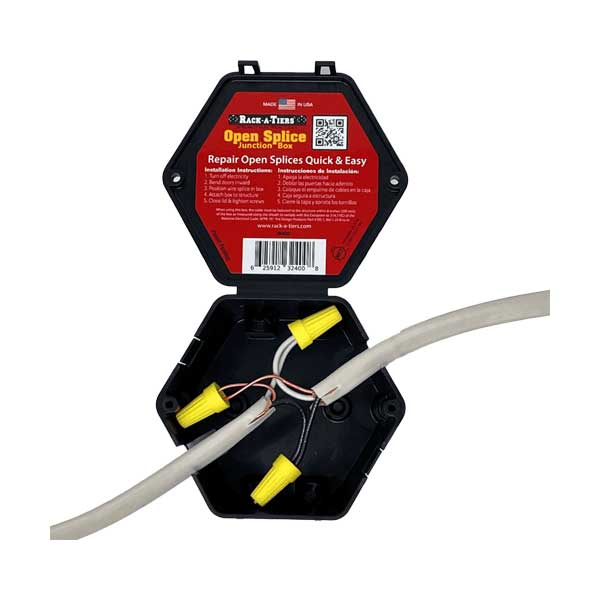

Rack-A-Tiers Open Splice Junction Box Wire Enclosure | 1-Pack | JB400

The Rack-A-Tiers JB400 is a patent-pending, non-metallic junction box designed to safely encase exposed wire splices without disconnecting or rewiring. This fire-resistant polymer enclosure holds 25.8 cubic inches and features a one-piece hinged design with four-sided cable entry flaps for flexible installation in tight spaces. UL 514C certified and made in the USA, it mounts directly to framing with included screws, making it ideal for electrical contractors and inspectors who need to quickly correct code violations on NM cable from 14/2 to 10/3 with ground.

Features
Splice-Over Installation: Encloses pre-existing wire splices directly, eliminating the need to take connections apart or re-pull wire.
One-Piece Hinged Housing: Folds closed over the wiring to speed up install times in cramped crawl spaces and attics.
Multi-Directional Entry: Features push-in flaps on all four sides to accommodate various non-metallic cable entry angles.
Short-Wire Accommodation: Solves common inspection punch-list failures without requiring dual-box extensions on short leads.
Rapid Mounting: Fastens directly to structural framing with two mounting screws and closes tight with two included lid screws.

Specifications
Enclosure Type: Non-metallic open splice junction box
Internal Volume: 25.8 cu. in.
Cable Capacity: NM cable sized from 14/2 with ground to 10/3 with ground
Material: Fire-resistant engineered polymer
Safety Certifications: MET Lab Tested to UL 514C (USA) and CSA C22.2 #182 (Canada)
Mounting / Fasteners: Surface/stud mount; includes enclosure lid screws
Country of Origin: Made in the USA
