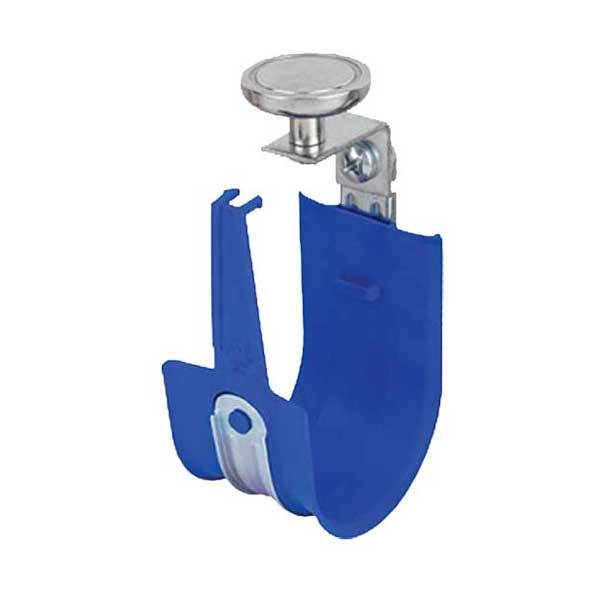

Platinum Tools HPH J-Hook Assembled to 90 Degree Angle with MAG420 Pot Magnet | 1" | Blue | 1-Piece | HPH16MV-10BL-1

The Platinum Tools HPH16MV-10BL-1 is a magnetic cable support hook designed for fast, drill-free installation in structured cabling, commercial AV, and security projects. This 1-inch J-hook features a pre-assembled 90-degree bracket with a powerful MAG420 rare-earth neodymium magnet delivering up to 90 lbs of holding force. It securely mounts to steel beams, purlins, and metal framing without drilling or hardware.

The integrated snap-lock cable retainer holds up to 20 Cat5e/Cat6 cables or 10 Cat6A cables while maintaining proper bend radius to protect cable integrity. The High Performance Hybrid design combines a galvanized steel bracket with a smooth polypropylene saddle to prevent conductor abrasion and jacket damage. Fully removable and reusable, it's ideal for temporary installations, tenant improvements, and network expansions. RoHS compliant and standards-certified for TIA-568-C and TIA-569-C compliance.

Features
Zero-Drill Magnetic Mounting: Attaches instantly to structural steel beams, open webbing, and metal decking, eliminating drilling, welding, and specialty clamping hardware.
Super-Strong Rare-Earth Pot Magnet: Uses a MAG420 neodymium magnetic assembly delivering up to 90 lbs of breakaway holding force for reliable overhead retention.
High Performance Hybrid (HPH) Design: Blends high-strength steel structural mounting with a smooth polymer cable saddle to eliminate conductor abrasion and jacket scoring.
Integrated Snap-Lock Cable Retainer: Secures cable bundles firmly within the hook cradle without requiring separate hook-and-loop straps or plastic zip ties.
TIA/EIA Compliant Bend Radius: Provides a continuous, curved base support that protects high-performance Cat6 and Cat6A data lines against impedance mismatch and bend-radius degradation.
Completely Removable and Reusable: Repositions easily along metallic pathways during project buildouts, tenant improvements, and temporary AV event installations.

Specifications
Product Type: Magnetic Cable Support J-Hook (90° Top / Vertical Mount)
Hook Size: 1.0 Inch (Size 16)
Bundle Capacity: Up to 20 Cat5e / Cat6 4-pair UTP cables, or up to 10 Cat6A cables
Magnet Model: MAG420 Neodymium Rare Earth Pot Magnet
Magnetic Breakaway Strength: Up to 90 lbs (holding force varies based on metal thickness, coatings, and surface orientation)
Mounting Configuration: Factory assembled to a 90-degree angled bracket
Material Composition: Engineered High-Grade Polypropylene Saddle over Galvanized Steel Bracket
Latch Mechanism: Integrated Snap-Lock Safety Arm
Color / Finish: Blue (BL)
Standards Compliance: RoHS Compliant; supports TIA-568-C and TIA-569-C pathway standards
Box Contents: 1x Platinum Tools 1" Top Mount Magnetic HPH J-Hook (HPH16MV-10BL-1)
Dimensions (L x W x H): ~2.50" x 1.75" x 4.75"
Shipping Dimensions (L x W x H): ~5.50" x 3.50" x 2.25"
Weight: 0.33 lbs
