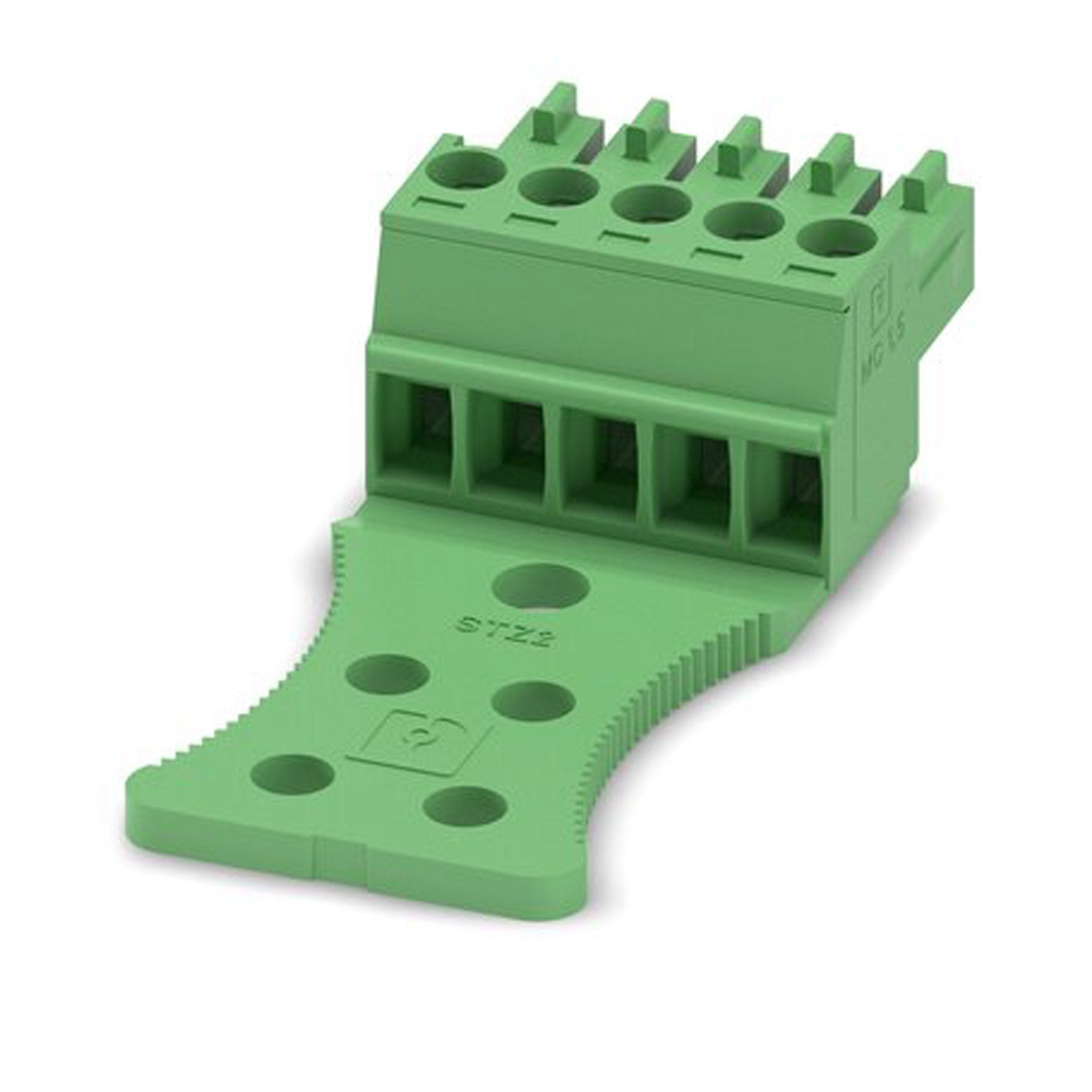

Phoenix Contact 1767623 3.5mm 28-16AWG 5-Position Screw Pluggable Terminal Block

The Phoenix Contact 1767623 3.5mm 5-Position Screw Pluggable Terminal Block has a 28-16AWG wire gauge, a 160 V voltage rating, and an 8A current rating. It features screw termination style and a compact size of 11.6mm x 17.5mm x 41mm, making it an ideal solution for cramped spaces. This terminal block is RoHS 2011/65/EU compliant and ensures reliable connections. Makes it easy to install in any application.

Manufacturer: Phoenix Contact

Product: 5-Position Terminal Block Plug, Female Sockets, 3.50mm Pitch

Model: 1767623

Type: Terminal Block Plug

Application: Industrial electronics, including Ex or rail sector applications

Special Features: 5-position plug with 3.50mm pitch; free-hanging (in-line) mounting; screw connection with rising cage clamp; 180° wire entry; green color; suitable for wire sizes 14-30 AWG; rated for 8A at 300V (UL) and 8A at 320V (IEC); housing made of polyamide (PA), UL94 V-0 flammability rating; includes strain relief; screw size M2; torque 0.22-0.25 Nm (1.9-2.2 lb-in); wire strip length 7mm
