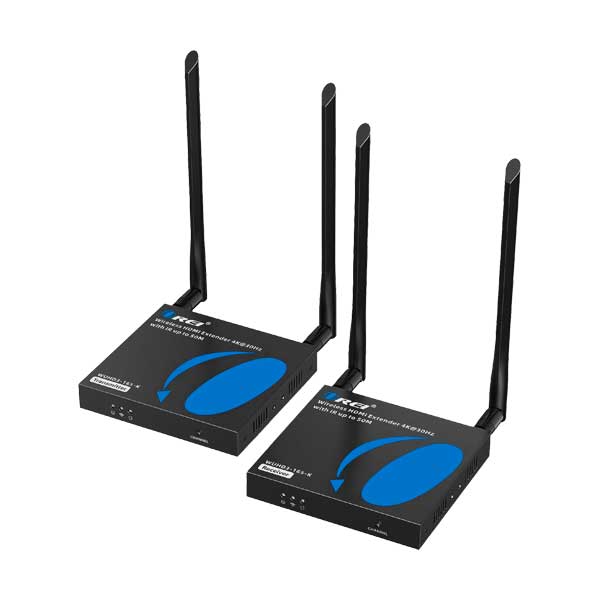

OREI Wireless HDMI Extender (Loop, IR) | 4K@30hz | 165ft | WUHD3-165-K

Experience wireless 4K video freedom with the OREI Wireless HDMI Extender. This compact, plug-and-play system transmits crystal-clear Ultra HD signals up to 165 feet using advanced 5GHz technology with minimal latency. Perfect for conference rooms, classrooms, and home theaters, it eliminates cable clutter while delivering reliable, interference-free streaming. Built for continuous operation with multi-unit compatibility, firmware upgradability, and robust ESD protection.

Features
Ultra HD Wireless Transmission: Extends clear 4K@30Hz and 1080p video signals wirelessly up to 65 feet (20 meters) direct line-of-sight.
ipcolor STREAM Architecture: Utilizes dedicated 5.18–5.24 GHz wireless frequency channels for low-latency (100–250ms), anti-interference AV streaming.
Multi-Kit SSID Pairing: Integrated push-button channel switching and SSID pairing allow multiple units to operate in the same area without cross-talk.
Ultra-Compact Dongle Profile: Male HDMI connectors plug directly into source devices and displays, eliminating bulky tabletop enclosures.
Continuous Duty-Cycle: Engineered with ESD discharge protection and efficient thermal management for stable 24/7 continuous operation.
Firmware Upgradable: Integrated Micro-USB ports provide convenient 5V/1A power delivery and field firmware maintenance.

Specifications
HDMI Compliance: HDMI 1.4 / HDMI 2.0 (Video bandwidth: 10.2 Gbps – 18 Gbps)
HDCP Compliance: HDCP 1.4 / HDCP 2.2
Supported Resolutions: 3840×2160 @ 24/30Hz (RGB, YUV 4:4:4, YUV 4:2:2), 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920×1200 @ 60Hz
Audio Format Support: LPCM / PCM 2.0
Wireless Frequency Band: 5G (5.180 GHz – 5.240 GHz across 4 selectable channels)
Transmission Latency: 100 ms – 250 ms
Maximum Range: Up to 65 feet (20 meters) Line of Sight
Transmitter Connectivity: 1× HDMI Type-A (19-pin Male Input), 1× Micro-USB (5V Power & Firmware)
Receiver Connectivity: 1× HDMI Type-A (19-pin Male Output), 1× Micro-USB (5V Power & Firmware)
Power Requirements: DC 5V/1A (via Micro-USB); Power Consumption: TX ≤ 4.5W, RX ≤ 3.5W
Housing Material: ABS Plastic (Black)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Operating Humidity: 0% to 90% RH (non-condensing)
ESD Protection: IEC61000-4-2 Level 3 (±8kV air discharge, ±4kV contact discharge)
Product Dimensions (L x W x H):
Transmitter: 9.05 in × 1.58 in × 0.59 in (230 mm × 40.2 mm × 15 mm)
Receiver: 9.05 in × 1.58 in × 0.59 in (230 mm × 40.2 mm × 15 mm)
Weight:
Transmitter: 0.15 lbs
Receiver: 0.12 lbs
Combined Net Weight: 0.27 lbs
