OREI Wireless HDMI Extender | 4K@30hz | 65ft | WUHD3-66M-K

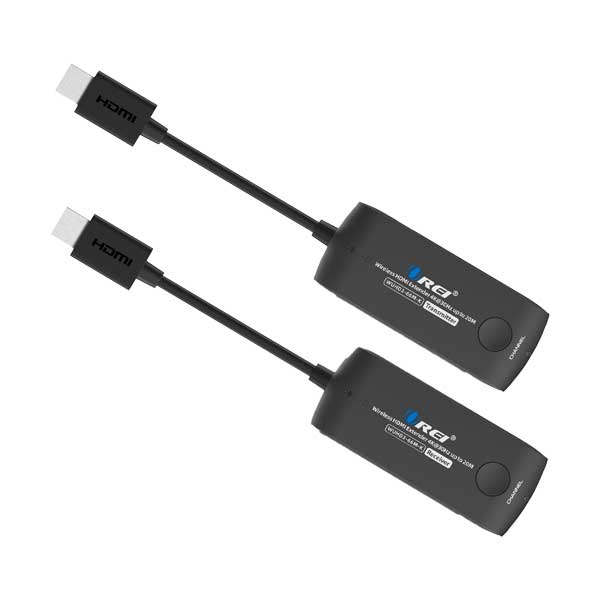

The OREI WUHD3-66M-K is a wireless HDMI extender that transmits 4K@30Hz video signals up to 65 feet using dedicated 5GHz technology. Featuring ipcolor STREAM architecture, this compact dongle-style system connects directly to HDMI ports on source devices and displays, eliminating cable clutter and in-wall wiring. With low latency (100–250ms), multi-unit SSID pairing, and 24/7 continuous operation support, it suits conference rooms, classrooms, and home theaters. The kit includes a transmitter and receiver with firmware upgrade capability via Micro-USB. Engineered for signal stability and ESD protection, it supports 4K, 1080p, and 720p resolutions with HDMI 2.0 and HDCP 2.2 compliance.

Features
Ultra HD Wireless Transmission: Extends clear 4K@30Hz and 1080p video signals wirelessly up to 65 feet (20 meters) direct line-of-sight.
ipcolor STREAM Architecture: Utilizes dedicated 5.18–5.24 GHz wireless frequency channels for low-latency (100–250ms), anti-interference AV streaming.
Multi-Kit SSID Pairing: Integrated push-button channel switching and SSID pairing allow multiple units to operate in the same area without cross-talk.
Ultra-Compact Dongle Profile: Male HDMI connectors plug directly into source devices and displays, eliminating bulky tabletop enclosures.
Continuous Duty-Cycle: Engineered with ESD discharge protection and efficient thermal management for stable 24/7 continuous operation.
Firmware Upgradable: Integrated Micro-USB ports provide convenient 5V/1A power delivery and field firmware maintenance.

Specifications
HDMI Compliance: HDMI 1.4 / HDMI 2.0 (Video bandwidth: 10.2 Gbps – 18 Gbps)
HDCP Compliance: HDCP 1.4 / HDCP 2.2
Supported Resolutions: 3840×2160 @ 24/30Hz (RGB, YUV 4:4:4, YUV 4:2:2), 1080p @ 50/60Hz, 720p @ 50/60Hz, 1920×1200 @ 60Hz
Audio Format Support: LPCM / PCM 2.0
Wireless Frequency Band: 5G (5.180 GHz – 5.240 GHz across 4 selectable channels)
Transmission Latency: 100 ms – 250 ms
Maximum Range: Up to 65 feet (20 meters) Line of Sight
Transmitter Connectivity: 1× HDMI Type-A (19-pin Male Input), 1× Micro-USB (5V Power & Firmware)
Receiver Connectivity: 1× HDMI Type-A (19-pin Male Output), 1× Micro-USB (5V Power & Firmware)
Power Requirements: DC 5V/1A (via Micro-USB); Power Consumption: TX ≤ 4.5W, RX ≤ 3.5W
Housing Material: ABS Plastic (Black)
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Operating Humidity: 0% to 90% RH (non-condensing)
ESD Protection: IEC61000-4-2 Level 3 (±8kV air discharge, ±4kV contact discharge)
Transmitter: 9.05 in × 1.58 in × 0.59 in
Receiver: 9.05 in × 1.58 in × 0.59 in
Transmitter: 0.15 lbs
Receiver: 0.12 lbs
Combined Net Weight: 0.27 lbs
