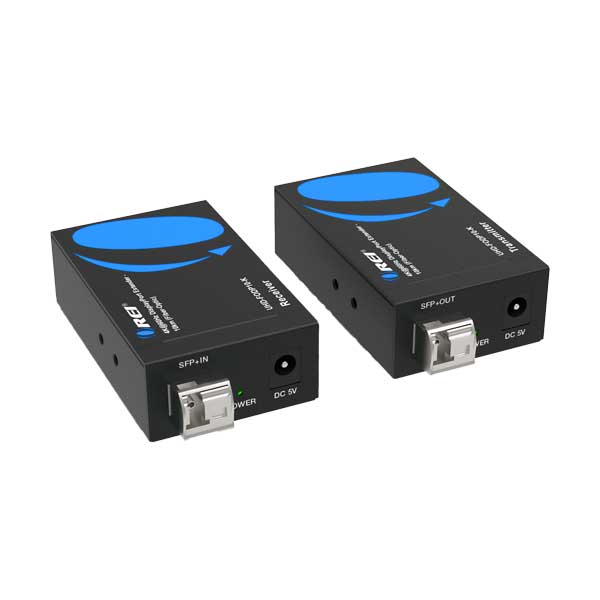

OREI High-Performance 4K@60hz DisplayPort Over Fiber Extender | 10km | UHD-FODP10-K

The OREI UHD-FODP10-K is a professional-grade DisplayPort 1.4 fiber optic extender designed to transmit uncompressed 4K@60Hz video and lossless multi-channel audio up to 10 kilometers over single-mode fiber with zero latency and complete EMI/RFI immunity. Perfect for control rooms, broadcast facilities, and mission-critical installations, it supports full HDR pass-through (HDR10+, Dolby Vision, HLG), Dolby Atmos surround sound, and 18 Gbps bandwidth via SFP modules. The compact, mountable enclosure ensures seamless integration into any professional AV infrastructure while maintaining HDCP 2.3 compliance and intelligent EDID management for reliable display handshaking.

Features
Extreme Long-Distance Extension: Extends uncompressed DisplayPort video and multi-channel audio up to 10 km (6.2 miles) over single-mode fiber or up to 300 m (1,000 ft) over OM4 multi-mode fiber.
Uncompressed 4K Ultra-HD Clarity: Delivers pristine 4K@60Hz (4:4:4) and 2K@60Hz video across an 18 Gbps bandwidth pipeline without compression artifacts or transmission lag.
Total EMI/RFI Immunity: Optical fiber transmission completely isolates signals from electrical interference, ground loops, and noisy industrial plant environments.
Full Dynamic HDR Pass-Through: Preserves deep contrast ratios and expanded color gamuts with native pass-through for HDR10+, Dolby Vision, and HLG.
Lossless Cinema-Grade Audio: Seamlessly routes high-bitrate surround sound, including Dolby Atmos, Dolby TrueHD, DTS:X, DTS-HD Master Audio, Dolby Digital 5.1, and 7.1-channel uncompressed LPCM.
Intelligent EDID Management: Direct EDID handshake transfer from the display receiver back to the host transmitter guarantees immediate display recognition and stable sync.
DisplayPort 1.4a & HDCP 2.3 Ready: Fully compatible with legacy and modern protected digital media streams, supporting HBR3, HBR2, HBR, and RBR transmission rates.
Compact, Mountable Enclosure: Low-profile metal housing integrates cleanly behind flat panels, under conference tables, or within standardized equipment racks.

Specifications
DisplayPort Standard: DisplayPort 1.4a / 1.4
HDCP Compliance: HDCP 2.3, HDCP 2.2, HDCP 1.x
Video Bandwidth: Up to 18 Gbps
DisplayPort Link Rates: HBR3 (8.1 Gbps), HBR2 (5.4 Gbps), HBR (2.7 Gbps), RBR (1.62 Gbps)
Maximum Video Resolutions: 4K@60Hz (3840×2160 / 4096×2160), 2K@60Hz, and all standard VESA formats
Maximum Transmission Distances:
Single-Mode Fiber (SMF): Up to 10 km (6.2 miles)
OM4 Multi-Mode Fiber (MMF): Up to 300 m (1,000 ft)
Optical Transceiver Interface: SFP Module Slot (LC Duplex / Simplex connector compatible)
HDR Pass-Through Support: HDR10+, Dolby Vision, Hybrid Log-Gamma (HLG)
Audio Format Support: LPCM 7.1CH, Dolby Digital 5.1, Dolby TrueHD, Dolby Atmos, DTS-HD Master Audio, DTS:X
EDID Functionality: Bidirectional EDID transmission from Receiver (RX) to Transmitter (TX)
Transmitter (TX) Connectors: 1× DP In (Female), 1× SFP Slot (Optical Out), 1× DC 5V Power Jack
Receiver (RX) Connectors: 1× DP Out (Female), 1× SFP Slot (Optical In), 1× DC 5V Power Jack
Power Supply: 5V DC power adapter (included)
