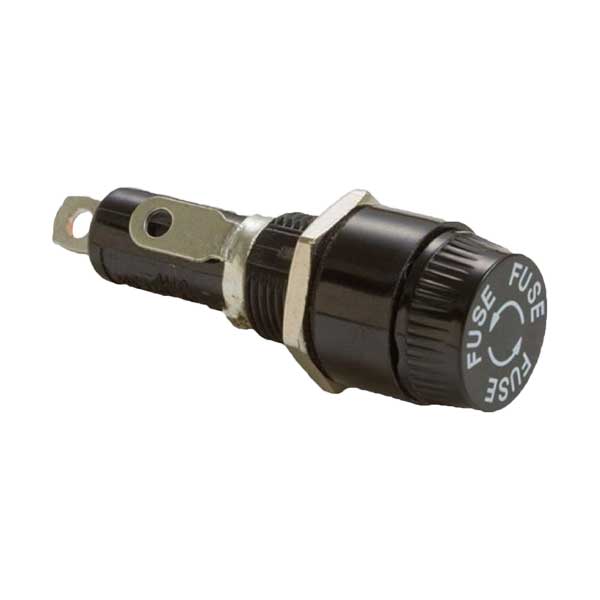

OptiFuse Panel Mount Fuse Holder for 6.3x32mm UL 30A (PMA-KB-01H-SOS-BP)

The OptiFuse PMA-KB-01H-SOS is a panel-mounted fuse holder designed to accommodate 1/4" x 1-1/4" (6.3 x 32mm) electronic glass and ceramic fuses. It includes a bayonet-style knob cap with a finger release mechanism that simplifies fuse replacement. Featuring solder lug terminals, this holder supports up to 30A current and 250V AC voltage. Built with a durable phenolic body, it is suited for high-current and vibration-prone environments. The product is cURus approved, RoHS compliant, and meets California Proposition 65 standards, with a reliable operating range from -30°C to 85°C.

Features
Designed for 1/4" x 1-1/4" (6.3 x 32mm) fuses.
Knob/bayonet cap for easy access and replacement.
Shock-safe design with a finger release.
Constructed with a phenolic frame and cap.
Has solder lug terminals for termination.
Suitable for higher current applications or those with a lot of vibration.
cURus agency approved.
RoHS compliant.
Meets California Proposition 65 standards.

Specifications
Accessory Type: Panel-mounted fuse holder.
Fuse Type: Electronic glass and ceramic fuses.
Fuse Size: 1/4" x 1-1/4" (6.3 x 32mm).
Current Rating: 30A.
Voltage Rating: 250V AC.
Termination Style: Solder Lug.
Number of Circuits: 1.
Mounting: Panel Mount.
Panel Thickness: 0.5 ~ 6.5mm.
Body Material: Phenolic.
Flammability Rating: UL94V-1.
Operating Temperature: -30°C to 85°C.
Weight: 0.2 lbs (3.2 oz).
