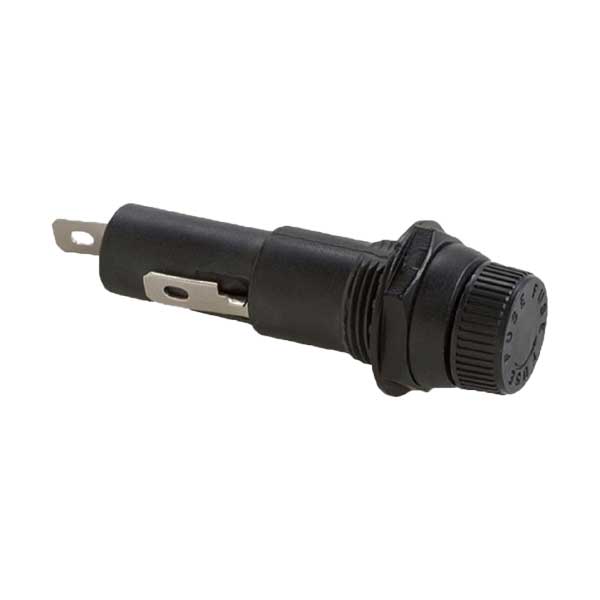

OptiFuse Panel Mount Fuse Holder for 6.3x32mm UL 15A (PMA-KS-06-Q1S-BP)

The PMA-KS-06-Q1S is a panel-mounted fuse holder designed for 6.3 x 32mm (1/4" x 1-1/4") fuses, rated for 15A and 250VAC. Ideal for electronic devices, appliances, and lighting systems, it features a shock-safe construction and a screw cap that protects against water and condensation. Equipped with a finger release mechanism, this holder allows for easy, tool-free fuse replacement. It includes 0.187” quick-connect tabs and is made from phenolic material compliant with UL94V-1 standards, ensuring reliable and safe performance in panel installations.

Features
Shock-safe design
Screw cap provides resistance to water and condensation
Finger release mechanism for tool-free fuse replacement
Comes with 0.187” quick-connect tabs

Specifications
Voltage Rating: 250VAC
Current Rating: 15A
Mounting Type: Panel Mount
Fuse Size: 6.3 x 32 mm (1/4" x 1-1/4")
Body Material: Phenolic, UL94V-1 rated
Connection: 0.187" Quick-Connect Tabs
Weight: 0.0046 lbs (based on 2.1g gross weight)
