OptiFuse Panel Mount Fuse Holder for 5x20mm UL 10A (PMC-KS-01-SOS-BP)

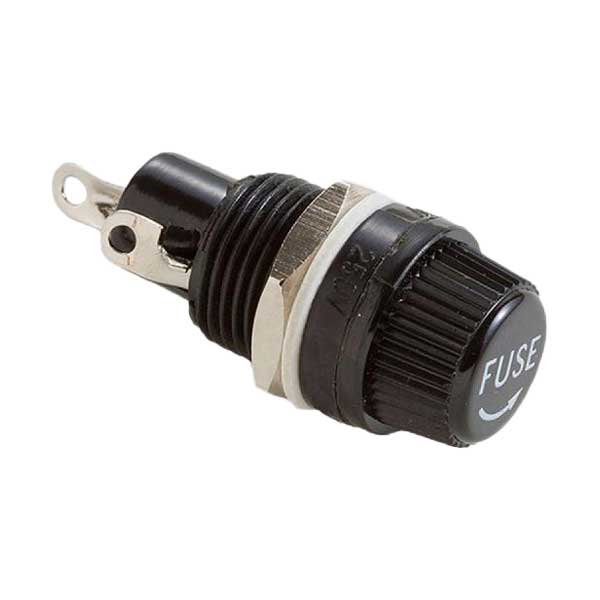

The OptiFuse PMC-KS-01-SOS is a panel-mount fuse holder crafted for 5x20mm glass and ceramic fuses, supporting up to 10A at 250V AC. It features solder lug terminals for a dependable connection and a knob-style screw cap that enables easy fuse changes without tools. Designed to mount securely on panels up to 4.5mm thick, its body and cap are constructed from UL94V-2 rated phenolic material, while the contacts are nickel-plated brass to ensure conductivity and corrosion resistance. This cURus-approved fuse holder offers reliable protection with a compact design and IP40 ingress protection.

Features
Knob-type screw cap: Allows for easy and tool-free fuse replacement.
Solder terminals: Provides a reliable and secure electrical connection.
Panel-mount design: Can be securely mounted to a panel with a maximum thickness of 4.5mm.
Durable materials: The body and cap are made of phenolic material with a UL94V-2 flammability rating.
Nickel-plated brass contacts: Ensures good conductivity and corrosion resistance.
cURus approved: Meets certain safety and performance standards.

Specifications
Series: PMC-KS-01-SOS
Accessory Type: Panel-mounted fuse holder
Fuse Type: Cartridge, specifically 5mm x 20mm electronic glass and ceramic fuses
Electrical Rating: 10A, 250V AC
Number of Circuits: 1
Mounting: Panel Mount with screw-in cap
Terminal Style: Solder Lug
Body Material: Phenolic (UL94V-2 flame rated)
Contact Material: Brass
Contact Plating: Nickel
Panel Thickness: Max. 4.5mm
Body Dimensions: 0.59" diameter x 1.44" length (15mm x 36.6mm)
Mounting Hole Diameter: Ø13.2mm
Ingress Protection (IP) Rating: IP40
Weight (lbs): 0.021 lbs
