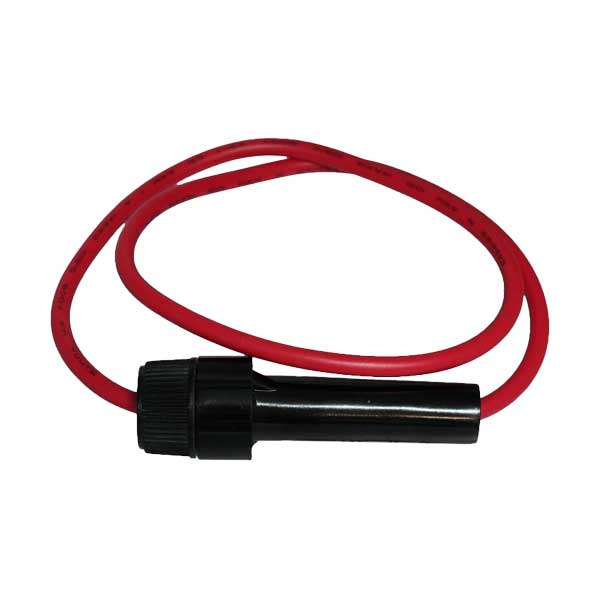

OptiFuse In-Line Fuse Holder for 6.3x32mm UL 12AWG 30A (LPA-24B-12R-BP)

The OptiFuse LPA-24B-12R is a reliable in-line fuse holder designed for 6.3mm x 32mm (¼" x 1¼") glass or ceramic fuses. Suitable for electrical systems, it supports both AC (up to 250VAC) and DC (up to 32VDC) applications with a 30A current rating. It features 12 AWG wire leads and a phenolic body rated UL 94V-1 for flame resistance. Ideal for wire harness assemblies in electronic devices, appliances, and lighting circuits, this UL-recognized holder offers nickel-plated brass contacts and a bayonet cap for secure fuse installation. Dimensions are compact at 0.69 x 0.69 x 2.2 inches.

Features
For use with 6.3mm x 32mm (¼" x 1¼") glass and ceramic fuses
In-line fuse holder design, ideal for situations without surface-mounting options
Suitable for wire harness assemblies in various electronic equipment
Made with a phenolic body (UL Flame: 94V-1 rated)
Contacts are nickel-plated brass
UL recognized (cURus) for safety compliance
Black body with red wire leads

Specifications
Current Rating: 30A
Voltage Rating: 250 VAC, 32 VDC
Fuse Size: 6.3mm x 32mm (¼" x 1¼")
Wire Size: #12 AWG
Wire Length: Loop – 6.3 inches (160mm)
Operating Temperature: -30°C to +65°C
Body Material: Phenolic (UL Flame: 94V-1)
Contacts: Nickel Plated Brass
Cap: Bayonet cap
Approvals: cURus
Dimensions (LxWxH): 0.69 x 0.69 x 2.2 inches
Weight: 0.408 ounces
