OptiFuse In-Line Fuse Holder for 5x20mm UL 12AWG 20A (LPC-24B-12R-BP)

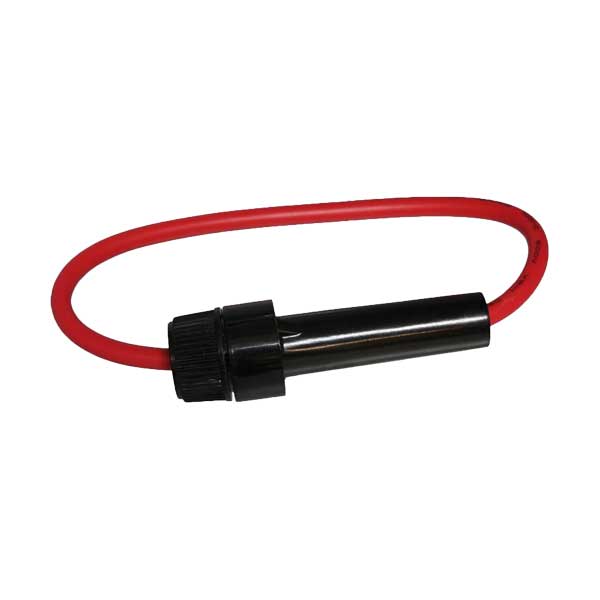

The OptiFuse LPC-24B-12R is an in-line fuse holder compatible with 5x20mm cartridge fuses, ideal for applications where surface mounting is unsuitable. It features a black phenolic construction with nickel-plated brass contacts and includes pre-wired #12 AWG red leads approximately 6.3 inches long. Equipped with a bayonet cap, it allows for straightforward fuse replacement. Designed for use in electronic devices, appliances, and lighting circuits, it supports both AC (up to 250V) and DC (up to 32V) scenarios with a maximum current of 20A. This UL-recognized holder operates between -30°C and +65°C, ensuring reliable performance.

Features
Designed for 5mm x 20mm fuses.
In-line, free-hanging mounting type.
Features a bayonet cap for easy fuse changes.
Includes pre-installed #12 AWG wire leads, which are red and approximately 6.3 inches long.
The body is constructed from phenolic material (UL Flame: 94V-1).
Contacts are nickel-plated brass.
Suitable for use in a variety of electronic equipment and appliances.

Specifications
Manufacturer Series: LPC-24
Maximum Current: 20A
AC Voltage Rating: 250V
DC Voltage Rating: 32V
Operating Temperature: -30°C to +65°C
Wire Size: #12 AWG
Wire Length: 6.3 inches (160mm) loop
Dimensions: 2.11" H x 0.69" W x 0.69" L
Approvals: UL recognized
Weight: 0.0255 lbs (0.408 oz).
