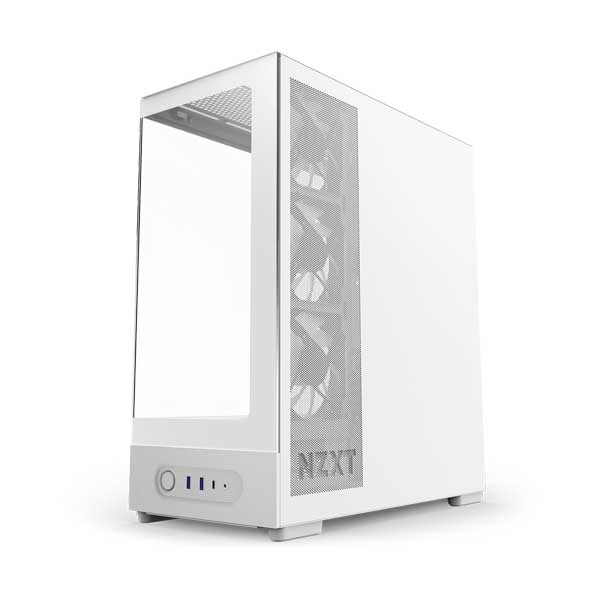

NZXT S5 RGB Deluxe Solid Steel Mid-Tower ATX Case with 5 RGB Fans Pre-Installed | White | CC-S51FW-D1

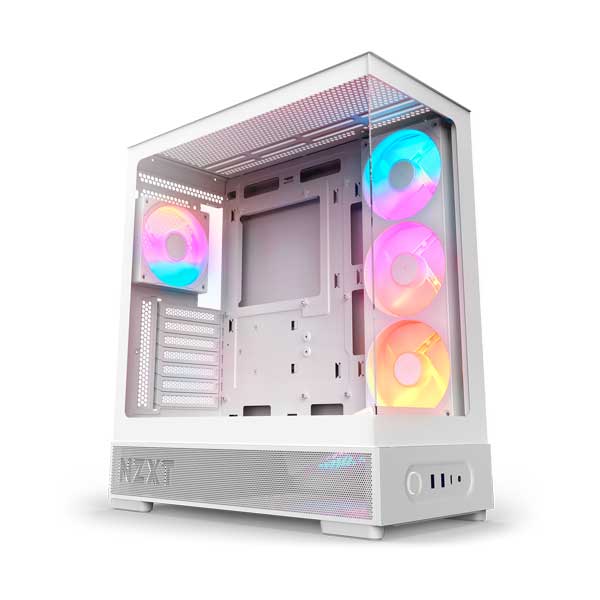

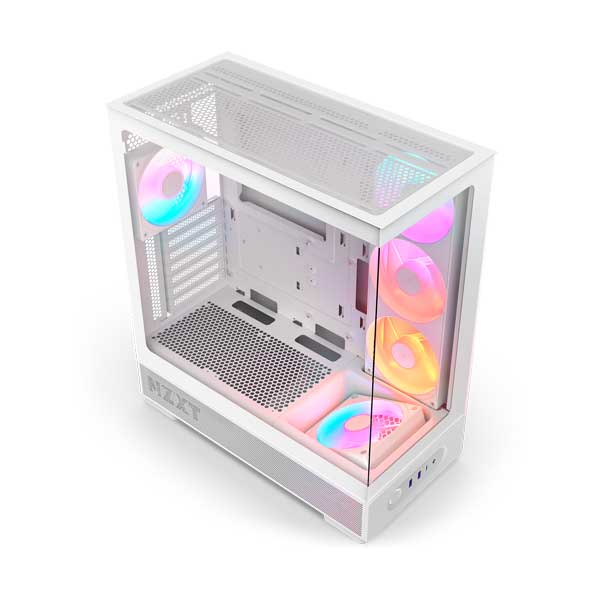

The NZXT S5 RGB Deluxe is a mid-tower ATX case built for high-performance gaming and workstation PCs. Featuring dual tempered glass panels and a solid steel frame, it delivers panoramic visibility of your components while maintaining excellent airflow. The case ships with five pre-installed RGB fans—a 360 mm side intake, a 120 mm angled bottom intake, and a 120 mm rear exhaust—all syncing directly to your motherboard without proprietary hubs.

With support for GPUs up to 415 mm, 360 mm radiators, and up to 10 total fans, the S5 RGB Deluxe scales from mid-range builds to high-end liquid-cooled systems. Tool-less panel access, removable dust filters, and modern front I/O including USB 3.2 Gen 2x2 Type-C make assembly and maintenance straightforward. Backed by a 2-year warranty, this white chassis combines style, thermal performance, and flexibility for serious PC builders.

Features
Panoramic Dual Tempered Glass: Front and left-side tempered glass panels join seamlessly to display internal hardware and lighting without structural corner pillars.
Factory-Installed 5-Fan RGB Array: Ships pre-configured with five ARGB fans across three units—a 360 mm single-frame reverse intake on the side, an angled 120 mm reverse intake at the bottom, and a 120 mm rear exhaust fan.
Targeted GPU Lower Intake: Integrates three bottom fan mounts, including a dedicated angled intake mount that drives ambient airflow directly into modern, high-TDP graphics cards.
Expansive 10-Fan & Radiator Capacity: Houses up to 10 x 120 mm fans and supports top-mounted liquid cooling radiators up to 360 mm while keeping five fan mounting locations open for expansion.
Standard Motherboard Sync: Connects directly to motherboard 4-pin PWM and 5V 3-pin ARGB headers, eliminating the need for specialized proprietary controller hubs.
Accommodates Full-Size Hardware: Provides clearance for graphics cards up to 415 mm long, CPU tower air coolers up to 162 mm tall, and ATX power supplies up to 200 mm in length.
High-Speed Front I/O Connectivity: Equips desktop setups with a 20 Gbps USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a combined 3.5 mm audio/headset jack.
Tool-Less Access & Dual Filtration: Utilizes tool-less panel removal, rear cable routing space, and removable top and bottom PVC mesh dust filters for quick assembly and routine maintenance.

Specifications
Enclosure Type: Compact Mid-Tower ATX Case
Chassis Materials: SGCC Steel, Tempered Glass, Plastic
Internal Volume: 42.8 Liters
Motherboard Form Factor Support: ATX, Micro-ATX, Mini-ITX
Back-Connect Motherboard Support: Not supported (Standard ATX layout only)
GPU Clearance: Up to 415 mm
CPU Cooler Clearance: Up to 162 mm
Power Supply (PSU) Clearance: Standard ATX up to 200 mm
Radiator Support:
Top: Up to 360 mm
Rear: Up to 120 mm
Total Fan Capacity: Up to 10 x 120 mm fans
Included Fan Configuration (5 Fans Total):
Side Intake: 1x 360 mm single-frame RGB reverse fan (3x 120 mm integrated unit)
Bottom Intake: 1x 120 mm RGB reverse fan (angled mount)
Rear Exhaust: 1x 120 mm RGB fan
Fan Interface / Pinout: Standard 4-pin PWM & 5V 3-pin ARGB
Front Panel I/O:
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
1x 3.5 mm Headset Audio Jack (headphone/mic combo)
Dust Filtration: Removable PVC mesh filters (Top and Bottom), Steel mesh side panel
Included Accessories: NZXT S5 RGB Deluxe Chassis (White), 1x Pre-installed 360 mm RGB Reverse Fan, 1x Pre-installed 120 mm RGB Reverse Fan, 1x Pre-installed 120 mm RGB Fan, Accessory Installation Pack, User Guide
Manufacturer Warranty: 2 Years
Dimensions (L x W x H): 18.98 x 8.27 x 16.65 in
