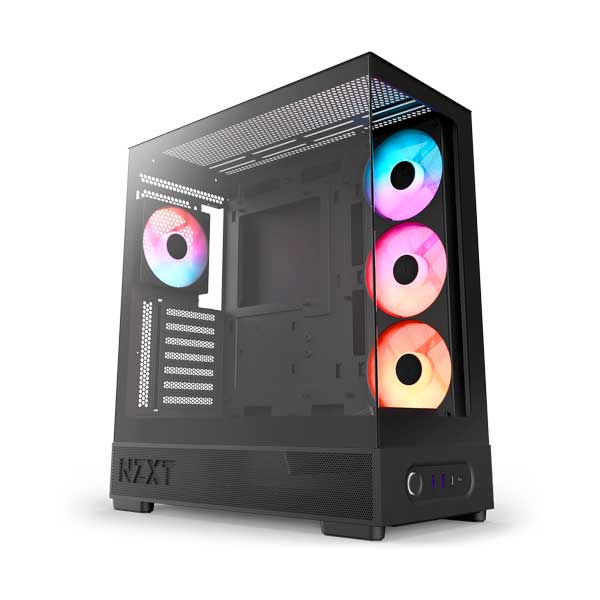

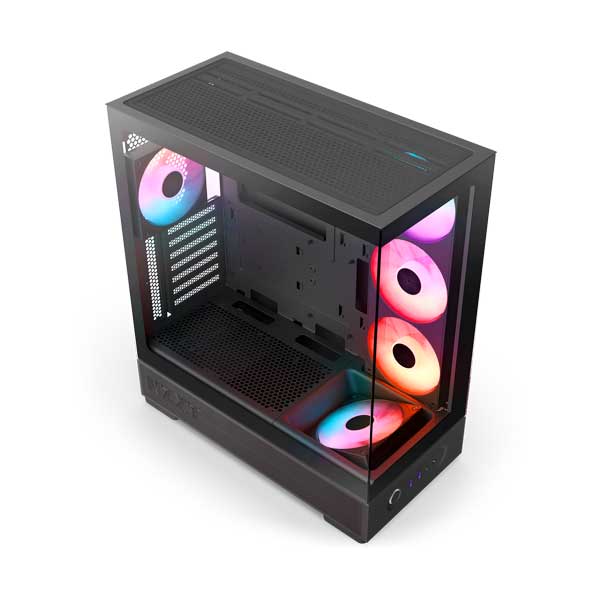

NZXT S5 RGB Deluxe Solid Steel Mid-Tower ATX Case with 5 RGB Fans Pre-Installed | Black | CC-S51FB-D1

The NZXT S5 RGB Deluxe is a high-performance mid-tower ATX case built for modern gaming and workstation PCs. Featuring dual panoramic tempered glass panels, a solid steel chassis, and five pre-installed addressable RGB fans, it delivers exceptional cooling and stunning aesthetics out of the box.

Designed with airflow efficiency in mind, the case includes a 360 mm side intake, angled 120 mm bottom intake for GPU cooling, and a rear 120 mm exhaust fan. With support for graphics cards up to 415 mm, liquid cooling radiators up to 360 mm, and up to 10 total 120 mm fans, it accommodates high-end components without compromise.

Setup is straightforward—the RGB fans connect directly to standard motherboard headers with no proprietary hub required. Tool-less panel access and removable dust filters make assembly and maintenance hassle-free. High-speed USB 3.2 Gen 2x2 Type-C connectivity and a 3.5 mm audio jack round out the front I/O.

Backed by a 2-year manufacturer warranty, the S5 RGB Deluxe combines premium build quality with practical cooling solutions for any demanding build.

Features
Panoramic Dual Tempered Glass: Front and left-side tempered glass panels join seamlessly to display internal hardware and lighting without structural corner pillars.
Factory-Installed 5-Fan RGB Array: Ships pre-configured with five ARGB fans across three units—a 360 mm single-frame reverse intake on the side, an angled 120 mm reverse intake at the bottom, and a 120 mm rear exhaust fan.
Targeted GPU Lower Intake: Integrates three bottom fan mounts, including a dedicated angled intake mount that drives ambient airflow directly into modern, high-TDP graphics cards.
Expansive 10-Fan & Radiator Capacity: Houses up to 10 x 120 mm fans and supports top-mounted liquid cooling radiators up to 360 mm while keeping five fan mounting locations open for expansion.
Standard Motherboard Sync: Connects directly to motherboard 4-pin PWM and 5V 3-pin ARGB headers, eliminating the need for specialized proprietary controller hubs.
Accommodates Full-Size Hardware: Provides clearance for graphics cards up to 415 mm long, CPU tower air coolers up to 162 mm tall, and ATX power supplies up to 200 mm in length.
High-Speed Front I/O Connectivity: Equips desktop setups with a 20 Gbps USB 3.2 Gen 2x2 Type-C port, two USB 3.2 Gen 1 Type-A ports, and a combined 3.5 mm audio/headset jack.
Tool-Less Access & Dual Filtration: Utilizes tool-less panel removal, rear cable routing space, and removable top and bottom PVC mesh dust filters for quick assembly and routine maintenance.

Specifications
Enclosure Type: Compact Mid-Tower ATX Case
Chassis Materials: SGCC Steel, Tempered Glass, Plastic
Internal Volume: 42.8 Liters
Motherboard Form Factor Support: ATX, Micro-ATX, Mini-ITX
Back-Connect Motherboard Support: Not supported (Standard ATX layout only)
GPU Clearance: Up to 415 mm
CPU Cooler Clearance: Up to 162 mm
Power Supply (PSU) Clearance: Standard ATX up to 200 mm
Radiator Support:
Top: Up to 360 mm
Rear: Up to 120 mm
Total Fan Capacity: Up to 10 x 120 mm fans
Included Fan Configuration (5 Fans Total):
Side Intake: 1x 360 mm single-frame RGB reverse fan (3x 120 mm integrated unit)
Bottom Intake: 1x 120 mm RGB reverse fan (angled mount)
Rear Exhaust: 1x 120 mm RGB fan
Fan Interface / Pinout: Standard 4-pin PWM & 5V 3-pin ARGB
Front Panel I/O:
1x USB 3.2 Gen 2x2 Type-C
2x USB 3.2 Gen 1 Type-A
1x 3.5 mm Headset Audio Jack (headphone/mic combo)
Dust Filtration: Removable PVC mesh filters (Top and Bottom), Steel mesh side panel
Included Accessories: NZXT S5 RGB Deluxe Chassis, 1x Pre-installed 360 mm RGB Reverse Fan, 1x Pre-installed 120 mm RGB Reverse Fan, 1x Pre-installed 120 mm RGB Fan, Accessory Installation Pack, User Guide
Manufacturer Warranty: 2 Years
Dimensions (L x W x H): 18.98 x 8.27 x 16.65 in
