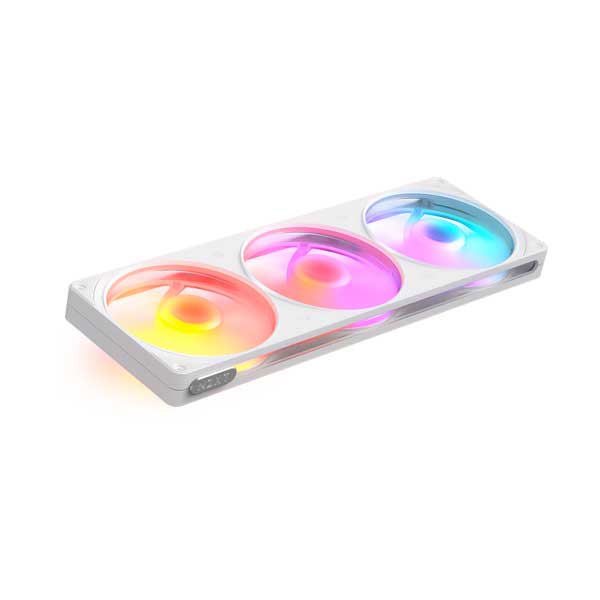

NZXT F360 RGB 360mm Single-Frame Case Fan | White | RF-R236U-WF

The NZXT F360 RGB White delivers premium 360mm cooling in one integrated unit. Three high-performance 120mm fans with 70.67 CFM airflow and 3.7 mmH₂O static pressure mount as a single assembly with just four screws and one cable connection. Twenty-four addressable RGB LEDs with side-view windows create synchronized lighting visible from any angle. Fluid dynamic bearings rated for 60,000+ hours ensure lasting reliability, while anti-vibration corners keep noise below 33.05 dBA. PWM control adjusts speeds up to 2,400 RPM, and compatibility with NZXT CAM or standard ARGB headers offers flexible customization. Backed by a 5-year warranty.

Features
Single-Frame Integrated Architecture: Integrates three 120mm fans into a rigid 360mm chassis that installs as a single unit with only four screws and one connection, drastically simplifying radiator mounting and cable management.
High-Static Pressure Thermal Delivery: Generates 3.7 mmH₂O static pressure and 70.67 CFM airflow per fan, driving concentrated cooling air through 360mm radiators and high-resistance front intake mesh.
24-LED Multi-Angle RGB Illumination: Houses 8 individually addressable LEDs per hub (24 total) paired with transparent side-view frame windows to create a continuous, synchronized light show visible from any chassis angle.
Unified 8-Pin Cable Connection: Consolidates PWM speed control and RGB lighting into a single 600 mm NZXT 8-pin harness, eliminating cable clutter and freeing up motherboard headers.
Acoustically Optimized PWM Control: Operates dynamically up to 2,400 RPM via PWM signaling, maintaining silent acoustics during routine workloads and capping at 33.05 dBA per fan at peak capacity.
Vibration-Dampened Construction: Molded rubber corner pads decouple the rigid frame from PC cases and radiator brackets to suppress harmonic resonance and mechanical rattle.
Long-Life Fluid Dynamic Bearings (FDB): Sealed, fluid-lubricated bearing cores are rated for over 60,000 hours of continuous runtime, ensuring dependable mechanical longevity.
Versatile CAM & Motherboard Ecosystem: Synchronizes lighting profiles and custom fan curves through NZXT CAM software (via an NZXT Control Hub) or connects directly to standard 5V ARGB motherboard headers using the included adapter cable.

Specifications
Fan Speed: Up to 2,400 ± 240 RPM (PWM Controlled)
Airflow Volume: 70.67 CFM per fan
Static Pressure: 3.7 mmH₂O per fan
Noise Level: 33.05 dBA per fan
Bearing Type: Fluid Dynamic Bearing (FDB)
Bearing Lifespan: 60,000 Hours
LED Configuration: 24 Addressable RGB LEDs (8 per fan hub) with clear side windows
Power & Signal Connectors: NZXT 8-pin Connector (includes Motherboard Adapter Cable)
Cable Length: 600 mm
Frame & Blade Construction: Single-frame integrated housing with silicone rubber anti-vibration corners
Color: Matte White
Manufacturer Warranty: 5 Years
Product Dimensions (L x W x H): 14.17 x 4.72 x 0.98 in
Product Weight: 1.23 lbs
