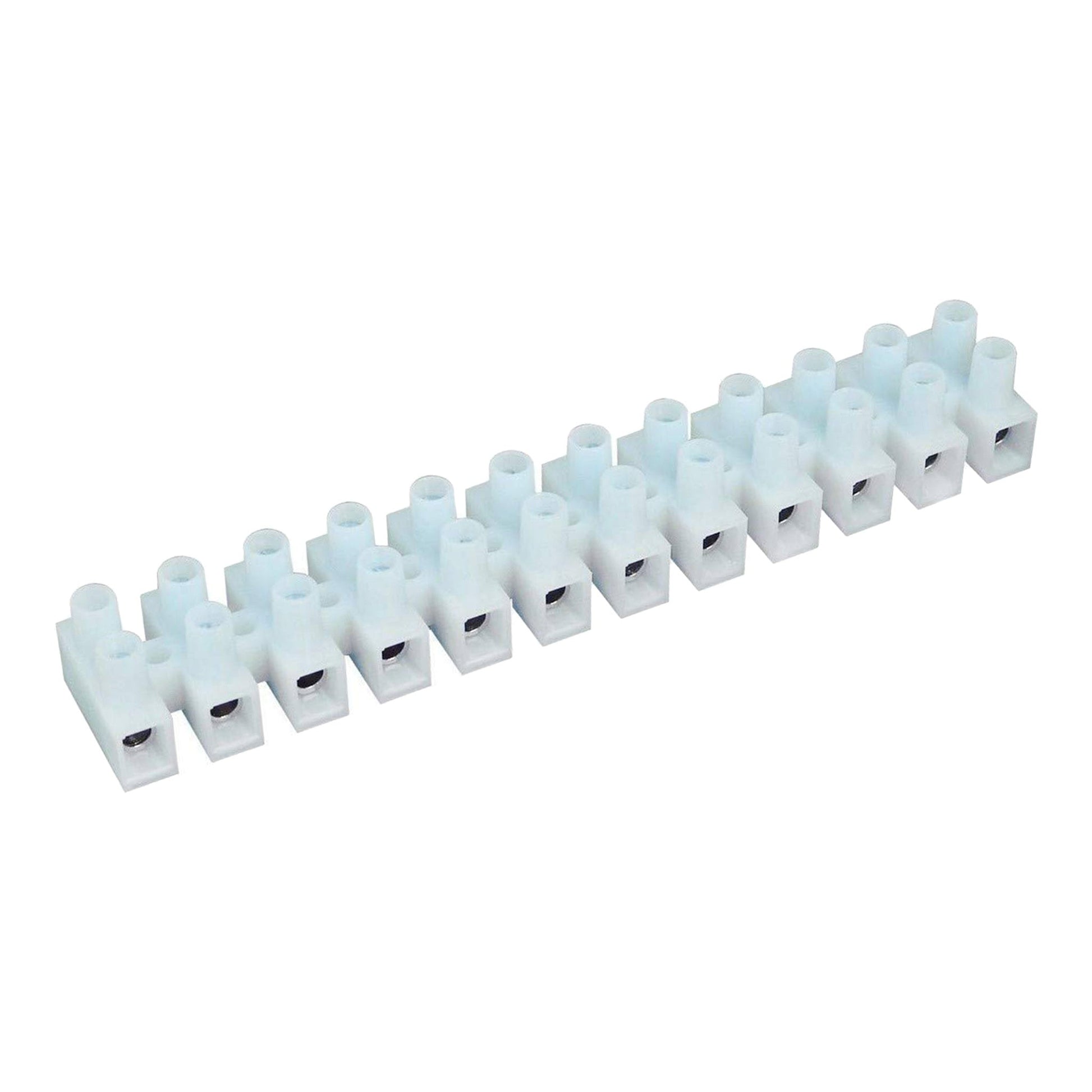

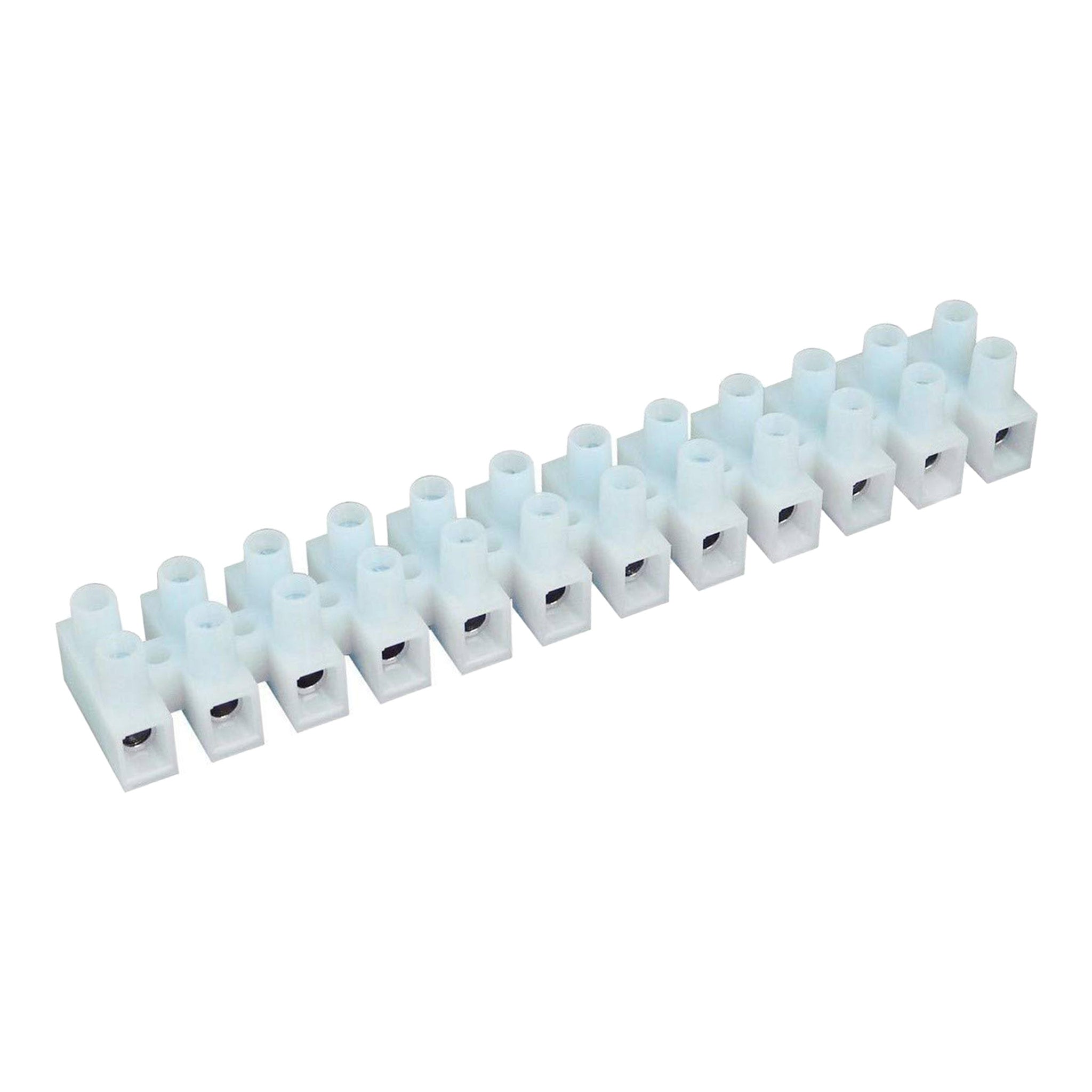

NTE Electronics 25−E2100−12 12-Position 300V 30A Euro Style Barrier Strip with 10mm Pitch

The NTE Electronics 25−E2100−12 Euro Style Barrier Strip 12-position terminal block has a 10mm pitch, 300V 30A rating, and is made of strong polyamide 66 material, compliant with ROHS. It offers a rated surge voltage of 6KV, a torque rating of 4.4 lb-in, and an 8mm wire strip length. Perfect for reliable connections of 18-10 AWG solid and stranded wire for commercial and industrial applications.

Rated Voltage 300V
Rated Current 30A
Wire Range −
Solid Wire (AWG) 18 − 10
Stranded Wire (AWG/mm2) 18 − 10
Rated Surge Voltage 6kV
Torque (Lb−in) 4.4
Screw Type M3
Wire Strip Length .315 (8mm)
