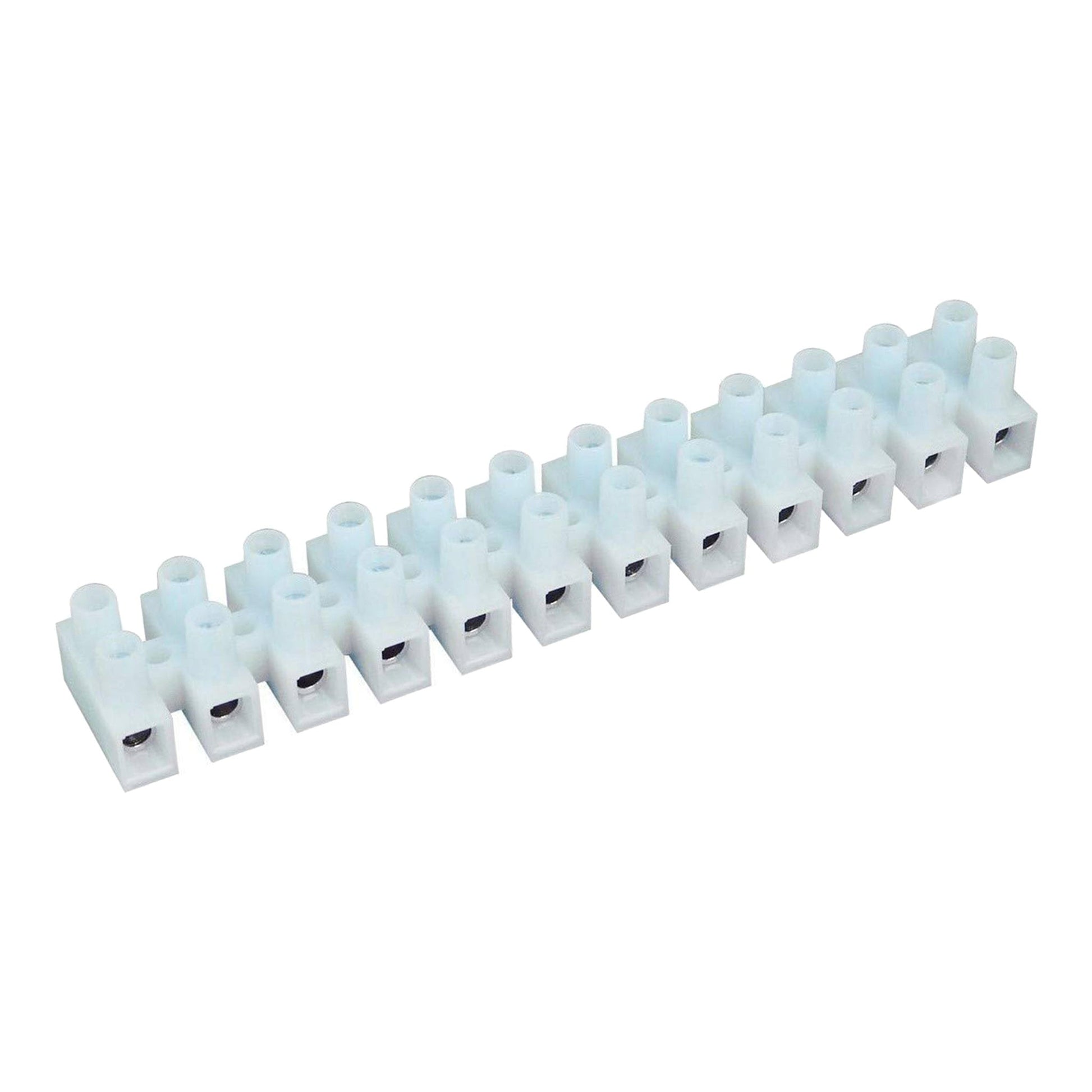

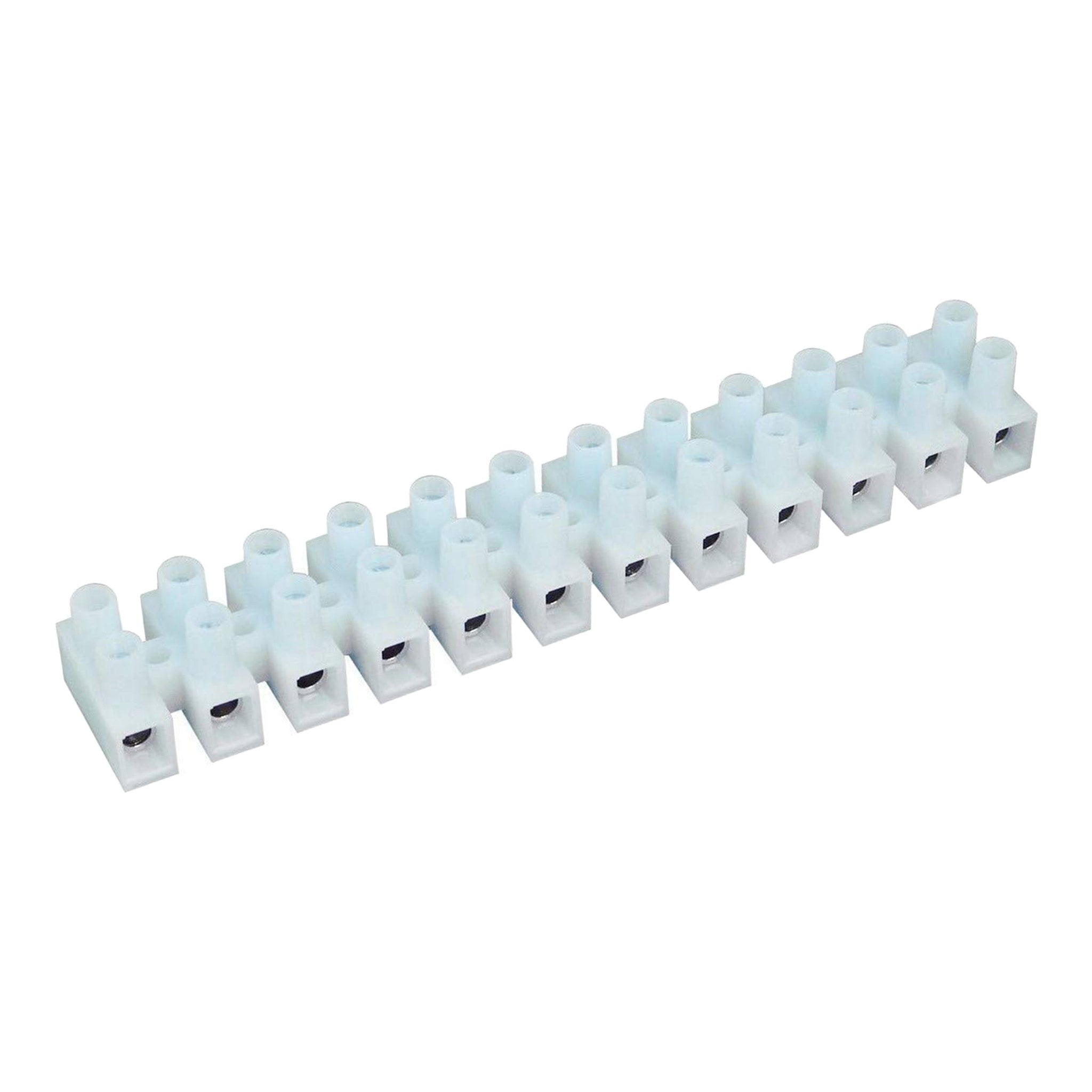

NTE Electronics 25-E2000-12 12-Position 300V 20A Euro Style Barrier Strip with 8.2mm Pitch

SKU: 25-E2000-12 MFR# 25-E2000-12

Sale price$2.29


Description

  • Euro Style Barrier Strip
  • 12-Position Terminal Block
  • 300V 20A
  • 8.2mm Pitch
  • Polyamide 66 Material
  • ROHS Compliant
This NTE Electronics Euro Style Barrier Strip is a reliable 12-position terminal block with a rated voltage of 300V and current of 20A. Constructed with ROHS Compliant polyamide 66 material, the 8.2mm pitch is designed to accommodate a range of solid and stranded wire from 20-12 AWG/mm2. The terminal block also features a rated surge voltage of 6kV and a maximum torque of 3.5 lb-in.
  • Rated Voltage 300V
  • Rated Current 20A
  • Wire Range −
  • Solid Wire (AWG) 20 − 12
  • Stranded Wire (AWG/mm2) 20 − 12
  • Rated Surge Voltage 6kV
  • Torque (Lb−in) 3.5
  • Screw Type M2.5
  • Wire Strip Length .315 (8mm)
