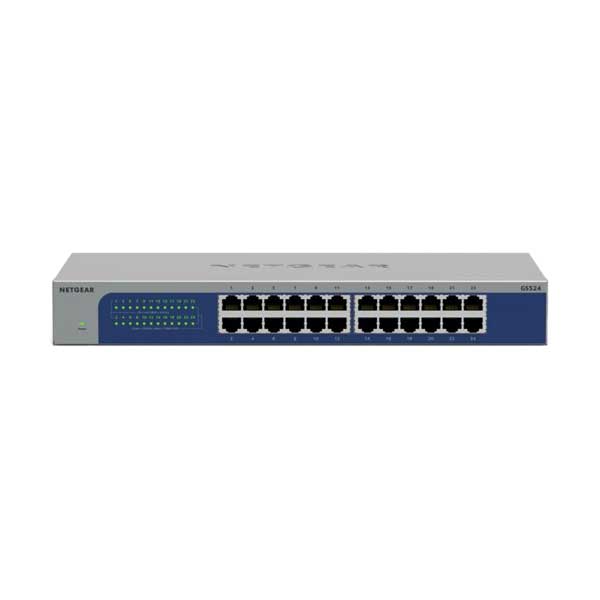

NETGEAR 24-Port Gigabit Ethernet Unmanaged Switch (GS524-300NAS)

The NETGEAR GS524-300NAS is a 24-port unmanaged Gigabit Ethernet switch designed for small and home office networks. It offers straightforward plug-and-play setup with no configuration required. Each of the 24 ports supports auto-sensing 10/100/1000 Mbps speeds, delivering consistent gigabit performance without bottlenecks. The switch features Energy Efficient Ethernet (IEEE 802.3az) to minimize power usage during low traffic periods. Its fanless, silent design suits noise-sensitive environments, while the robust metal enclosure ensures durability. Flexible mounting options include desktop, wall, or standard 19-inch rack installation, making it adaptable to various setups.

Features:
Unmanaged: Plug-and-play functionality with no software to install or configuration needed.
24 Gigabit Ethernet Ports: Provides 24 auto-sensing 10/100/1000 Mbps RJ-45 ports.
Energy Efficient Ethernet (IEEE 802.3az): Reduces power consumption when there is light traffic on an active port or when no link/activity is detected.
Fanless and Silent Operation: Ideal for noise-sensitive environments due to its fanless design.
Versatile Mounting Options: Can be installed on a desktop, mounted to a wall, or added to a standard 19-inch (44 mm) rack with the included hardware.
Reliable Performance: Delivers superior network performance at a non-blocking rate, ensuring true gigabit speed without compromise.
Metal Case: Durable and rugged metal casing for long-lasting performance.
Auto MDI/MDIX: Eliminates the need for crossover cables.
Jumbo Frame Support: Supports 9KB Jumbo Frames.
MAC Table Size: 8K
Packet Buffer Size: 512.5KB
IEEE 802.1p QoS: Yes
Desktop, wall, or rack mountable
Plug-and-play setup
Reliable, non-blocking gigabit speed performance
Durable metal casing
Limited Lifetime Hardware Warranty

Specifications:
Total Number of Network Ports: 24
Ethernet Technology: Gigabit Ethernet (10/100/1000Base-T)
Layer Supported: 2
Network Standards:
IEEE 802.3i
IEEE 802.3ab
IEEE 802.3az (Energy Efficient Ethernet)
IEEE 802.3p (QoS - Quality of Service)
Media Type Supported: Twisted Pair
Forwarding Rate: 14.88 Mpps
Switching Capacity: 48 Gb/s (non-blocking)
Power Consumption: 12W (maximum)
Input Voltage: 100-240 VAC, 50-60 Hz, 1.0A maximum input
Power Source: AC
Product Material: Metal
Form Factor: Desktop, Wall Mountable, Rack-mountable
Dimensions (W x D x H): 328 x 169 x 43 mm (12.9 x 6.7 x 1.7 inches)
Operating Temperature: 0° to 50°C (32° to 122°F)
Operating Humidity: 10%–90% relative humidity, noncondensing
MTBF (Mean Time Between Failures): 1,016,877 hours
Electromagnetic Compliance: KC Class A, CCC Class A, FCC part 15 Class A, RCM Class A, CE Class A, VCCI Class A, EAC.
Safety Agency Marks: UL listed (UL 1950) / cUL IEC 950 / EN 60950
Package Contents:
24-Port Gigabit Ethernet Switch (GS524)
Power Cord (varies by region)
Installation Guide
Wall/Rackmount Kit
Warranty: NETGEAR Limited Lifetime Hardware Warranty (requires product registration)
Weight (Approximate): 1.47 kg (3.24 lb)
UPC Code: 606449164763
